Description

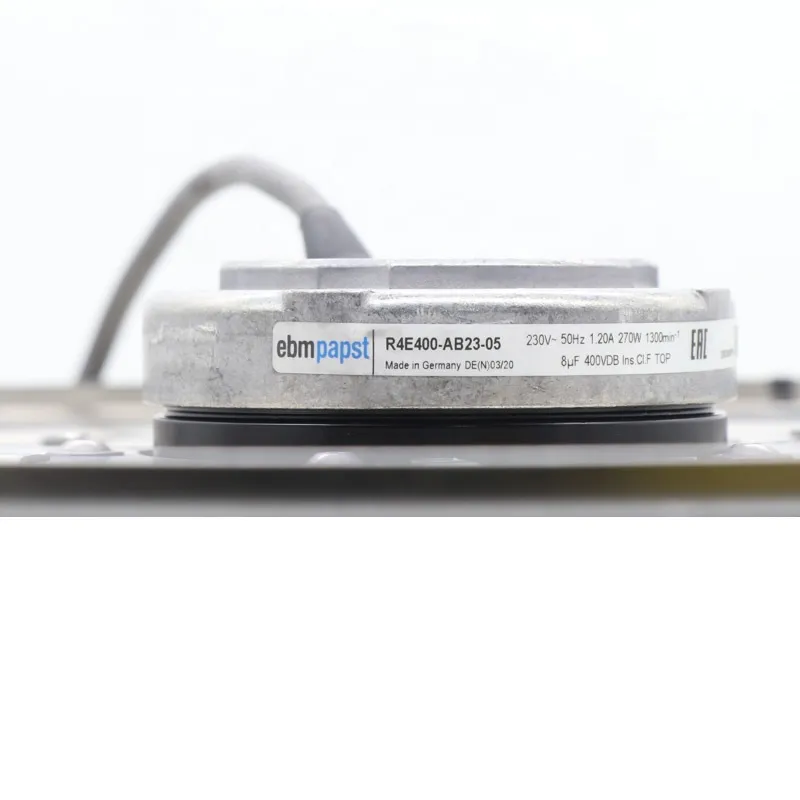

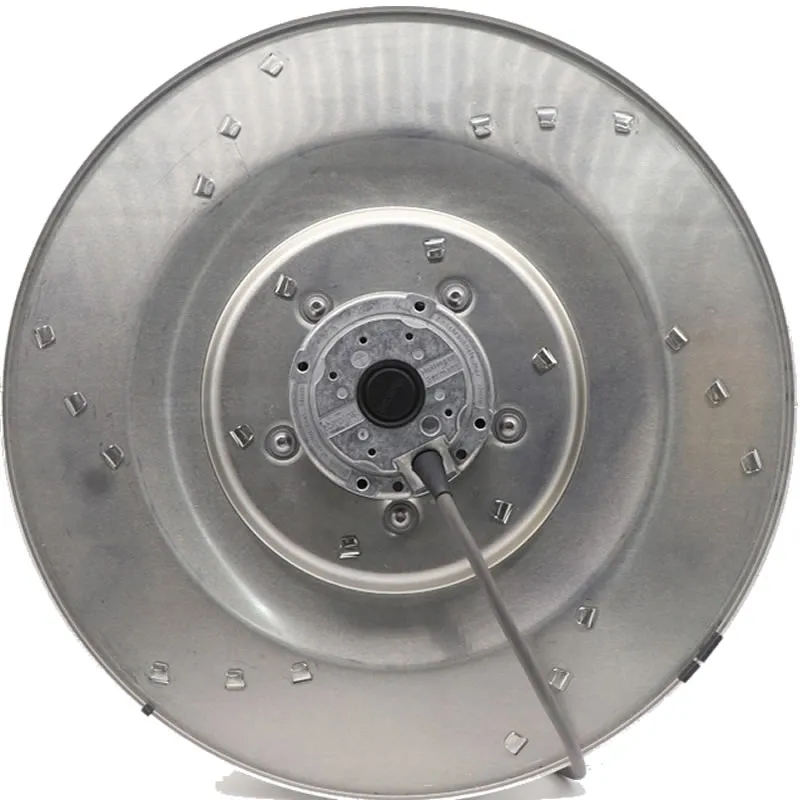

Motor M4E074-EI
Type:Centrifugal Fan
Speed: 1300min-1
Applicable Industries:Farms, Printing Shops, Construction works , Fresh air system centrifugal fan, air purification
Customized support:OEM, ODM
Electric Current Type:AC
Blade Material:Aluminum sheet
Mounting:FREE STANDING
Place of Origin:Germany
Brand Name:ebmpapst
Model Number:R4E400-AB23-05
Voltage:230(V)
Certification:complete certification
Warranty:1 Year
Nominal voltage:230V
Bearing Type:Ball Bearing
Power consumption:270(w)
current:1.2 A
Fan Size:400mm
Number of blades:6
Weight:5.1kg
1 Connection line silicone 4G 0.5 mm², 4 x brass lead tips crimped
2 Accessory part: inlet nozzle 54476-2-4013, not included in the standard scope of delivery; other inlet nozzles on request
3 Depth of screw max. 12 mm
