Description

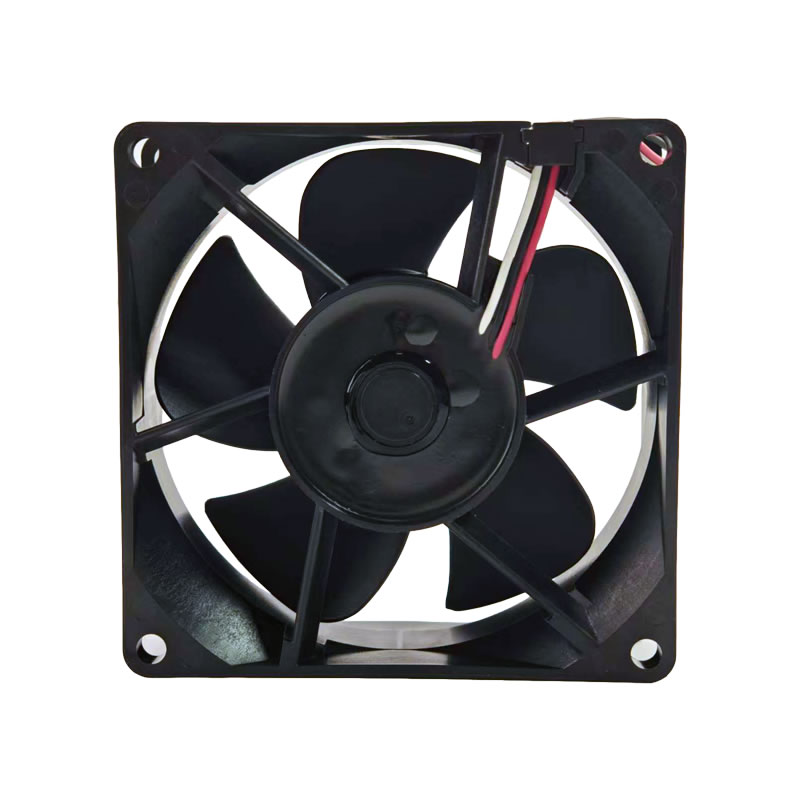

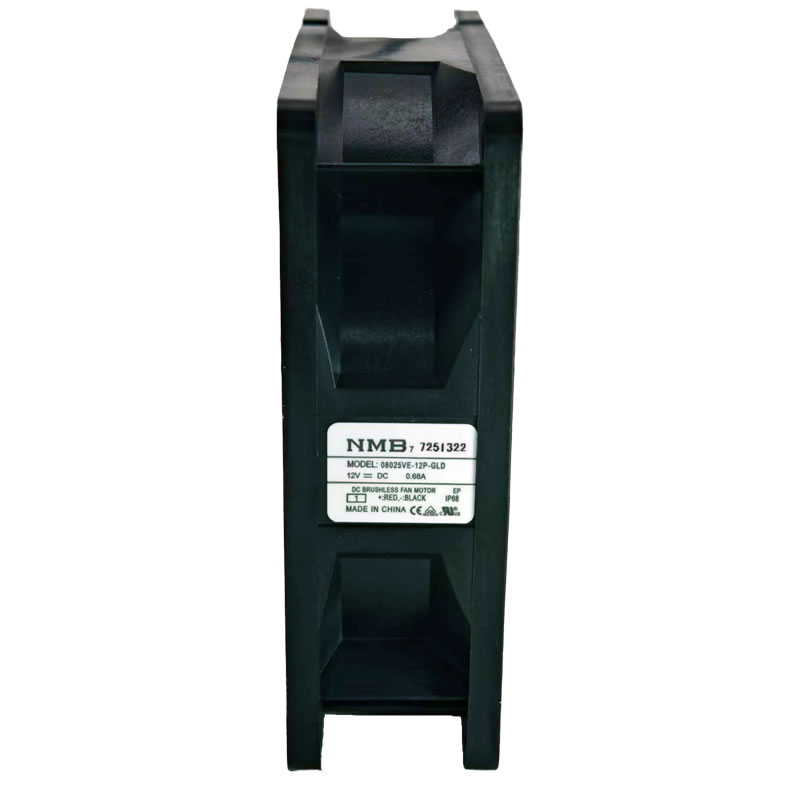

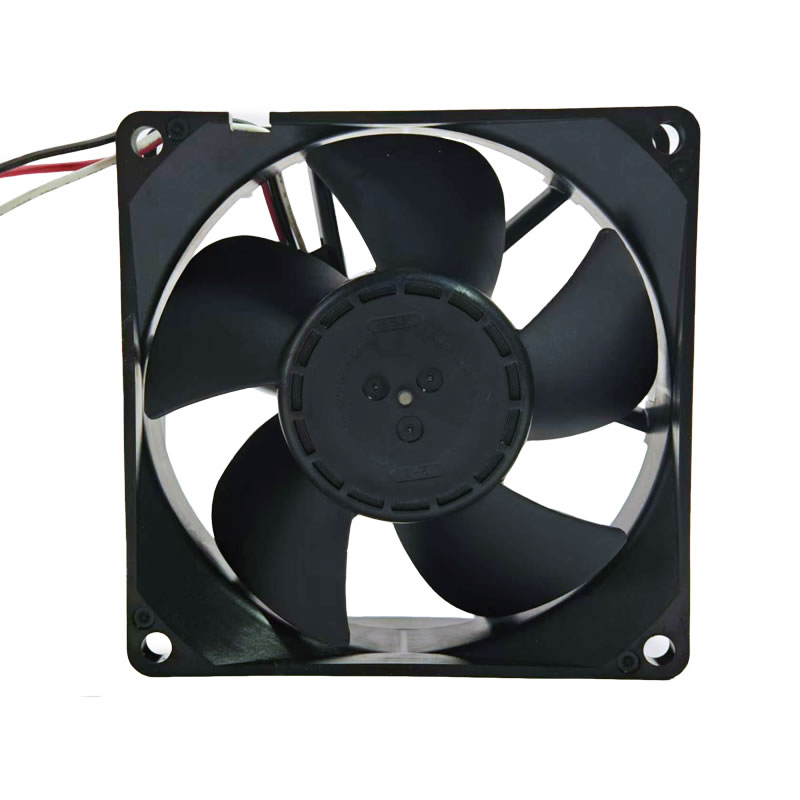

The NMB 08025VE-12P-GLD is a high-performance industrial DC Axial Fan with dimensions of 80 x 80 x 25 mm. Driven by a precision Brushless DC Motor, this 08025VE series model is engineered as an extreme-velocity cooling solution operating on a nominal 12 VDC. It delivers an exceptional maximum airflow of 73.1 CFM (124.2 m³/h) at a high speed of 7000 RPM. With a rated current of 0.68 A and a power input of 8.16 W, it generates a massive static pressure of 0.75 inH2O, making it highly effective at driving air through dense heat sinks and high-impedance enclosures. This specialized version is fully IP68-rated, providing complete protection against dust and total immersion in water. Featuring a robust 5-blade design and a three-wire termination with an integrated tacho signal, the 08025VE-12P-GLD provides mission-critical thermal management and real-time monitoring for ruggedized industrial inverters and outdoor electronic systems.
08025VE-12P-GLD Fan Parameters
Manufacturer: NMB (MinebeaMitsumi)
Model Number: 08025VE-12P-GLD
Motor Design: Brushless DC Motor
Type: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Impeller Size: 76 mm
Nominal Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.8 VDC
Speed: 7000 RPM
Power Input: 8.16 W
Rated Current: 0.68 A
Max. Airflow: 73.1 CFM (124.2 m³/h)
Max. Static Pressure: 186.7 Pa (0.75 inH2O)
Noise Level: 53 dB(A)
Weight: 120 g
Termination: 3 Wire Leads (VCC, GND, Tacho)
Bearing Type: Dual Ball Bearing
Housing Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Number of Blades: 5
Direction of Rotation: Clockwise (viewed toward rotor)
Degree of Protection: IP68 (Waterproof and Dustproof)
Insulation Class: E
Operating Temp. Range: -10 °C to +70 °C
Life Expectancy (L10) at 40 °C: 70,000 h
Signal Output: Tacho signal
Safety Protections: Auto-restart, Polarity protection
Approvals: CE, UL, CSA, TUV, VDE
Application
The 08025VE-12P-GLD is primarily engineered as a high-reliability inverter cooling fan, essential for the thermal regulation of IGBT modules in harsh industrial environments. With its IP68 rating, this 08025VE-12P-GLD model is a definitive choice for outdoor solar inverters and ruggedized motor drives where protection against water and dust ingress is mandatory. Within the confined housing of a frequency inverter, the 08025VE-12P-GLD utilizes its extreme 0.75 inH2O static pressure and 7000 RPM performance to effectively force air through dense cooling fins, preventing thermal overload. Additionally, the integrated tacho signal and 80mm footprint of the 08025VE-12P-GLD make it suitable for telecommunications base stations and marine electronics where real-time monitoring and durability are critical for fail-safe operation.
