Description

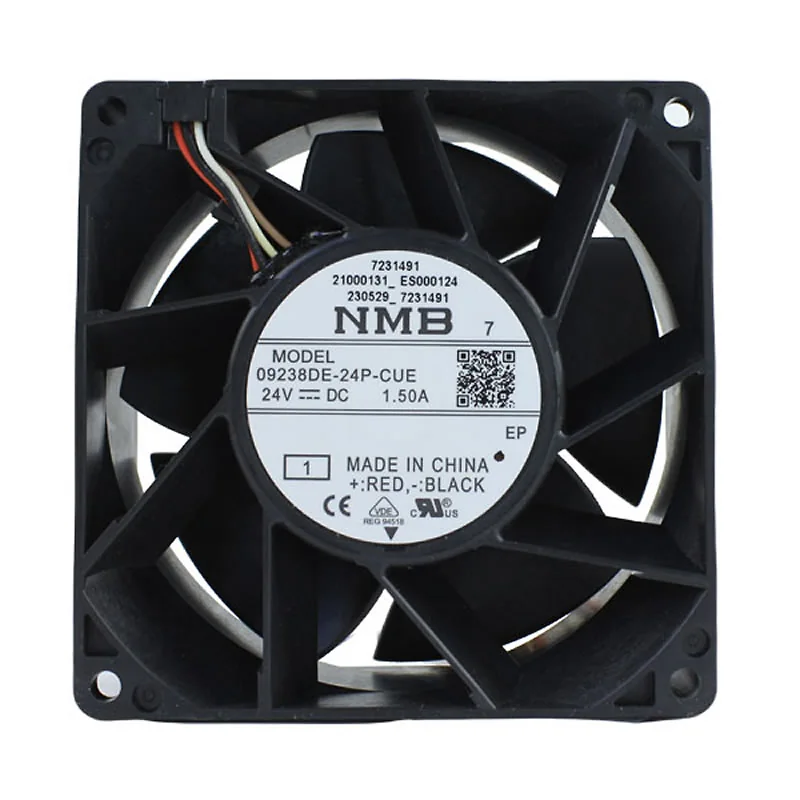

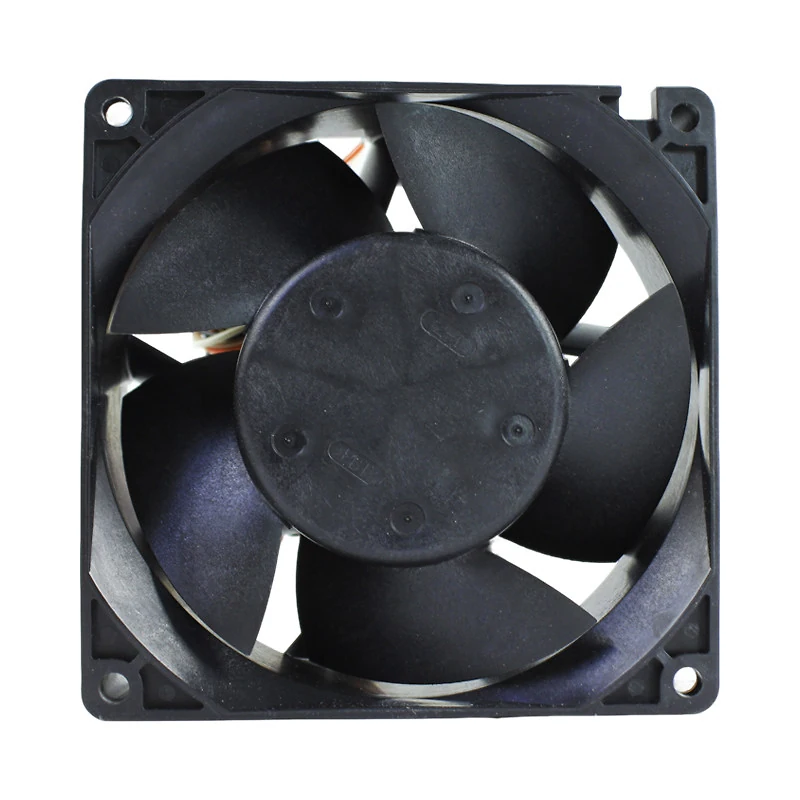

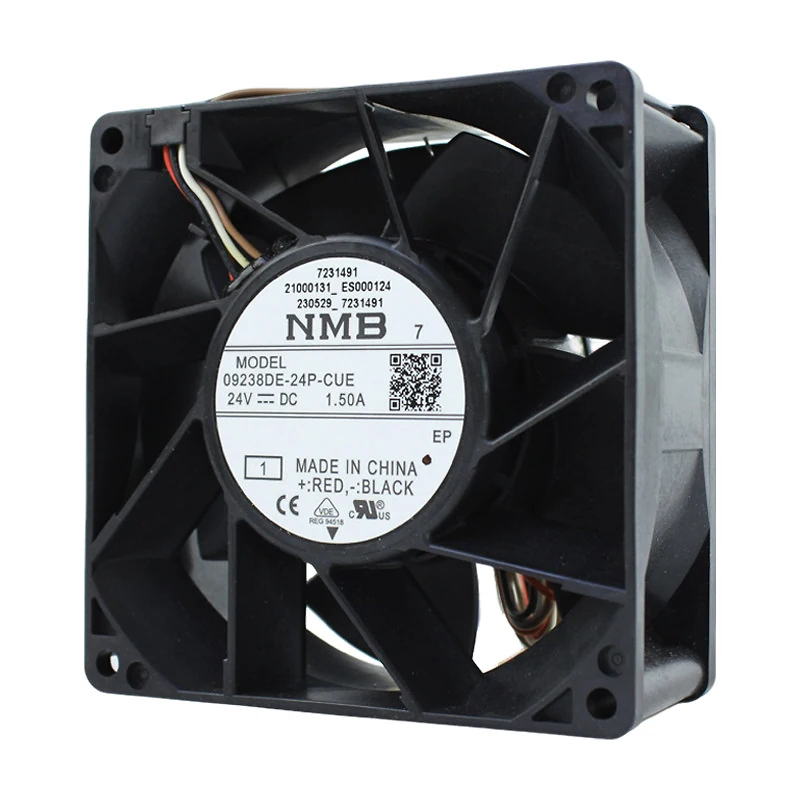

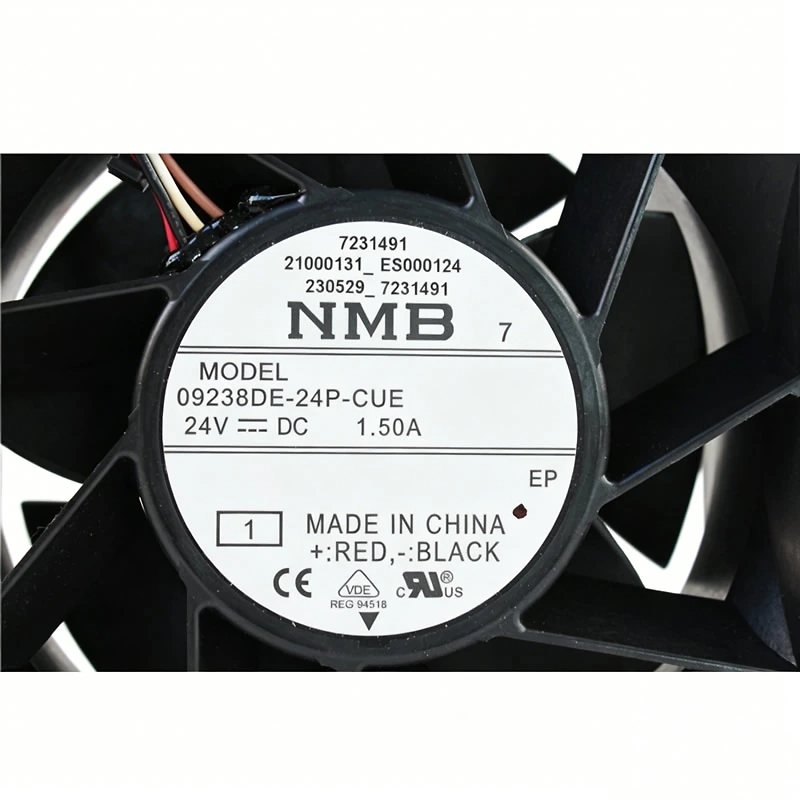

The NMB 09238DE-24P-CUE is a heavy-duty, high-performance 24VDC axial fan with dimensions of 92 x 92 x 38 mm, specifically engineered for extreme thermal management in photovoltaic (PV) inverters, EV chargers, telecommunication cabinets, and high-density enterprise server systems. Built with an advanced IP68 potting encapsulation technology, it provides certified protection against moisture, dust, and harsh outdoor or industrial corrosive environments. Powered by an efficient brushless DC motor, this 4-wire intelligent fan delivers an impressive rated speed of 10,000 RPM, a maximum air flow of 138.0 CFM (234.6 m³/h / 3.91 m³/min), and a robust static pressure of 2.23 inAq (555.0 Pa). It operates at a rated voltage of 24 VDC with a maximum current draw of 1.50 A and power consumption of 36 W. Equipped with precision dual ball bearings, integrated PWM speed control, and tachometer (tacho) feedback signal output, the 09238DE-24P-CUE ensures long-term reliability, precise thermal regulation, and continuous-duty operation under demanding conditions.
09238DE-24P-CUE Fan Parameters
Manufacturer: NMB (Minebea Mitsumi)
Model Number: 09238DE-24P-CUE
Type: DC Axial Fan (IP68 Waterproof, PWM Controlled)
Dimensions: 92 x 92 x 38 mm
Weight: 0.40 kg
Frame Material: Glass-filled Thermoplastic PBT (UL94V-0)
Blade / Impeller Material: Glass-filled Thermoplastic PBT (UL94V-0)
Bearing Type: Ball Bearing
Rated Voltage: 24 VDC
Operating Voltage Range: 12.0 – 26.4 VDC
Max. Current Draw: 1.50 A
Max. Power Consumption: 36 W
Rated Speed: 10,000 RPM (min⁻¹)
Max. Air Flow: 138.0 CFM (234.6 m³/h / 3.91 m³/min)
Max. Static Pressure: 2.23 inAq (555.0 Pa / 5.66 mmH₂O)
Sound Pressure Level: 66 dB(A)
Ingress Protection: IP68
Operating Temperature: -10 – +70 °C
Storage Temperature: -40 – +70 °C
Electrical Hookup / Interface: 4-Wire Leads (Red: Positive, Black: Negative, Yellow: Tachometer Output, Blue: PWM Speed Control)
Safety Approvals: CE, UL, TÜV, RoHS
Application
The NMB 09238DE-24P-CUE DC axial fan is specifically designed for cooling photovoltaic inverters, electric vehicle charging stations, outdoor telecommunication racks, industrial automation enclosures, and high-performance server power supplies requiring robust IP68 waterproof protection and intelligent PWM thermal control.
Additional information
| Weight | 0.5 kg |
|---|
