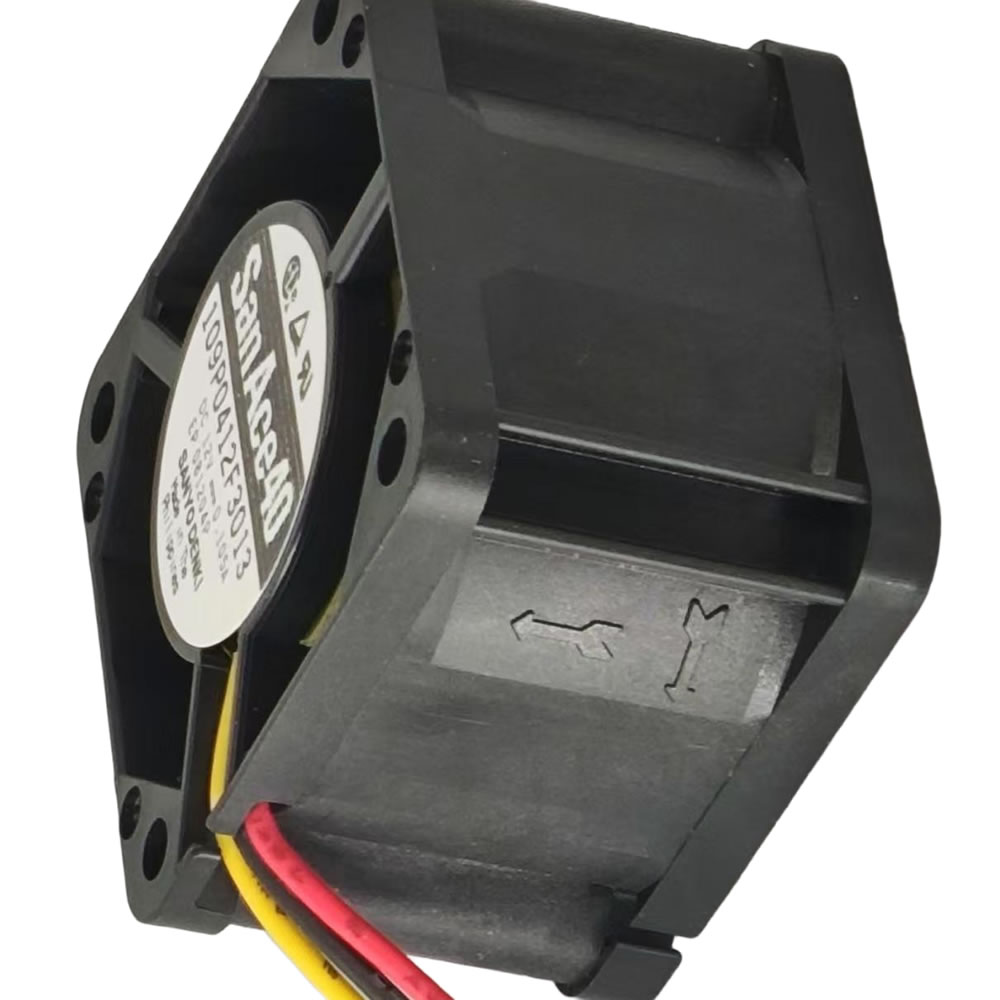

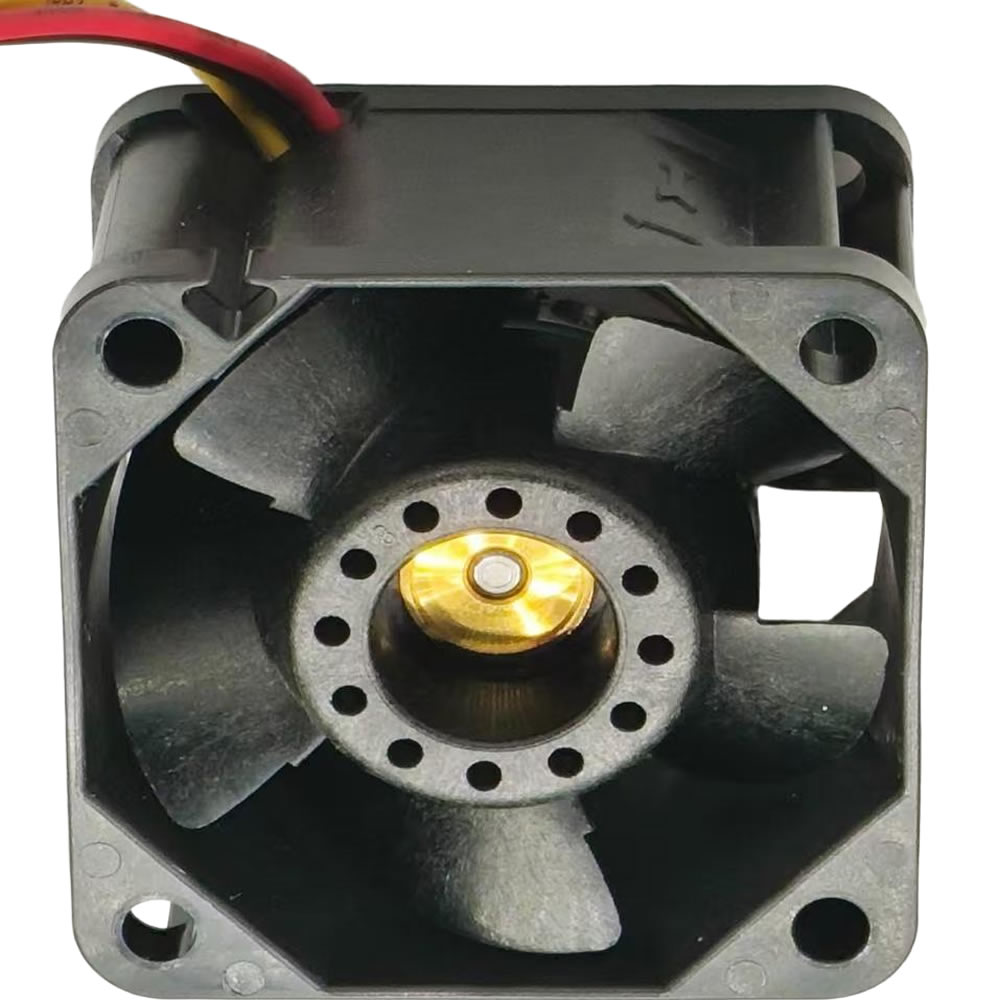

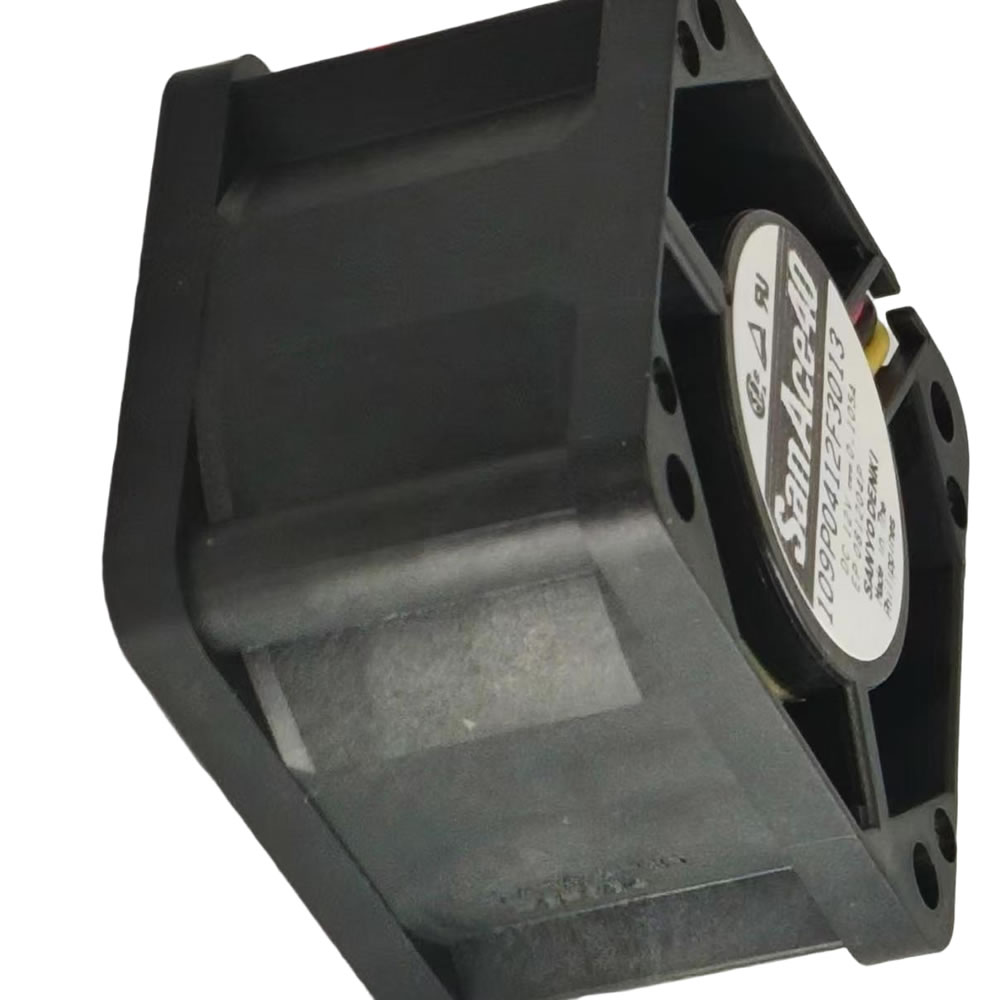

109P0412F3013 Sanyo DC12V 0.105A 3-wire axial fan

Description

Model: 109P0412F3013
Series: San Ace 40
Manufacturer:Sanyo Denki
Dimensions: 40x40x28mm
Rated Voltage: 12VDC
Operating Voltage Range: 7 VDC to 13.8 VDC
Rated Current: 0.105 A
Rated Input Power: 1.26 W
Rated Rotating Speed: 6700 min⁻¹
Maximum Air Flow: 0.244 m³/min
Maximum Static Pressure: 58.8 Pa
Noise Level: 30 dB(A)
Bearing Type: Ball Bearing
Termination: 3-Wire Leads
Frame Material: Plastic
Impeller Material: Plastic
Motor Protection: Locked Rotor Burnout Protection, Reverse Polarity Protection
PWM Control: No
Sensor Type: Pulse Sensor
Expected Life: 60,000 hours at 60°C, 90,000 hours at 40°C
Operating Temperature Range: -20°C to +70°C
Storage Temperature Range: -30°C to +70°C
Mass: Approx. 52 g
Type: DC Axial Flow Fan
