Description

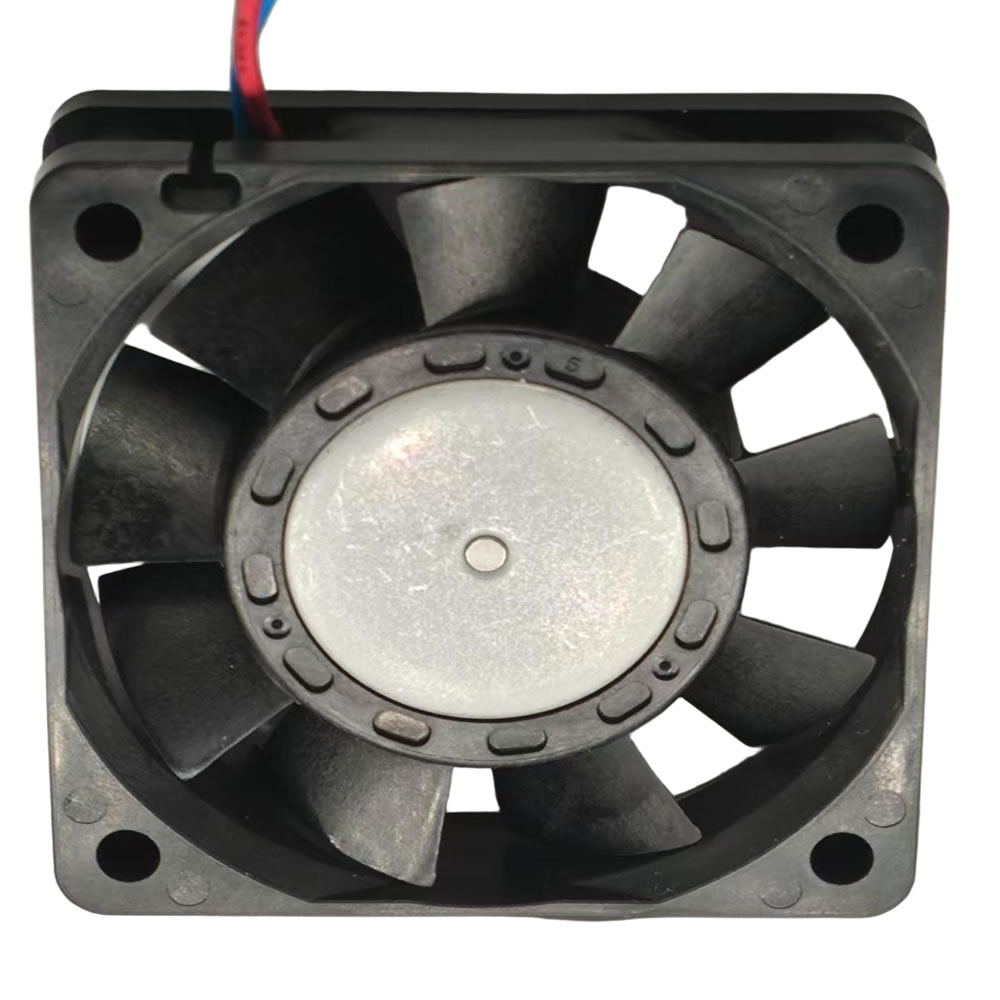

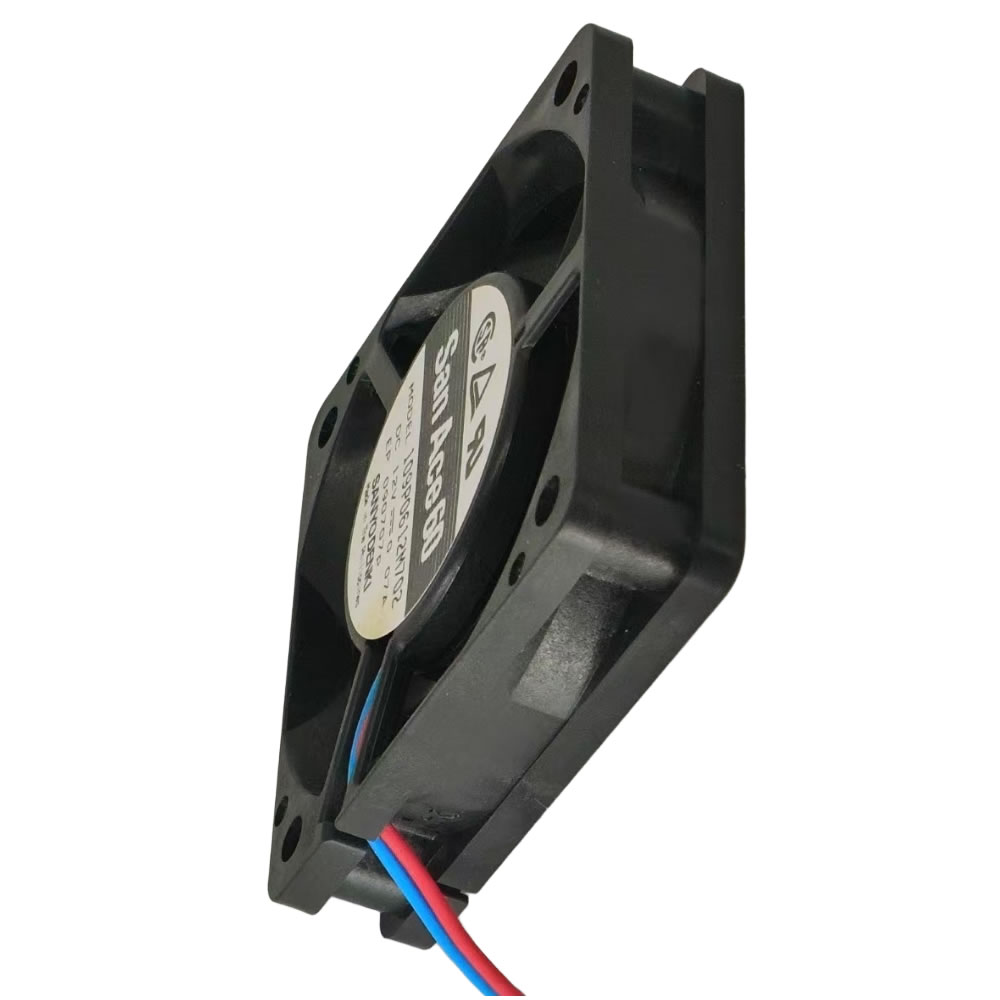

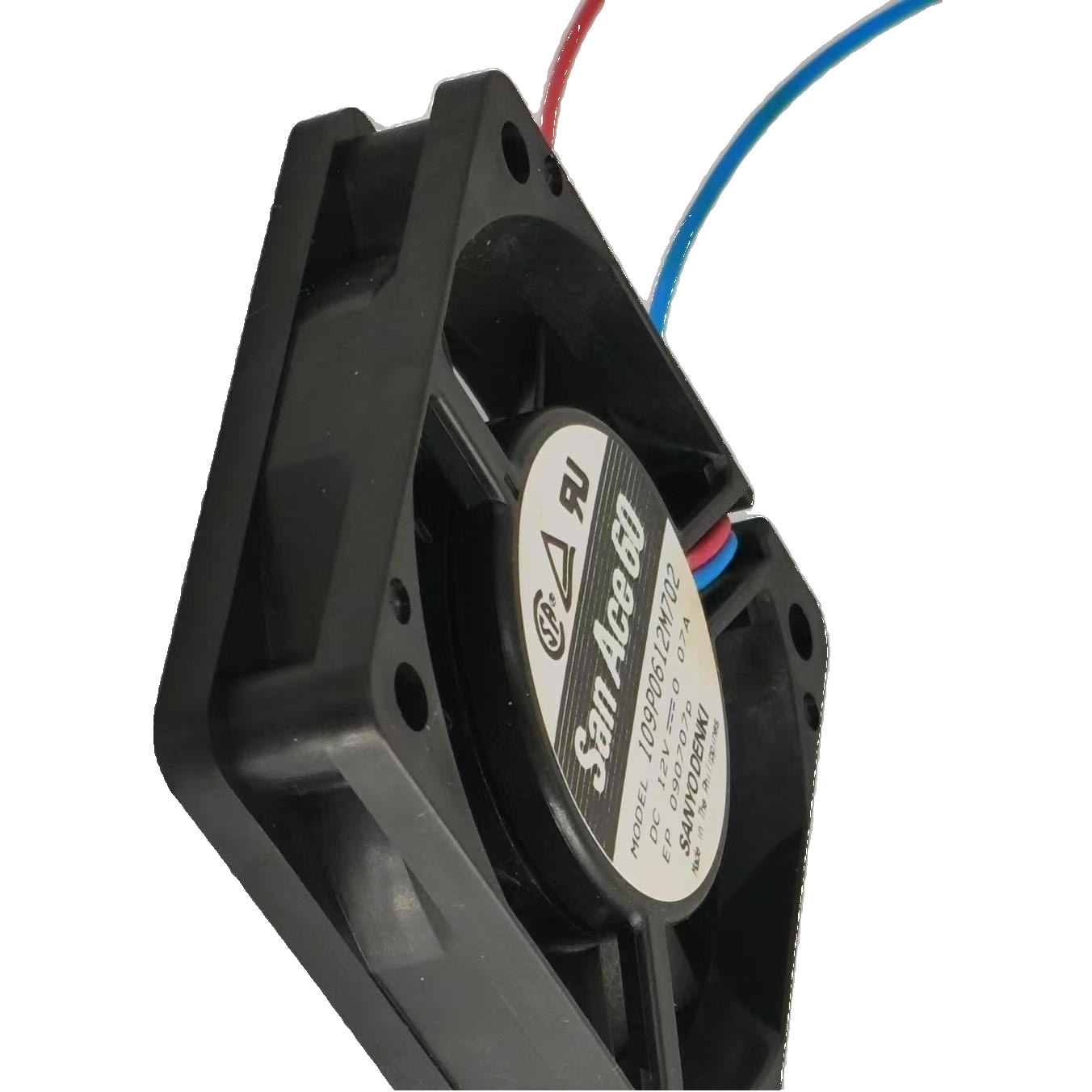

Model:109P0612M702
Manufacturer:Sanyo Denki
Series:San Ace 60
Dimensions:60x60x15mm
Rated Voltage: 12VDC
Operating Voltage Range: 10.2 VDC to 13.8 VDC
Rated Current: 0.07A
Rated Input Power: 0.84W
Rated Rotating Speed: 3100 min⁻¹ (RPM)
Maximum Air Flow: 0.297 m³/min (10.6CFM)
Maximum Static Pressure: 22.7Pa (0.091inchH₂O)
Noise Level: 25dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Frame Material: Plastic
Impeller Material: Plastic
Motor Protection: Locked Rotor Protection
Expected Life: 60,000 hours at 60°C, 90,000 hours at 40°C
Operating Temperature Range: -20°C to +70°C
Storage Temperature Range: -30°C to +70°C
Mass: Approx. 60g
Type: DC Axial Flow Fan
109P0612M702 is mainly used in inverter equipment
