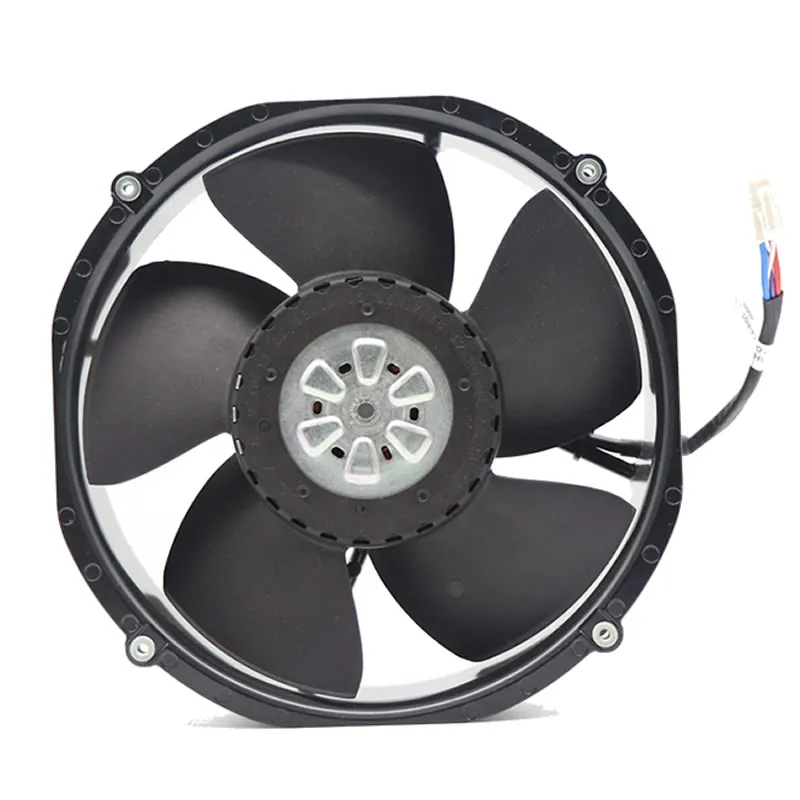

2218F/2TDH4P ebmpapst 48V 103W Axial fan

$32.00$299.00

2218F/2TDH4P ebmpapst DC Ball Bearing 48V 103W 6500RPM 717.6CFM 72dB 4Wire 200x51mm Axial fan

Clear
SKU: 2218F/2TDH4P Category: Brand:

Description

Model: 2218F/2TDH4P ebmpapst
Dimensions: 200 x 50.8mm
Supply Voltage: 48 V dc
AC or DC Operation: DC
Power Consumption: 103W
Depth: 50.8mm
Termination Type: Lead Wire
Air Flow: 1220m³/h
Noise Level: 72dB
Fan Speed: 6500rpm
Sensor Type: PWM, Tachometer
Bearing Type: Ball
IP Rating: IP20:
Priced to Clear: Yes
Features and Benefits

• 3-Phase fan for efficient running
• Compact design for space saving
• Low operating noise at high back pressure
• Protected against reverse polarity and locking
• Fitted with speed signal and control as standard
• Go/No Go alarm
• External and internal temperature sensors
• Analogue and Multi-option control input
• Speed control range from 1000 rpm
• Moisture and Salt Spray protection
• Run time of 70,000 hours or more
• Type O: stationary at sensor break
• Type P: maximum speed at sensor break

Applications

Though ideal for ACTA systems, this efficient and effective S-Force fan is used in many other applications.

• Industrial
• Thermal Management
• HVA
• Servers
• Switch Cabinets
• Drives

Additional information

Weight1.5 kg
Item Number

2218F/2TDH4P

Manufacturer

ebm-papst

Height

220mm

Depth

51mm

Width

200mm

Operating Supply Voltage

48VDC

Airflow:

718 CFM (20.3 m3/min)

Speed:

6500 RPM

Bearing Type

Ball

Noise

72 dBA

IP Rating

IP20

Power Rating

103 W

Features

Speed Signal, Open Collector Output

Housing Material

Aluminum

Termination Style: Wire Leads

Termination Style: Wire Leads

Brand

ebmpapst

Current Type

DC

Operating Temp Range

-20C to 65C

Maximum Airflow

718.06(cfm)

Quality

New, Used
