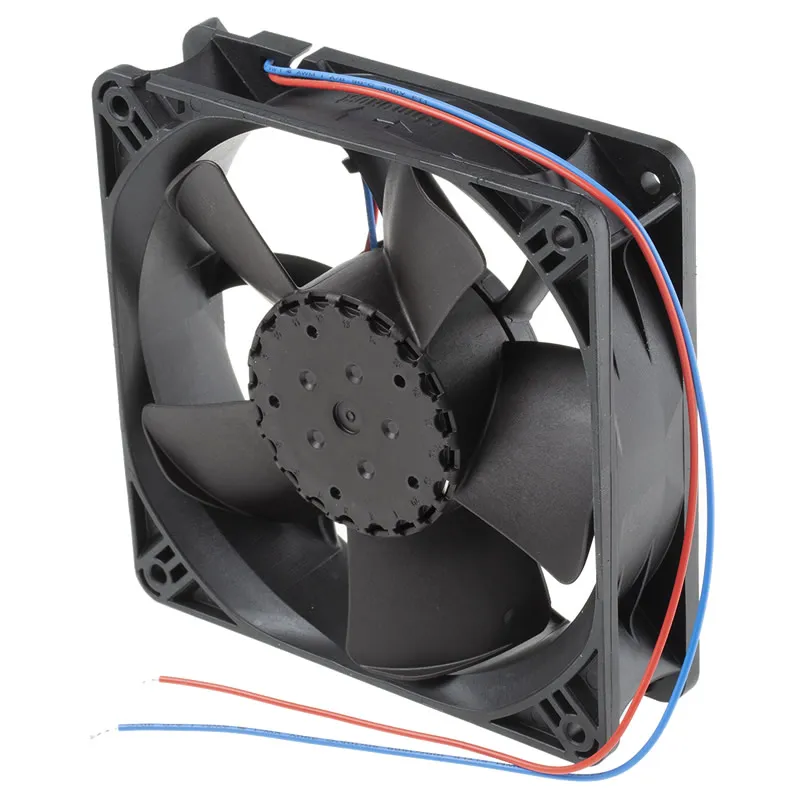

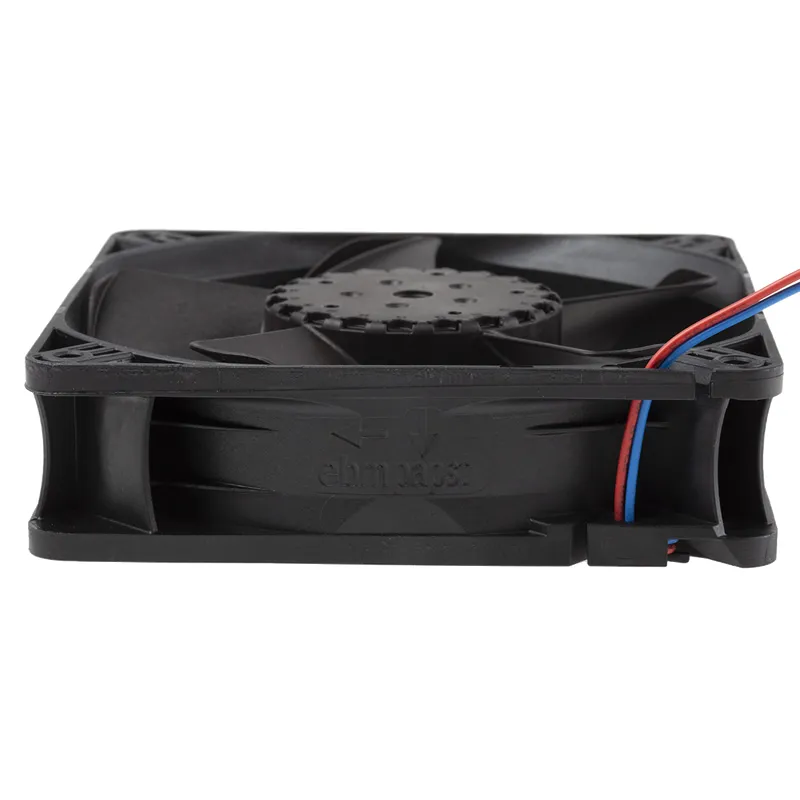

4314NH ebmpapst DC axial cooling fan

Description

Model: 4314NH
Brand: ebmpapst
Supply Voltage:24VDC
Dimensions: 119x119x32mm
AC or DC Operation:DC
Height:119mm
Power Consumption:10W
Width:119mm
Depth:32mm
Air Flow:285m³/h
Termination Type:Lead Wire
Noise Level:46dB
Fan Speed:3150rpm
Bearing Type:Ball
IP Rating: IP20
Air Flow : 129CFM

DC axial fans, 119 x 119 x 32 mm, type ebm-papst Serie 4300 N. Made of glass fiber-reinforced plastic Product information – Volume flow: 176 m³/h – Power consumption: 4.5 W – speed: 3150 1/min – Type of bearing: Ball bearings – Height: 119 mm – Rated voltage: 24 V – Sound pressure level: 45 dB – Width: 119 mm – Depth:

Key features and Benefits

• Fully integrated electronic commutation
• Clockwise rotation / Exhaust over struts operation
• Exceptional life expectancy
• Protected against reverse polarity and locking
• Expertly designed aerodynamic fan blades supporting excellent efficiency and low noise levels.
• Maintenance free ball bearing system, promoting excellent performance and life expectancy
• IP20 ingress protection on all models except for U types which have IP68 ingress protection. R types have a mositure protective coating on the circuit board and windings
• Type L: Low speed
• Type M: Medium speed
• Type NH: High Speed
