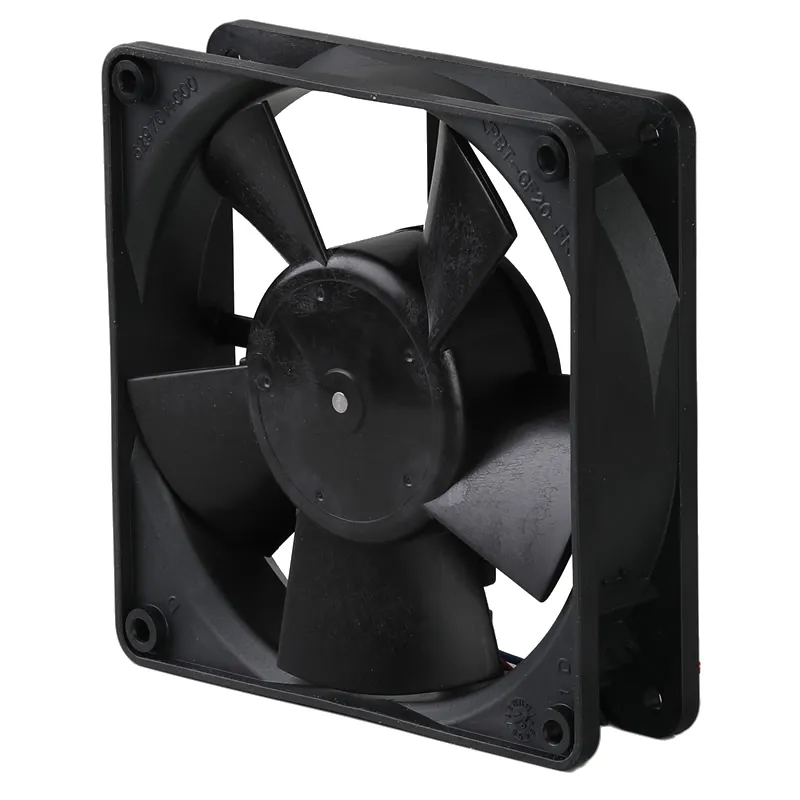

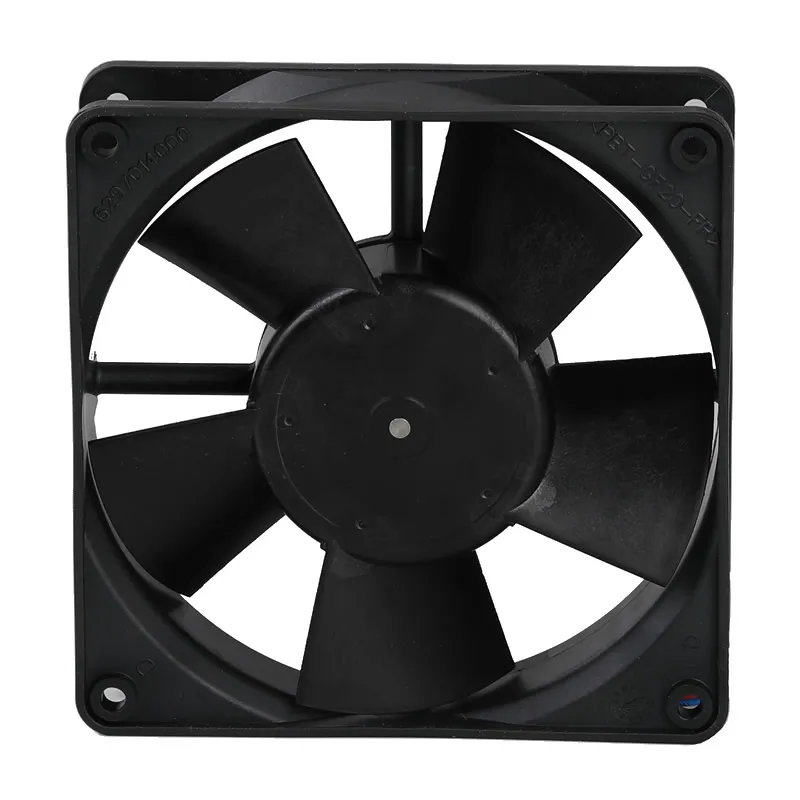

4314U ebmpapst DC24V 237mA 5.7W axial fan

$69.99

SKU: 4314U Category: Brand:

Description

Model: 4314U
Brand: EBM PAPST
Fan Speed: 2800RPM
Power consumption: 5.7W
Voltage:24Vdc
Size:119x119x32mm
Height:119mm
Width:119mm
Depth:32mm
AC or DC Operation:DC
Air Flow: 170m³/h
Power Consumption: 5W
Maximum Current: 208mA
Bearing: Type Ball
Noise Level 45dB
Fan Speed: 2800rpm
IP Rating: IP68
Weight:220g

• IP68 compliant DC fans with electronic rotor switching and integrated electronic switching regulation
• Fibreglass-reinforced plastic, PBTP housing and PA vane
• Protected against polarity reversal and overload
• Electric connection with two 22 AWG rated wires

Note:
A manufacturer part number suffixed ‘U’ denotes either IP54 or IP68 rating

ebm-papst 4314U Series Compact DC Axial Fans

From ebm-papst, the 4314 series of high performance ball bearing fans offering a cost effective cooling solution without sacrificing on quality or reliability. The compact DC axial fans are expertly designed supporting excellent efficiency long service life and smooth operation. With a robustly constructed PBT housing and PA impeller, the 4314 series fans are an ideal for multitude of cooling applications.

Key features and Benefits

• Fully integrated electronic commutation
• Clockwise rotation / Exhaust over struts operation
• Exceptional life expectancy
• Protected against reverse polarity and locking
• Expertly designed aerodynamic fan blades supporting excellent efficiency and low noise levels.
• Maintenance free ball bearing system, promoting excellent performance and life expectancy
• IP20 ingress protection on all models except for U types which have IP68 ingress protection. R types have a mositure protective coating on the circuit board and windings
• Type L: Low speed
• Type M: Medium speed
• Type NH: High Speed

Additional information

Weight1 kg
Manufacturer

EBM-PAPST

Type of fan

DC

Kind of fan

axial

Dimensions

119x119x32mm

Power consumption

5.7W

Fan efficiency

170m3/h

Noise

45dBA

Bearing

ball bearing

Speed

2800rpm

IP rating

IP68

Leads

2 leads

Voltage Rating

24 VDC

Type

Square

Termination

Wire Leads

Minimum Operating Temperature

-20 C

Maximum Operating Temperature

75 C

Material

Plastic

Air Flow

100 CFM (2832 L/Min.)

Direction of rotation

Clockwise, viewed toward rotor

Item Number:

4314U
