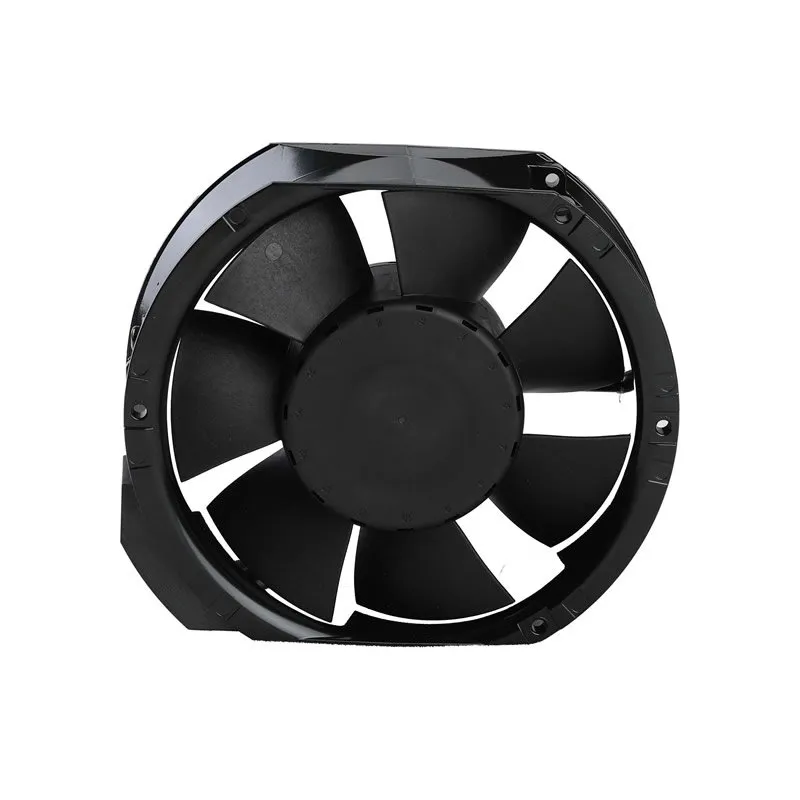

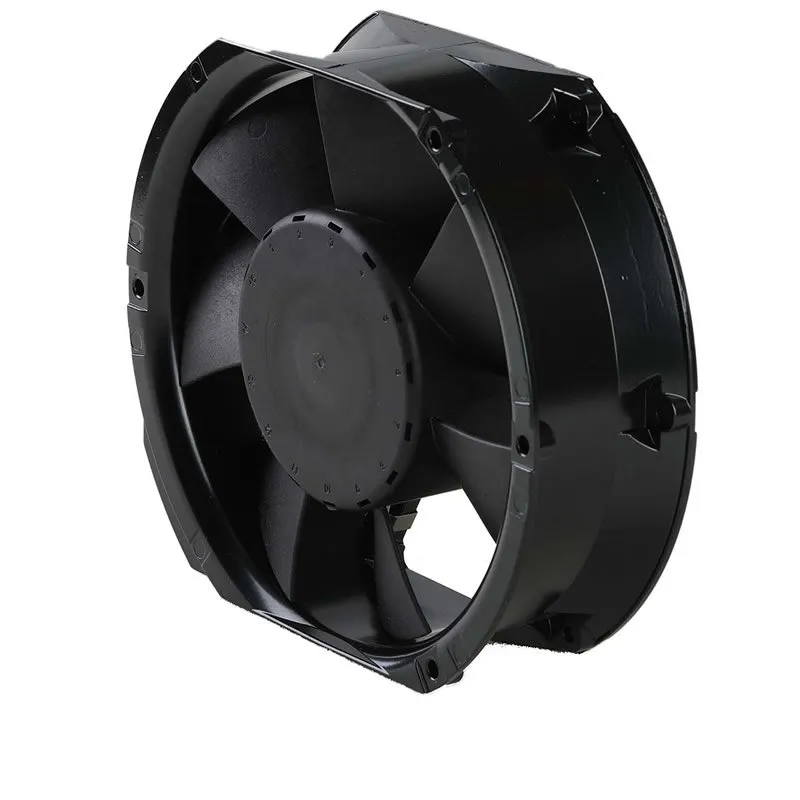

6424H ebmpapst DC axial compact fan

$69.00

1000 in stock

SKU: 6424H Category: Brand:

Description

Model:6424H
Manufacturer:ebm-papst
Voltage:24V
Blower Type:Axial Flow Fan
AC or DC Operation: DC
Air Flow:480m³/h
Size:172X150X51mm
Fan Speed:4000rpm
Bearing Type:Ball
Particular design features:
Optional Vario-Pro: Highly flexible software configuration for the fan ensures an easily customisable
solution to meet the individual requirements of your application.
General features:
Housing made of aluminium, impeller made of fibreglass-reinforced PA; housing with grounding lug
for M4 x 8 screw (Torx). 48 V version incl. screws.
Electronic commutation completely integrated.
Protected against reverse polarity and locking.
Electrical connection to flat plugs, 3 x 0.5 mm.
Air exhaust over bars. Direction of rotation counter-clockwise seen on rotor.
Mass: 760 g.

Additional information

Weight 1 kg
Model

6424H

Voltage Rating

24 VDC

Dimensions

172x150x51mm

Air Flow

283 CFM (8014 L/Min.)

Bearing Type

Ball

Fan Type

DC

Noise Level

63 dB(A)

Power Rating

26W

Speed

4000 RPM

Termination

Flat Plugs

Rotation

CCW

Series

6400 Series

Maximum Operating Temperature

55 C

Minimum Operating Temperature

-20 C

Configuration

Obround (Flat Sides/Rounded Ends)

Mass

0.760 kg
