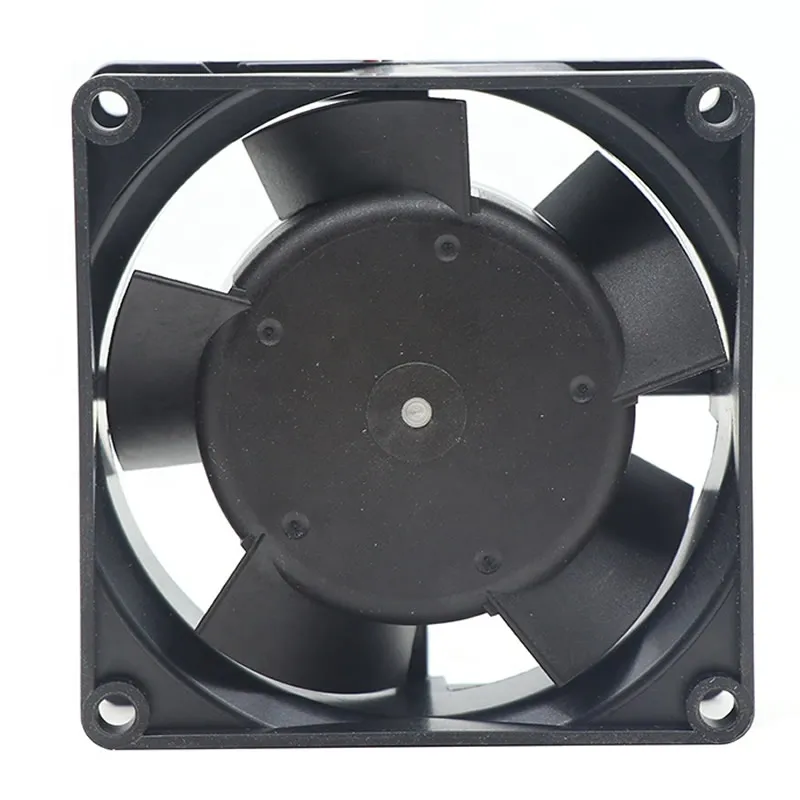

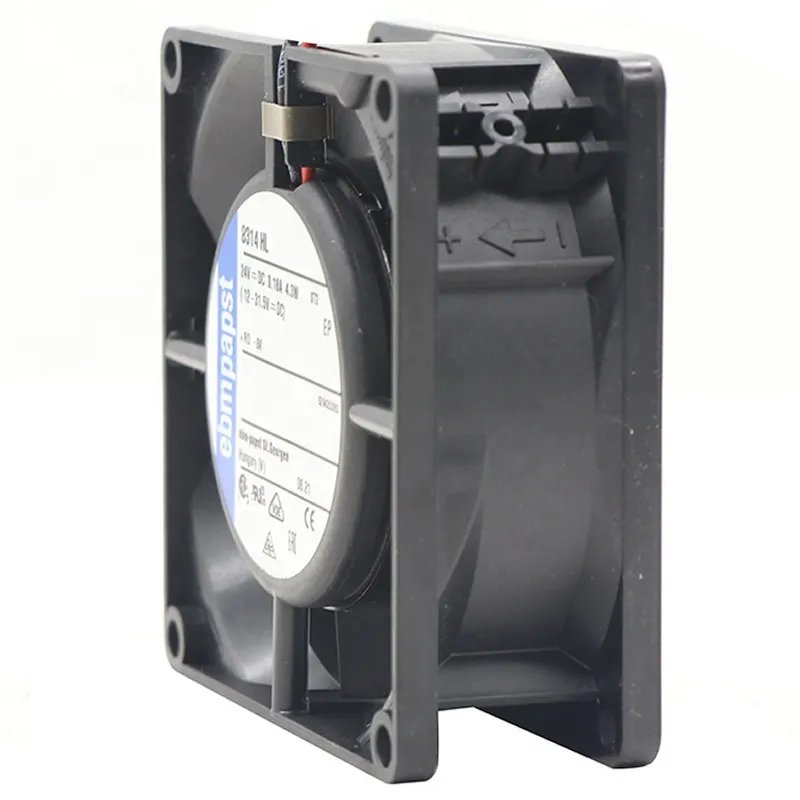

8314HL ebmpapst DC axial compact fan

$39.99

SKU: 8314HL Category: Brand:

Description

Model: 8314HL
Brand:ebmpapst
Type of fan:DC
Kind of fan:axial
Operating voltage:24V DC
Fan dimensions:80x80x32mm
Power consumption:4.3W
Fan efficiency:66m3/h
Noise level:43dBA
Kind of Bearing:ball bearing
Rotational rate/speed:4200rpm
Impeller material:plastic
Enclosure material:plastic
Leads:2 leads
Cable length:0.31m
Weight:170g

Additional information

Weight0.5 kg
Type

8314 HL

Manufacturer

EBM-PAPST

Nominal voltage

24VDC

Nominal voltage range

12 .. 31,5VDC

Speed (rpm)

4200min-1

Power consumption

4.3W

Min. ambient temperature

-20°C

Max. ambient temperature

75°C

Air flow

67m3/h

Sound power level

5.8B

Sound pressure level

43dB(A)

Housing material

Glass-fiber reinforced PBT plastic

Impeller material

Glass-fiber reinforced PA plastic

Dimensions

80 x 80 x 32 mm

Airflow direction

Exhaust over struts

Storage

Ball bearing

Cable

Leads AWG 22, TR 64, stripped and tin-plated

Option

Possible custom designs:
Speed signal
Go / No-go alarm
Alarm with speed limit
External temperature sensor
Internal temperature sensor
PWM control input
Analog control input
Moisture protection
Salt spray protection
Degree of protection: IP54 / IP68
