Description

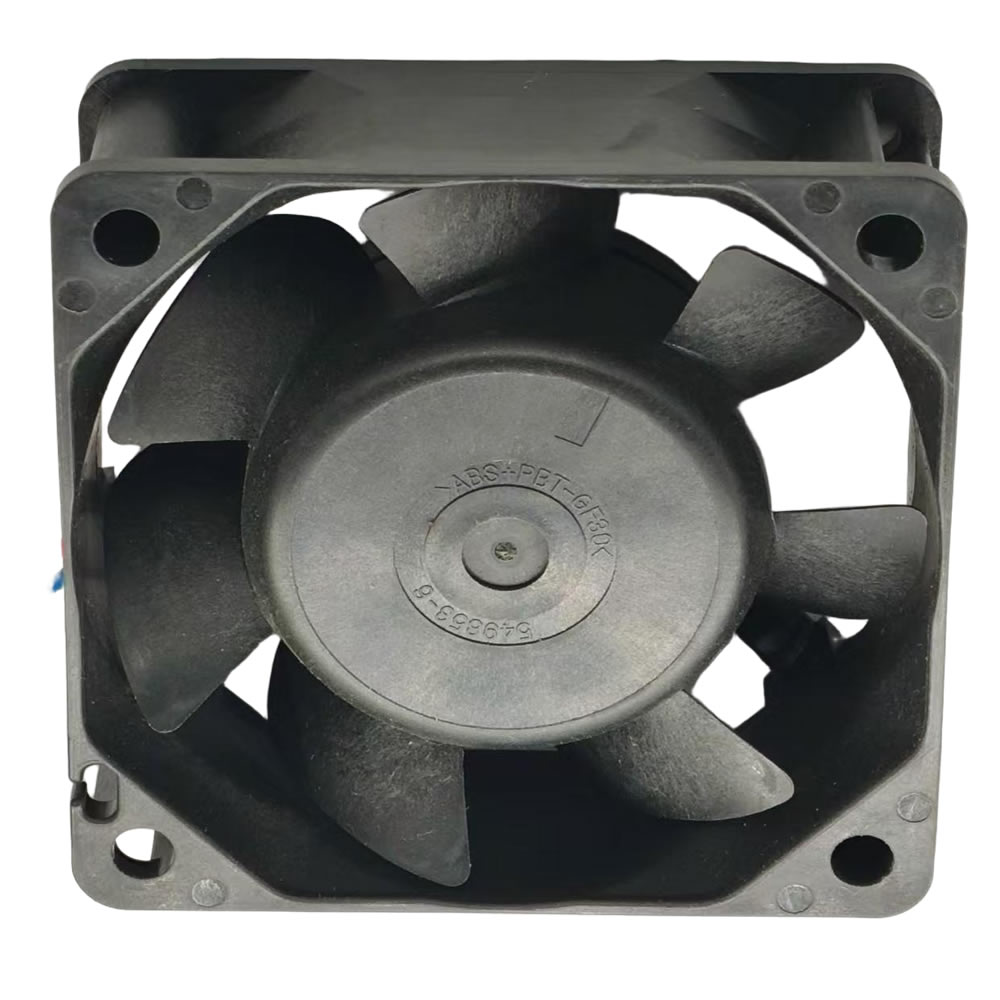

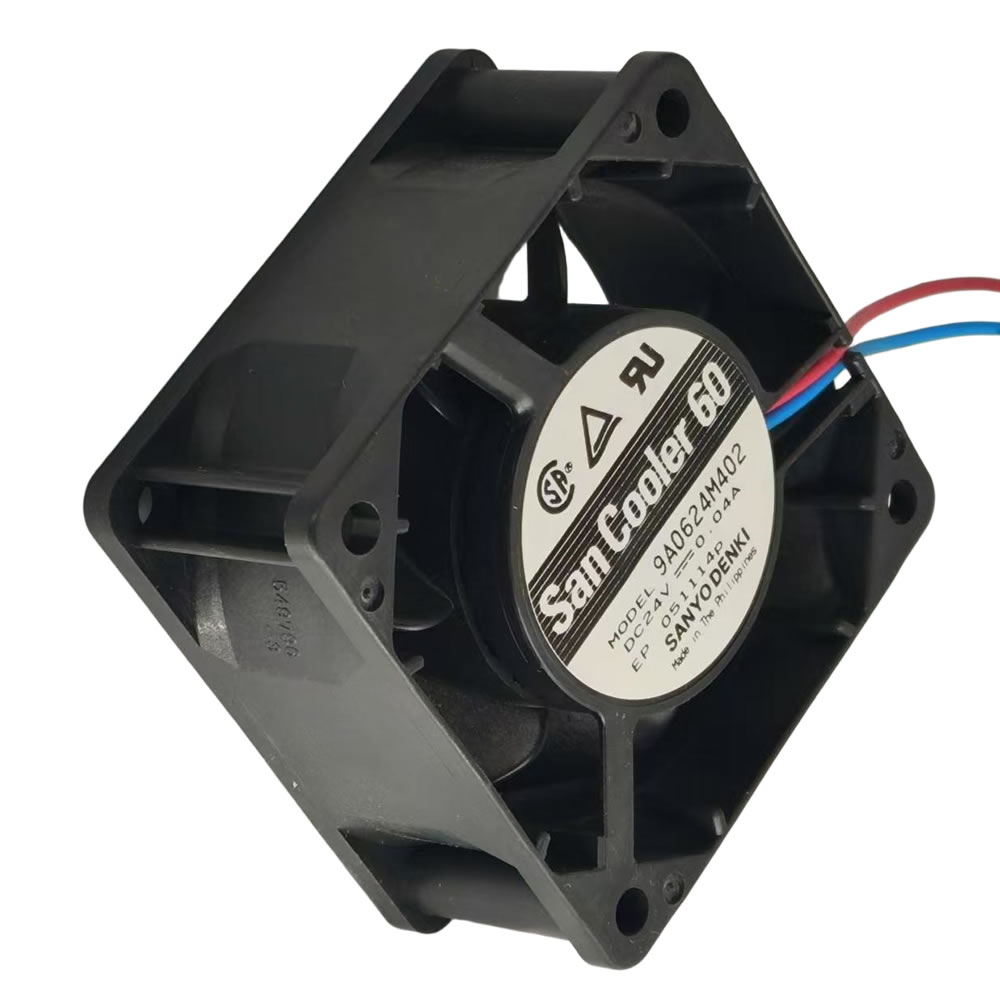

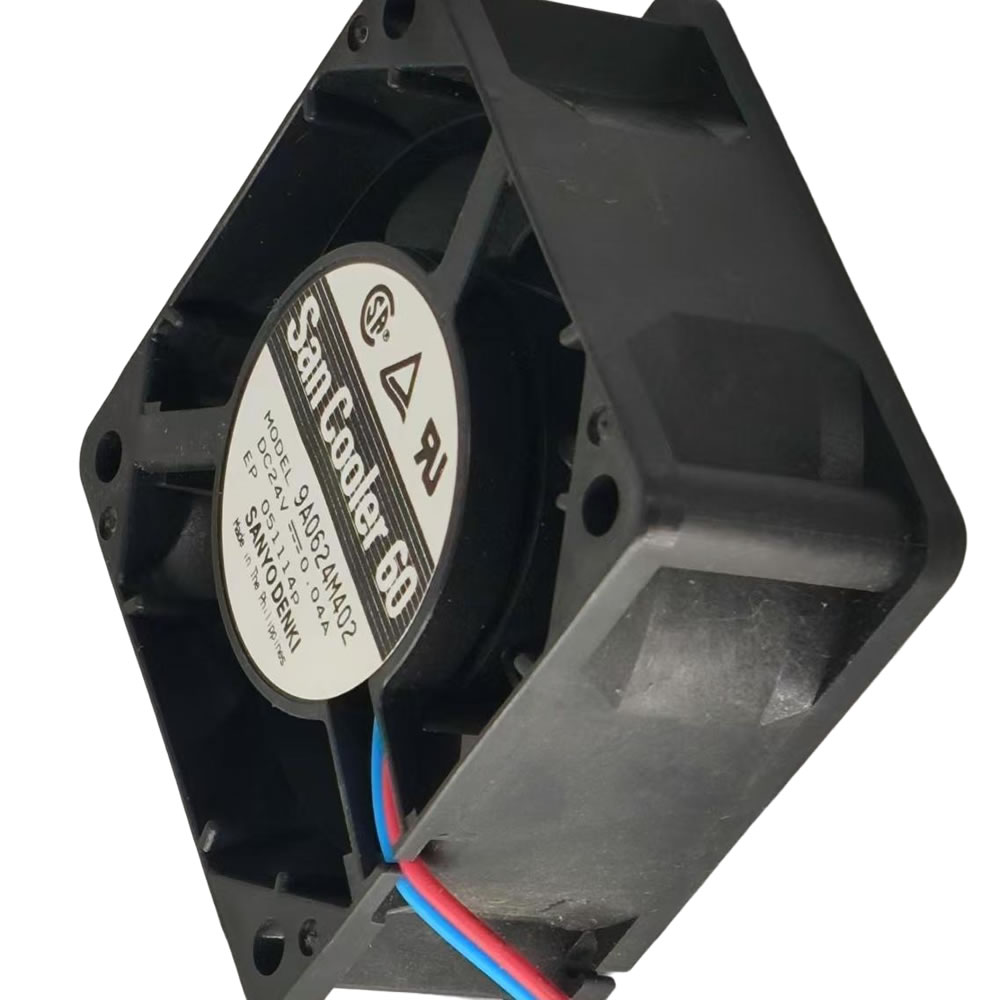

Model:9A0612M402
Series: San Ace 60
Manufacturer:Sanyo Denki
Dimensions:60x60x25mm
Rated Voltage:12 VDC
Operating Voltage Range:7 VDC to 13.8 VDC
Rated Current:0.04A
Rated Input Power:0.96W
Rated Rotating Speed: 2600min⁻¹
Maximum Air Flow: 0.356m³/min
Maximum Static Pressure: 19.6Pa
Noise Level:20 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Frame Material: Plastic
Impeller Material: Plastic
Motor Protection: Locked Rotor Protection, Reverse Polarity Protection
PWM Control: No
Sensor Type: Pulse Sensor
Expected Life: 40,000 hours at 60°C, 70,000 hours at 40°C
Operating Temperature Range: -20°C to +70°C
Storage Temperature Range: -30°C to +70°C
Mass: Approx. 80g
Type:DC Axial Flow Fan
