Description

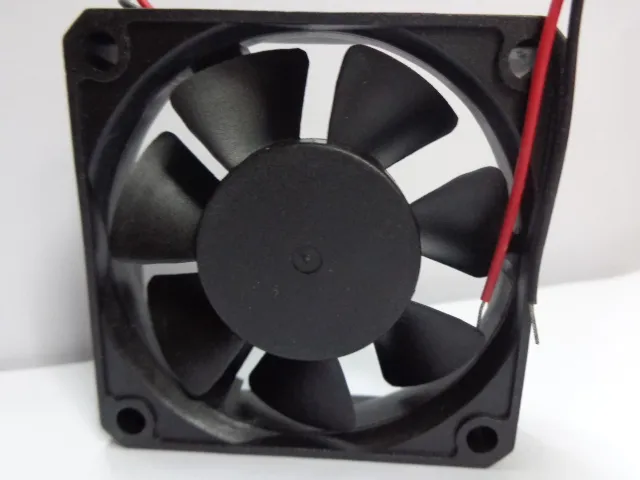

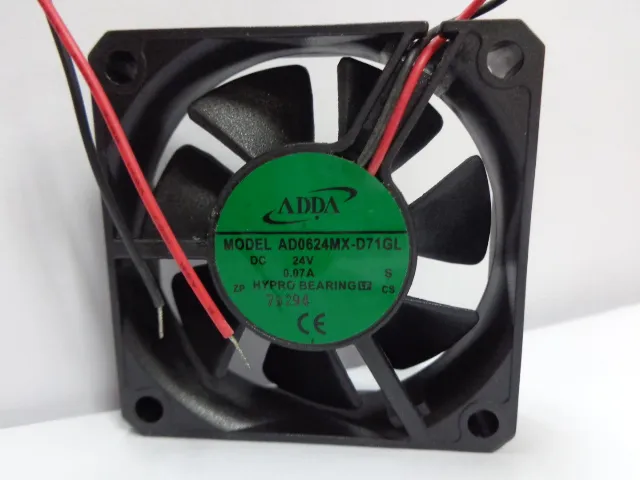

The ADDA AD0624MX-D71GL is a precision-engineered 24V DC axial cooling fan designed specifically for thermal management in industrial inverters and variable frequency drives (VFDs). As a critical OEM replacement component, this 60mm unit ensures consistent airflow and heat dissipation to maintain the operational integrity of automation control systems.
Product Highlights
- Industrial Reliability: Utilizes ADDA’s proprietary Hypro Bearing technology, offering a superior balance between lifespan and noise reduction compared to standard sleeve bearings.
- Precise Control: Engineered for Medium Speed (M) operation with a low current draw of 0.07A, providing efficient cooling without introducing excessive vibration or electromagnetic interference.
- Seamless Integration: Features a standard industrial 60mm frame footprint and 2-wire compatibility, ensuring immediate technical compatibility with existing cooling arrays in server racks and power supplies.
Technical Specifications
Comprehensive technical data for model verification:
| Manufacturer | ADDA Corporation |
| Model Number | AD0624MX-D71GL |
| Part Status | Active / Original Spare Part |
| Nominal Voltage | 24V DC |
| Operating Voltage Range | 21.6V ~ 26.4V DC |
| Input Current | 0.07 A |
| Power Rating | 1.68 W |
| Frame Dimensions (HxW) | 60mm x 60mm |
| Frame Thickness | 15mm (Standard Profile) |
| Bearing Type | Hypro Bearing (Hydro-Dynamic) |
| Fan Speed | 4500 RPM (Nominal) |
| Air Flow | 18.0 CFM (Cubic Feet per Minute) |
| Static Pressure | 0.14 Inch-H2O |
| Noise Level | 29.0 dB(A) |
| Housing Material | PBT Plastic (UL94V-0) |
| Impeller Material | PBT Plastic (UL94V-0) |
| Operating Temperature | -10°C to +70°C |
| Termination | Lead Wires (UL 1007 AWG#26) |
| Net Weight | 0.045 kg |
| Safety Approvals | UL, CUL, TUV, CE |
Typical Applications
Widely used in CNC machining centers for spindle drive cooling and inverter cabinet ventilation. Also standard in rack-mounted industrial power supplies requiring continuous duty thermal regulation.
Installation & Support
Ensure firmware compatibility and verify voltage input before installation. This unit is an OEM replacement designed for seamless integration into automation systems. Please refer to the official manual for wiring diagrams and connector pinouts.
Additional information
| Weight | 1 kg |
|---|---|
| Air Volume | 30CFM |
| Fan Life | 40000 hrs |
| Compatible CPU | all |
| Power Interface | 3PIN |
| Model Number | AD0624MX-D71GL |
| Bearing | Oil Bearing |
| Application | Computer Case |
| Lines | 2 Lines |
| Noise | 25dBA |
| Brand Name | ADDA |
| Type | Fan |
| Heatsink Material | Copper & Aluminum |
| Package | No |
| Power | 1.56W |
| Fan Speed Control | 2500RPM |
| Fan Size | Other |
