Description
Brand: Delta
Model: AFB1224GHE-C
Voltage: 24V
Speed: 5200RPM
Current: 1.6A
Noise: 62dbA
Bearings: Balls
Size: 120*120*38mm
Air volume: 240.96CFM
Weight: 330G

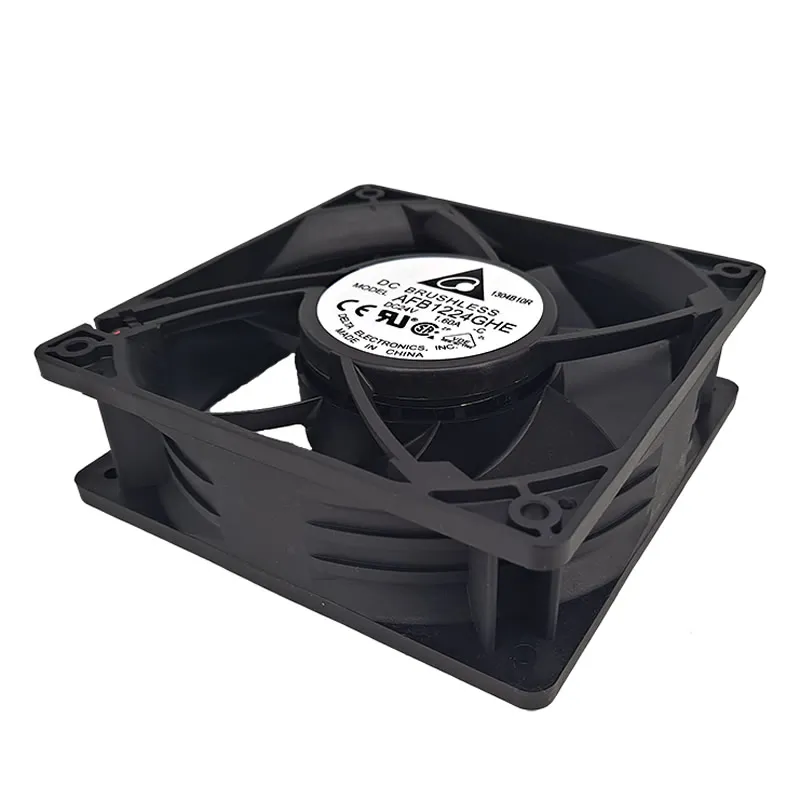

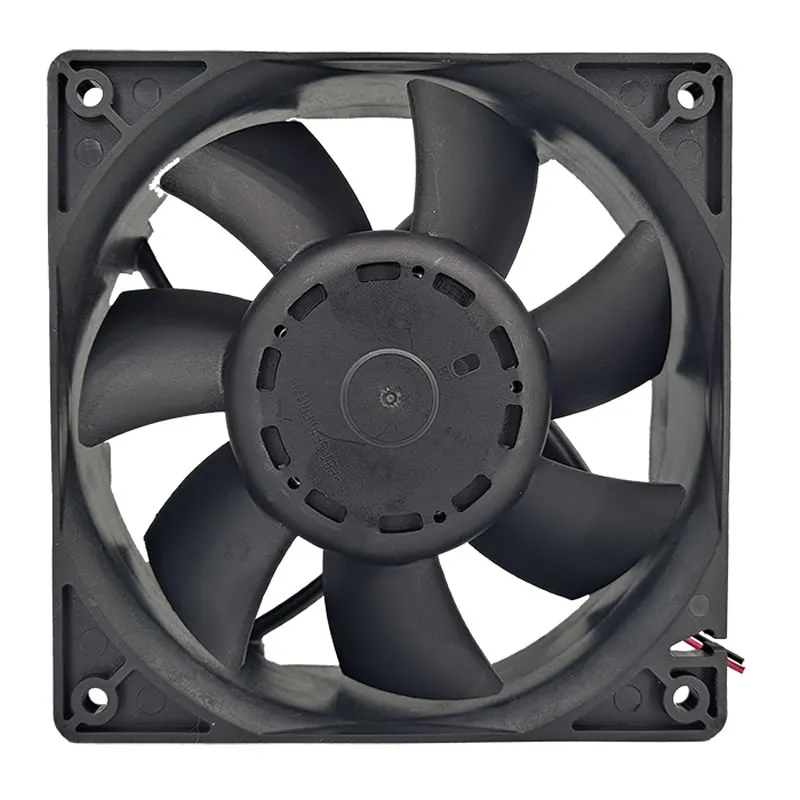

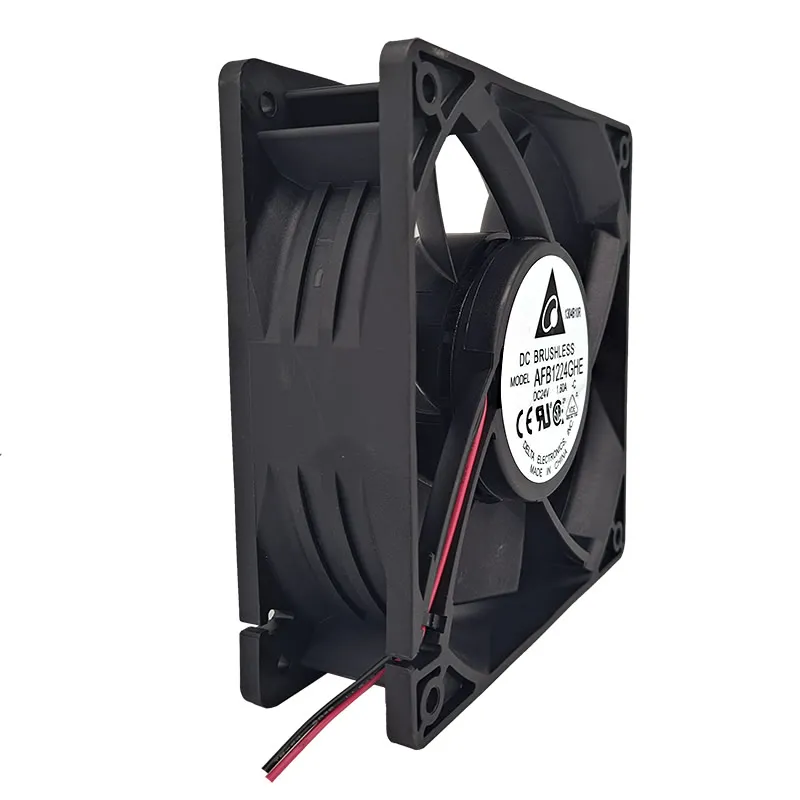

AFB1224GHE-C DC24V 1.6A Delta 12cm cooling fan
$29.99
999 in stock
Additional information
| Weight | 1 kg |
|---|---|
| Manufacturer | Delta |
| Part number | AFB1224GHE-C |
| Series | AFB |
| Power | 27.60 W |
| RPM | RPM5200 |
| Voltage Rated | 24VDC |
| Termination | 2 Lead Wires |
| Dimension | Square-120mm L X 120mm H |
| Width | 38.00mm |
| Operating Temperature | -10~+70⁰C |
| Air Flow | 240.96CFM (6.823 m3/min) |
| Static Pressure | 1.082inchH2O (27.483mmH2O) |
| Current Rating | 1.15 A |
| Bearing Type | Ball |
| Voltage Rating | 14.0 – 28.0 VDC |
| Fan Type | Axial |
| Material Frame | Plastic |
| Noise | 62.0 dB(A) |
| Lifetime @ Temp | 70000 Hrs@40⁰C |
