Description

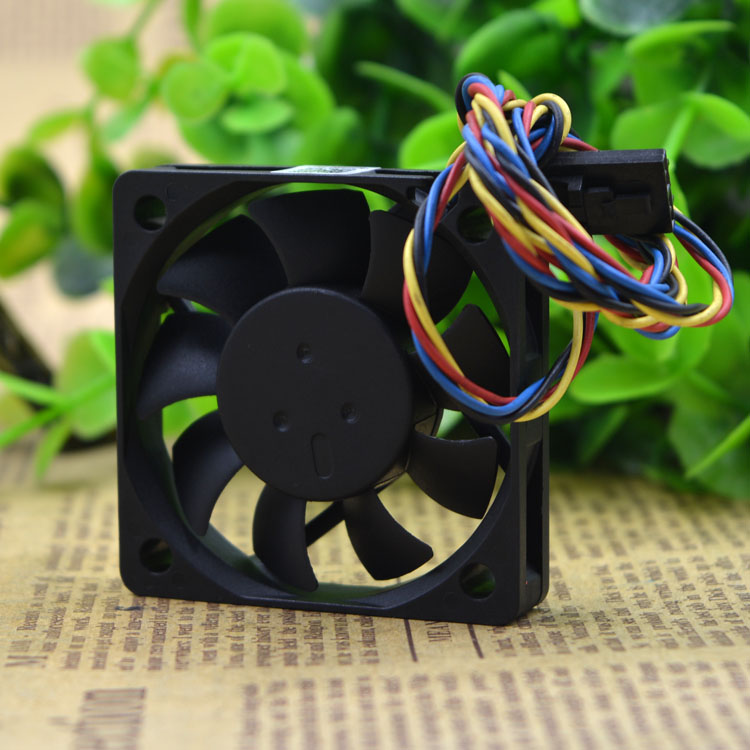

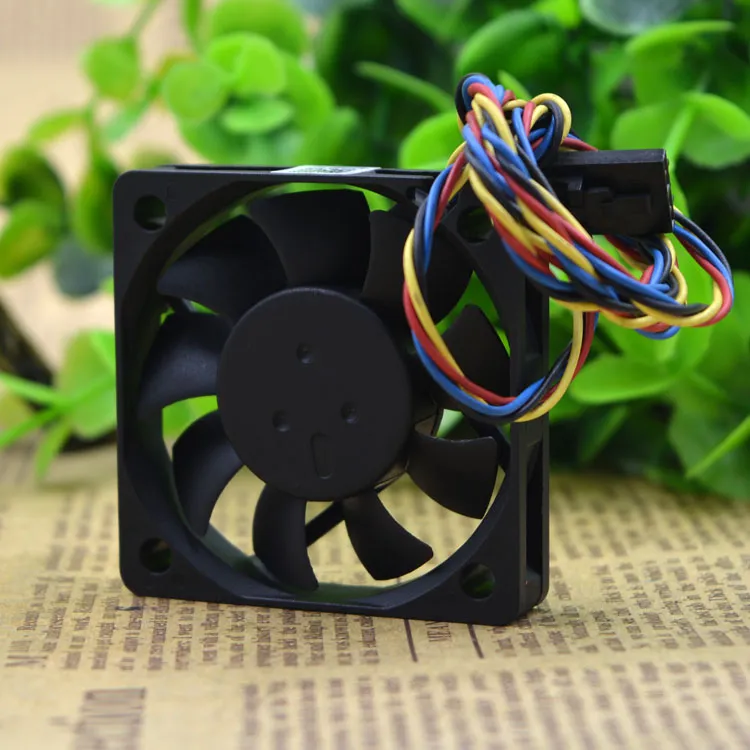

The AVC DS05010B12H is a high-speed DC fan measuring 50 x 50 x 10 mm. Manufactured by AVC, it operates on 12 VDC with a rated current of 0.22 A. Featuring a reliable double ball bearing system, it achieves a speed of 5800 RPM and an airflow of 10.95 CFM, making it suitable for applications requiring high air pressure in a compact size.
DS05010B12H Fan Parameters
Model: DS05010B12H
Manufacturer: AVC
Type: DC Fan
Dimensions: 50 x 50 x 10 mm
Rated Voltage: 12 VDC
Rated Current: 0.22 A
Rated Speed: 5800 RPM
Airflow: 10.95 CFM
Noise: 34.4 dB(A)
Bearing Type: Double Ball Bearing
Termination: 4-wire (PWM, FG)
Application
The AVC DS05010B12H fan is ideal for use in compact electronic devices, computer components (such as CPU cooling), and small-scale equipment where space is limited but efficient cooling is essential.
Additional information
| Weight | 1 kg |
|---|---|
| Power | 1.56W |
| Fan Size | 92x92x25mm |
| Air Volume | 30CFM |
| Application | Graphics Card |
| Brand Name | Cool Cold |
| Noise | 25dBA |
| Heatsink Material | Plastic |
| Type | Fan |
| Package | No |
| Lines | 4 Lines |
| Model Number | DS05010B12H |
| Bearing | Fluid Bearing |
| Fan Life | 30000 hrs |
| Power Interface | 4PIN |
| Fan Speed Control | 2500RPM |
| Compatible CPU | 1 |
