Description

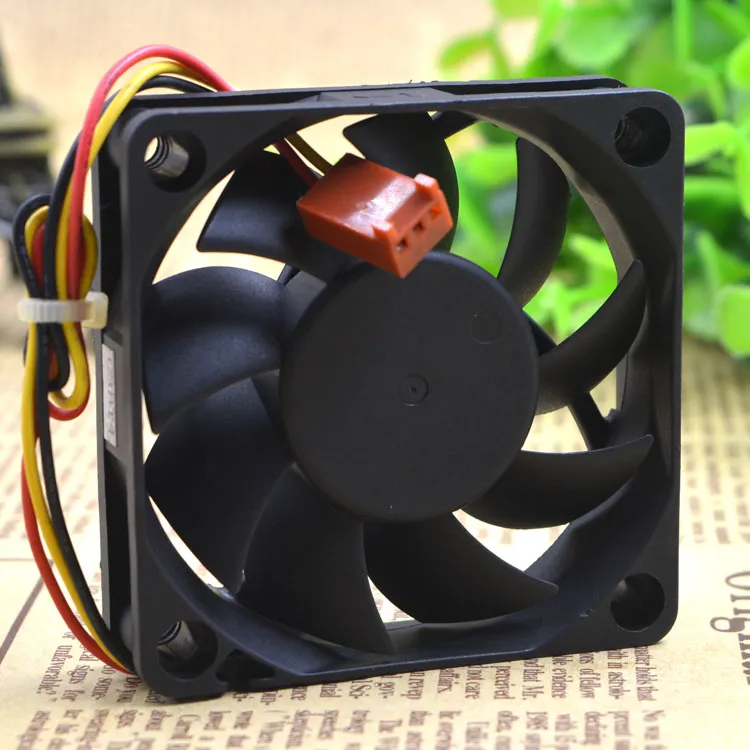

The Bi-Sonic BS601512M is a precision-engineered DC Axial Fan designed for [Thermal Management Systems] and compact electronic enclosures. This Brushless DC Cooling Fan offers robust performance in critical automation environments, ensuring optimal heat dissipation for sensitive components.
BS601512M Key Features
- Industrial Grade: Constructed with reinforced Thermoplastic PBT (UL94V-0) housing and impeller for high heat resistance and durability.
- High Performance: Optimized blade geometry delivers superior airflow-to-noise ratio, operating efficiently at medium speeds.
- Connectivity: Features a 3-wire configuration with Tachometer Signal output for real-time speed monitoring and feedback control.
- Reliability: Engineered with a precision bearing system designed for continuous duty cycles and extended operational lifespan.
Technical Specifications for BS601512M
Comprehensive engineering data for verification:
| Part Number | BS601512M |
| Manufacturer | Bi-Sonic Technology |
| Rated Voltage | 12V DC |
| Operating Voltage Range | 10.2 ~ 13.8 VDC |
| Rated Current | 0.16 A |
| Input Power | 1.92 W |
| Rated Speed | 4,200 RPM ±10% |
| Max Airflow | 18.5 CFM (0.52 m³/min) |
| Static Pressure | 0.14 Inch-H2O |
| Noise Level | 31 dBA |
| Dimensions (H x W x D) | 60mm x 60mm x 15mm |
| Bearing System | Precision Ball Bearing |
| Termination / Wire Count | 3-Wire (Lead Wire UL1007 AWG#26) |
| Output Signal | Tachometer / Frequency Generator (FG) |
| Housing Material | Thermoplastic PBT (UL94V-0) |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Life Expectancy | 50,000 Hours @ 25°C |
| Net Weight | 45 g |
| Safety Approvals | UL, cUL, TUV, CE |
Industrial Applications
Frequently deployed in [Server Cabinet Cooling], [Power Supply Units], and [Medical Instrumentation]. This unit is critical for controlling [Internal Operating Temperatures] to prevent thermal throttling in embedded systems.
Installation & Quality Assurance
This BS601512M is a genuine spare part. Please refer to the official Bi-Sonic manual for wiring diagrams (Red: +, Black: -, Yellow: Signal) and firmware configuration.
