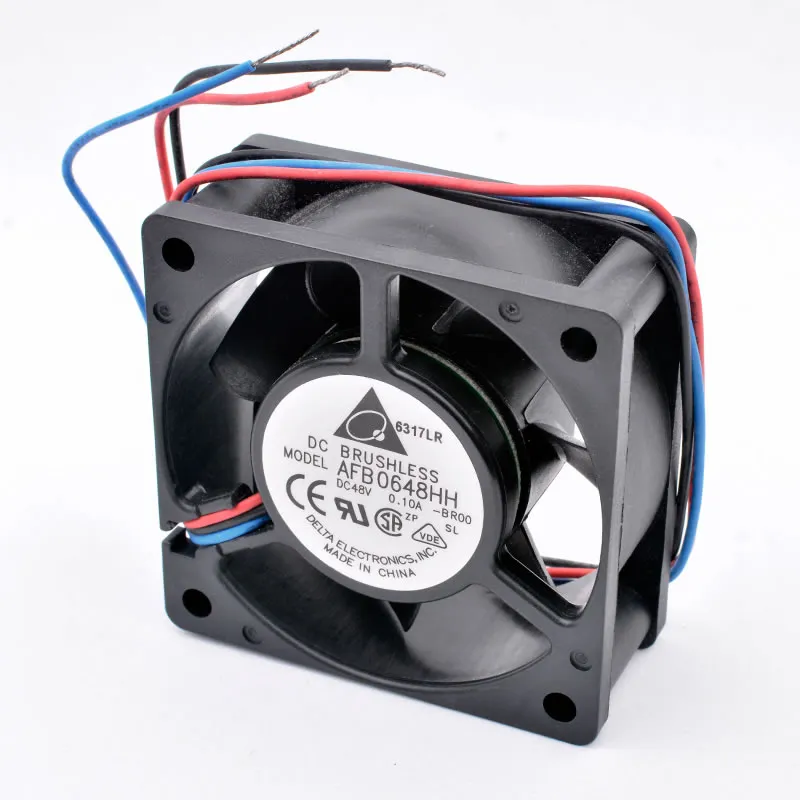

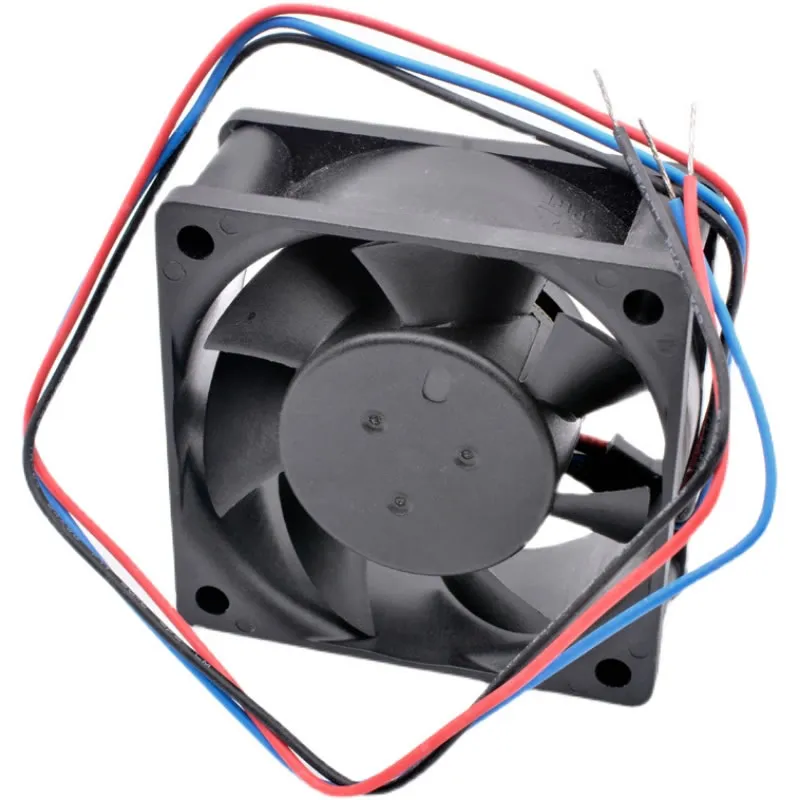

Delta AFB0648HH-BR00 DC48V 0.10A 3-wires cooling fan

$16.99

SKU: AFB0648HH-BR00 Category: Tag: Brand:

Description

Model: AFB0648HH-BR00
Brand: Delta
Appearance size: 60X60X25MM
Screw hole distance: 50MM
Bearing: High precision double ball bearing
Voltage: DC 48V
Current: 0.10a
Power: 4.8W
Speed: 5000RPM
Noise: 40dB A
Air volume: 27.55CFM
Line length: 20CM
Interface: motherboard 3PIN interface
Fan frame: one-time injection molding, PBT+30% glass fiber VO grade flame retardant
Fan blade: one-time injection molding, PBT + 30% glass fiber + VO grade flame retardant.
Fan rotation direction: anticlockwise when viewed from the direction of the fan blades
Operating temperature: -10 degrees Celsius to +70 degrees Celsius
Storage temperature: -40 degrees Celsius to +70 degrees Celsius
Power range: plus or minus 15% of the rated power
Insulation resistance: greater than 500 megohms
Withstand voltage: sink leakage current 0.5mA 500V/1 minute
Working life: 80,000 hours at an ambient temperature of 25 degrees
Scope of application: industrial equipment such as frequency converters

Additional information

Weight 1 kg
