Description
80 * 80 * 25 0.33A Fan parameters:

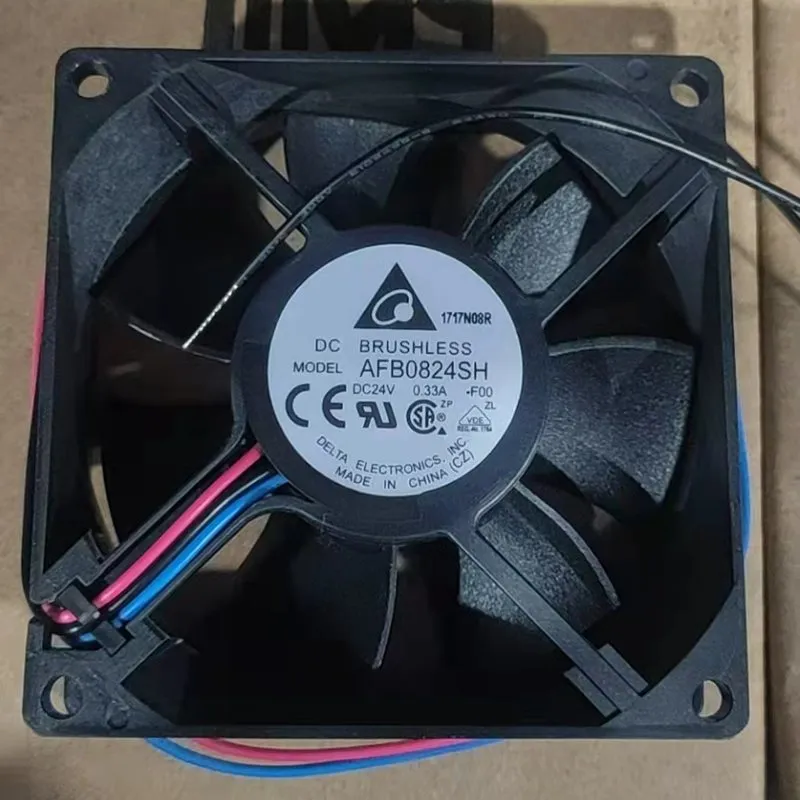

Model: AFB0824SH
Lead: 3PIN speed function
Size: 80 * 80 * 25.4mm
Voltage: DC 24V
Wind pressure: 0.267 IN H2O
Noise: 40 d-BA
There is no connector by default, please contact us if you need to install a connector!
AFB0824SH, have 2-wires
AFB0824SH-F00, Have 3-Wires,With speed test control
AFB0824SH-R00, Have 3-Wires,With stop rotation warning
Additional information
| Weight | 0.5 kg |
|---|---|
| Model Number | AFB0824SH |
| Brand Name | Delta |
| Air Volume | 30CFM |
| Lines | 3 Lines |
| Application | Graphics Card |
| Power | 3.84W |
| Heatsink Material | Copper & Aluminum |
| Type | Fan |
| Package | No |
| Fan Speed Control | 2500RPM |
| Fan Size | 80x80x25mm |
| Compatible CPU | 1 |
| Bearing | Fluid Bearing |
| Fan Life | 30000 hrs |
| Model | AFB0824SH 2-Wires, AFB0824SH-F00 3-Wires, AFB0824SH-R00 3-Wires |
| Series | AFB |
| RPM | 4000RPM |
| Voltage Rated | 24VDC |
| Operating Temperature | -10~+60⁰C |
| Air Flow | 46.62CFM (1.320 m3/min) |
| Noise | 40.0 dB(A) |
| Current Rating | 0.16A |
| Lifetime @ Temp | 70000 Hrs@40⁰C |
| Material Frame | Plastic |
