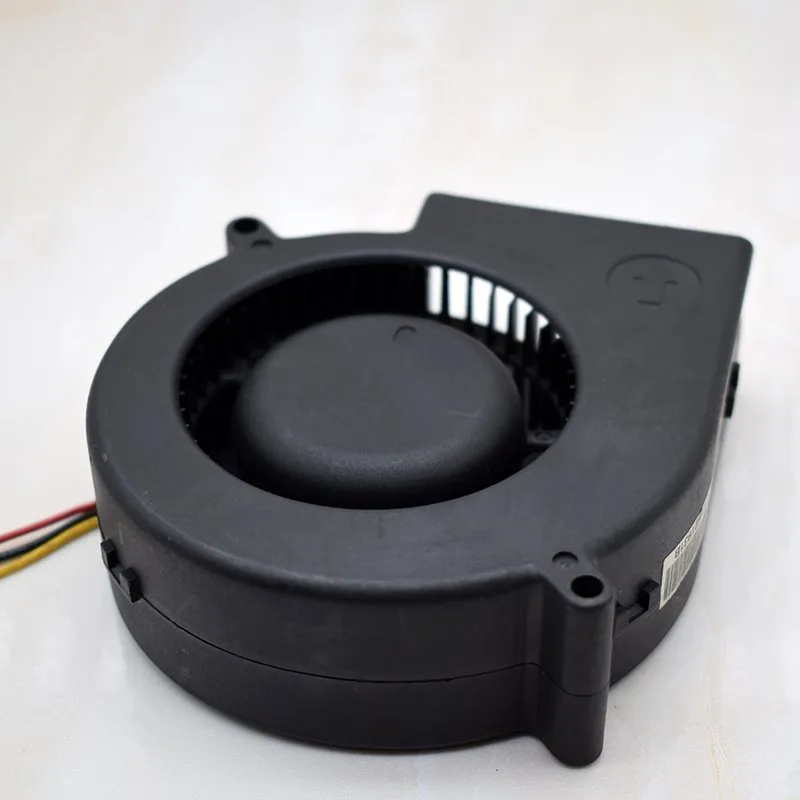

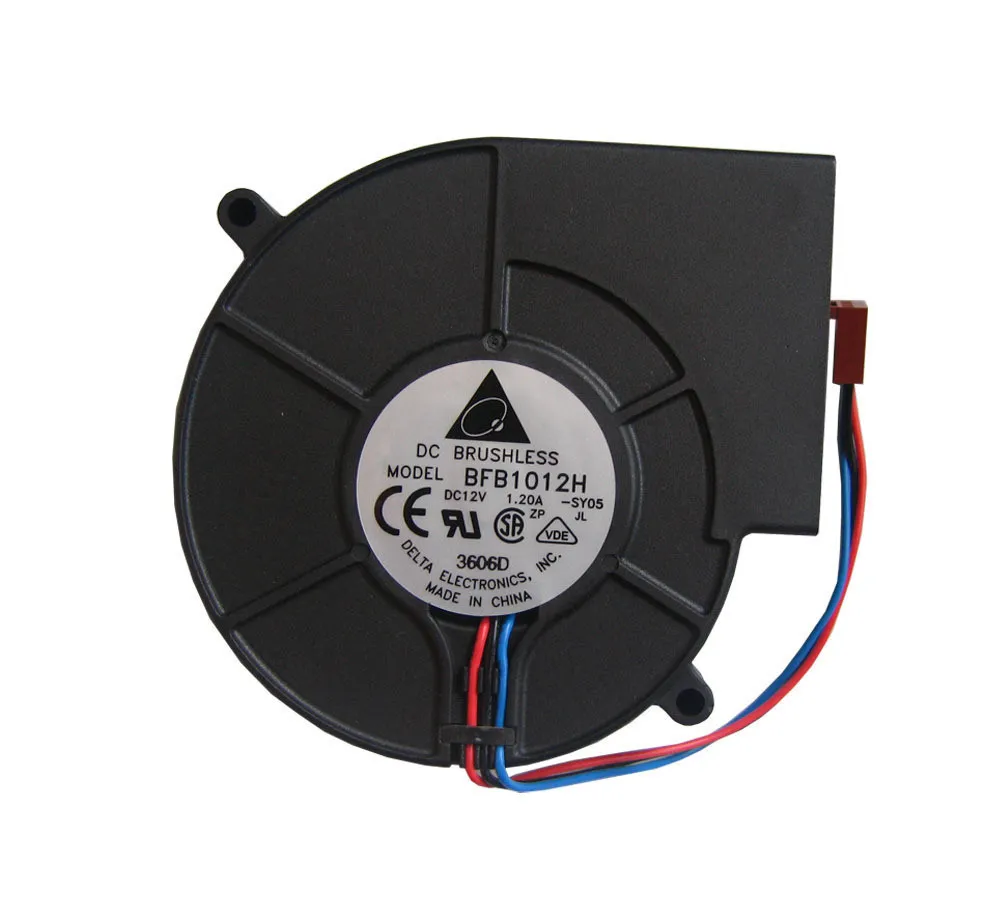

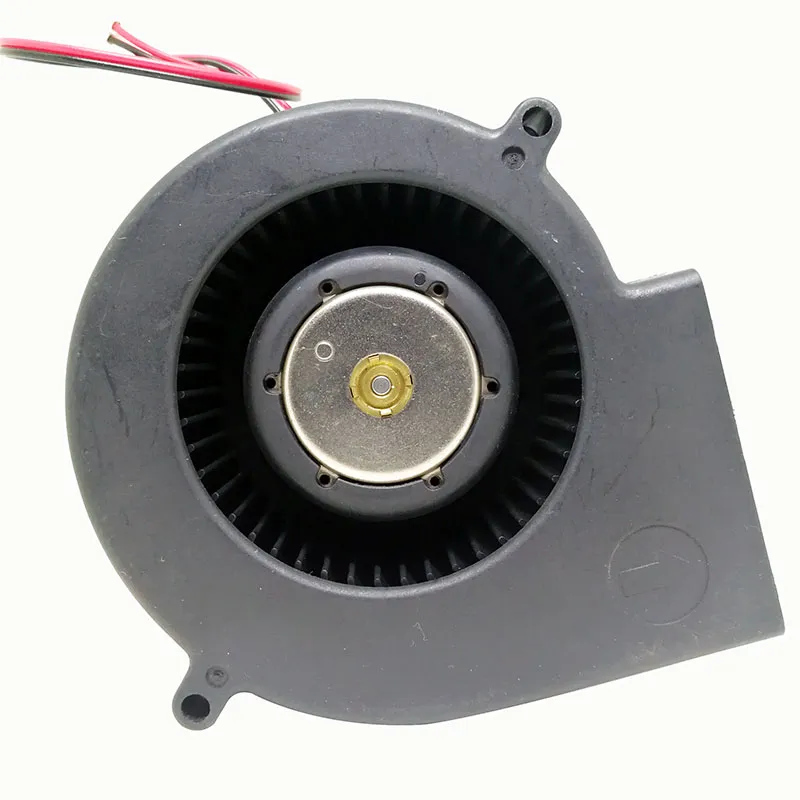

Delta BFB1012H 12V 1.20A centrifugal turbine blower fan

(1 customer review)


19 in stock

SKU: BFB1012H Category: Tags: , Brand:


Brand: DELTA
Model: BFB1012H
Lead wire: 3 pin
Size: 97*94*33mm
Voltage: DC 12V
Operating voltage range: 4.0-13.8V
Marking current: 1.2A
Working current: 0.8A
Working input power: 9.6W
Speed: 3600 RPM
Air volume: 25.43 CFM
Wind pressure: 1.00 IN H2 O
Noise: 52 d-BA
Fan frame: one-shot injection molding, PBT+30% glass fiber+VO grade flame retardant
Fengye: one-shot injection molding, PBT + 30% glass fiber + VO flame retardant
Fan rotation direction: counterclockwise when viewed from the direction of the fan blade
Storage temperature: -50 degrees Celsius to +90 degrees Celsius
Bearings: high-precision ball bearings
Insulation resistance: greater than 500 megohms
Withstand voltage: sink leakage current 0.5mA 500V/1 minute
Working life: 80,000 hours at an ambient temperature of 25 degrees

Additional information

Weight 1 kg
Model Number


Brand Name


1 review for Delta BFB1012H 12V 1.20A centrifugal turbine blower fan

  1. 99go

    Very pleased with the fans. Installed two when received and they worked as expected. Will purchase again when more are required.
