Description

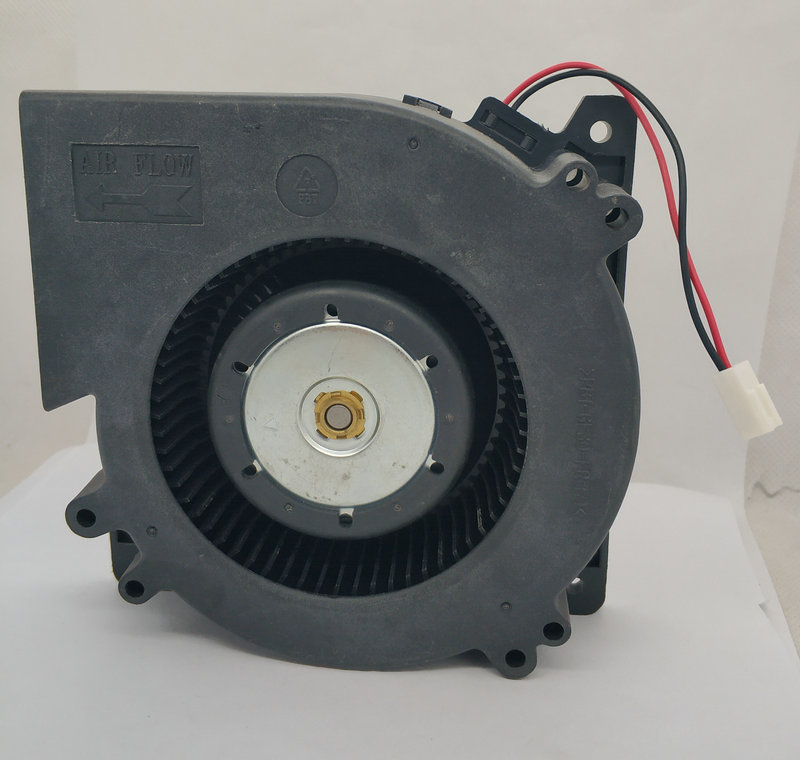

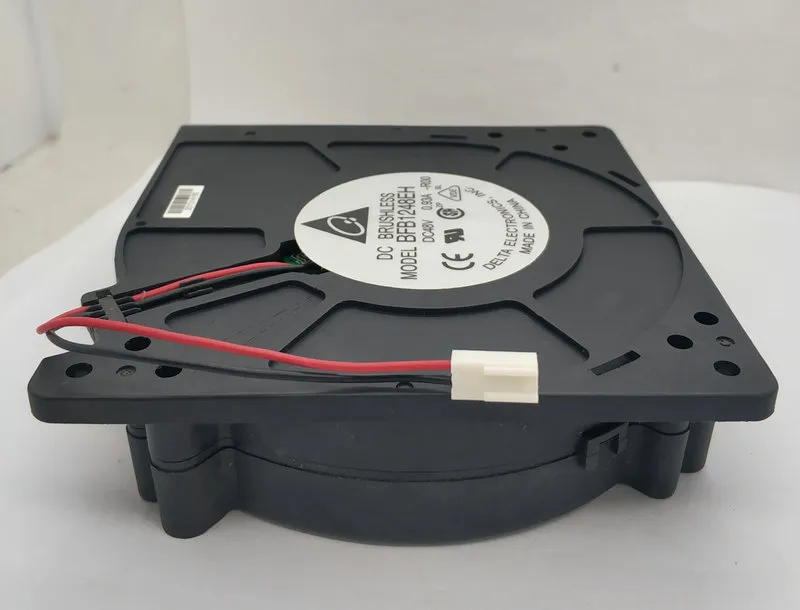

The Delta BFB1248EH is a high-performance DC blower with dimensions of 120x120x32mm. Operating on 48V DC, it provides a rated speed of 4000RPM and a powerful airflow of 54.8CFM. Engineered with a ball bearing system, this blower is designed for applications requiring high static pressure and strong cooling performance.
BFB1248EH Fan Parameters
Model: BFB1248EH
Manufacturer: Delta
Type: DC Blower
dimensions: 120x120x32mm
Rated Voltage: 48V DC
Rated Current: 0.93A
Rated Speed: 4000RPM
Airflow: 54.8CFM
Air Pressure: 12.43mmH2O
Noise: 56.4dB-A
Weight: 205 grams
Bearing Type: Ball Bearing
Lifetime: 70000 hrs at 40°C
Material: Plastic (Frame and Blade)
Operating Temperature: -10 to +60°C
Application
The Delta BFB1248EH is commonly used in industrial and server equipment where focused, high-pressure airflow is critical for cooling. Its applications include server cabinets, telecommunications equipment, and other systems requiring effective heat dissipation in confined spaces.
