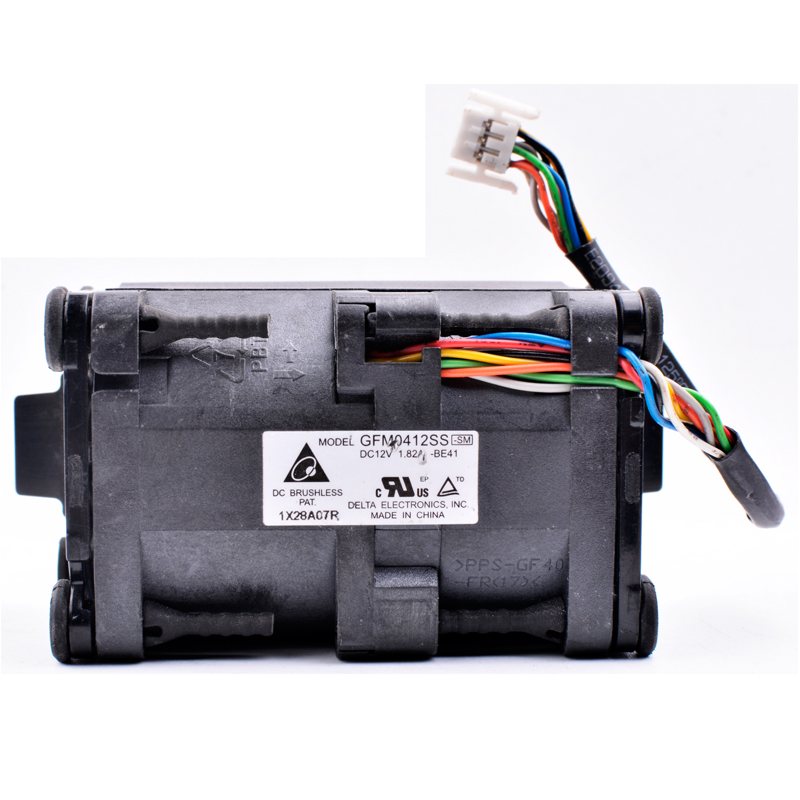

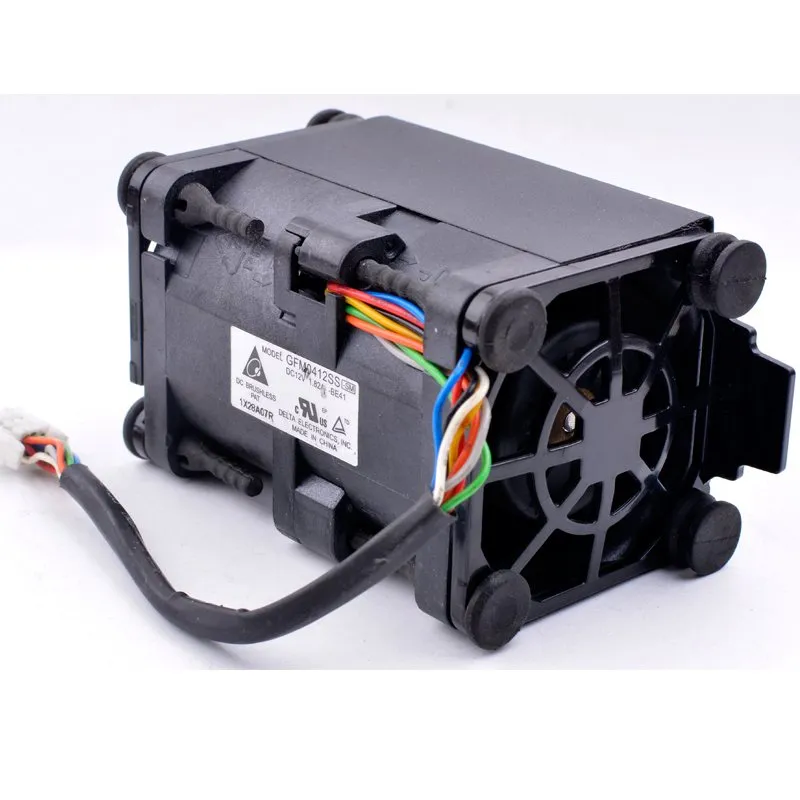

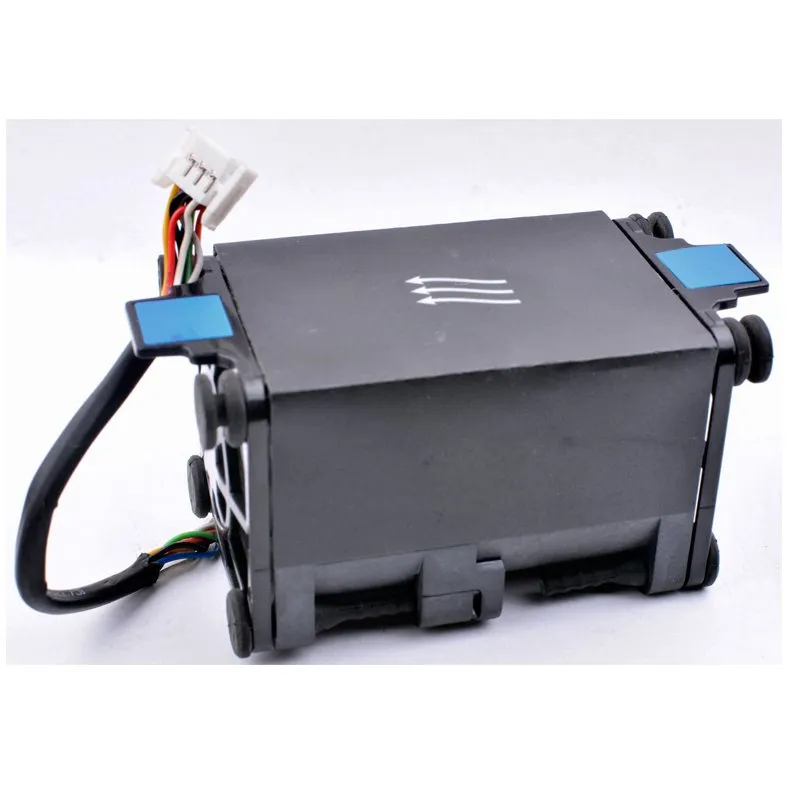

Delta GFM0412SS-SM 12V 1.82A HP DL360P/E Gen8 cooling fan 654752-001/667882-001

Description

The Delta GFM0412SS-SM is a high-performance DC Axial Fan designed for demanding applications, measuring 40 x 40 x 56 mm. This fan operates on 12 VDC and delivers a robust airflow of 21.6 CFM and an impressive static pressure of 3.416 in H2O. Its dual-rotor design and high speed of 19000/19250 RPM make it highly effective for concentrated cooling in servers and other equipment where space is limited and powerful airflow is critical.

GFM0412SS-SM Fan Parameters
Model: GFM0412SS-SM
Manufacturer: Delta
Type: DC Axial Fan (Dual)
Dimensions: 40 x 40 x 56 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.8 VDC to 12.6 VDC
Rated Current: 1.82 A
Rated Input Power: 21.84 W
Rated Speed: 19000/19250 RPM
Airflow: 21.6 CFM
Static Pressure: 3.416 in H2O
Noise Level: 68.5 dB(A)
Bearing Type: Ball Bearing
Expected Life: 70000 Hrs @ 40 °C
Weight: 102.06 g
Termination: 4 Wire Leads

Application
The GFM0412SS-SM is a specialized fan for high-density electronic equipment. It is typically used for cooling processors, power supplies, and other components within confined server chassis, such as those found in HP Proliant DL360 G8 and Dell PowerEdge R620 servers. Its high static pressure capability allows it to effectively push air through restrictive channels and densely packed components.
