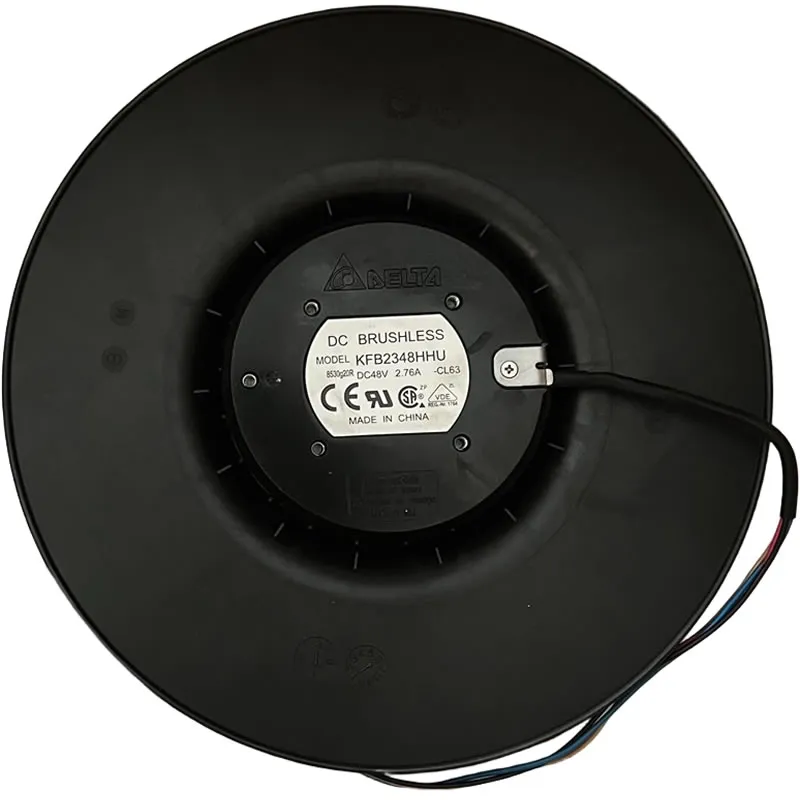

Delta KFB2348HHU DC48V 2.76A 4-wires cooling fan

$36.99

99 in stock

SKU: KFB2348HHU Category: Tags: , Brand:

Description

Model:KFB2348HHU
Voltage: 48VDC
Size / Dimension: Round-225mm diameter
Width: 99.00mm
Airflow: 735.1 CFM (20.58m³ / min)
Static pressure: 1.990 inches of water column (495.7 Pa)
Bearing type: ball
Fan type: electric impeller
Features: rotor lock protection, PWM control, speed sensor (tachometer)
Noise: 71.0 dB (A)
Power: (W) 105.6W
RPM: 2600 RPM
Termination: 4 leads
Intrusion protection: IP56-dustproof and water resistant
Working temperature: -13 ~ 158 ° F (-25 ~ 70 ° C)
Approval: CE, CSA, UL, VDE
Weight: 2.6 pounds (1.2 kg)
Standards compliant
RoHS Directive: The status is RoHS compliant
Lead-free status: lead-free

Additional information

Weight 1.5 kg
Model

KFB2348HHU

Brand

Delta

Size

225mm Dia x 99mm W

Voltage

48VDC

Current Rating

2.2A

Power (Watts)

105.6W

RPM

2600 RPM

Ingress Protection

IP56 – Dust Protected, Water Resistant
