EBMPAPST 412FM 12V 0.045A 0.55W cooling fan

Description

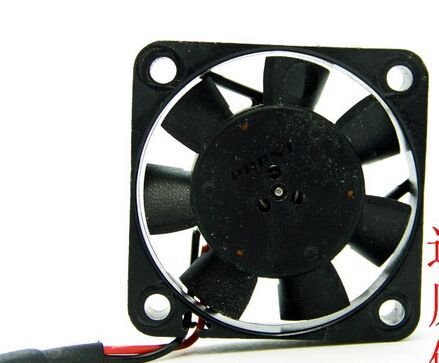

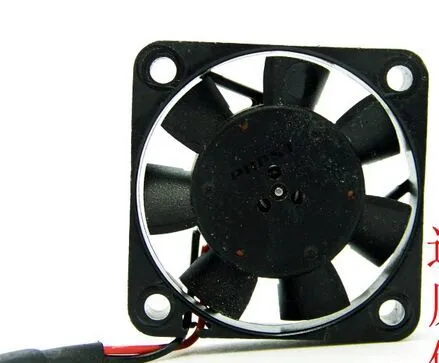

The ebmpapst 412FM is a compact DC Axial Fan measuring 40 x 40 x 10 mm. It operates on a 12 VDC nominal voltage, offering a reliable and quiet cooling solution for a wide variety of electronic applications. With a low noise level of 17 dB(A) and a long service life, this fan is a great choice for devices where both performance and acoustic comfort are important.

412FM Fan Parameters
Model: 412FM
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: measuring 40 x 40 x 10 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10 VDC to 14 VDC
Rated Current: 0.045 A
Rated Input Power: 0.55 W
Rated Speed: 4300 RPM
Airflow: 6 m³/h (3.53 CFM)
Noise Level: 17 dB(A)
Bearing Type: Sintec Sleeve Bearing
Termination: 2 Wire Leads
Weight: 17 g
Frame Material: Plastic (PBT)
Impeller Material: Plastic (PA)
Operating Temperature: -20 to 70 °C
Expected Life: 45,000 Hrs at 20 °C; 15,000 Hrs at 60 °C

Application
The ebmpapst 412FM is typically used in a wide range of electronic equipment, including computers, networking devices, and small-scale systems where efficient and quiet heat dissipation is required in a compact space.
