Description

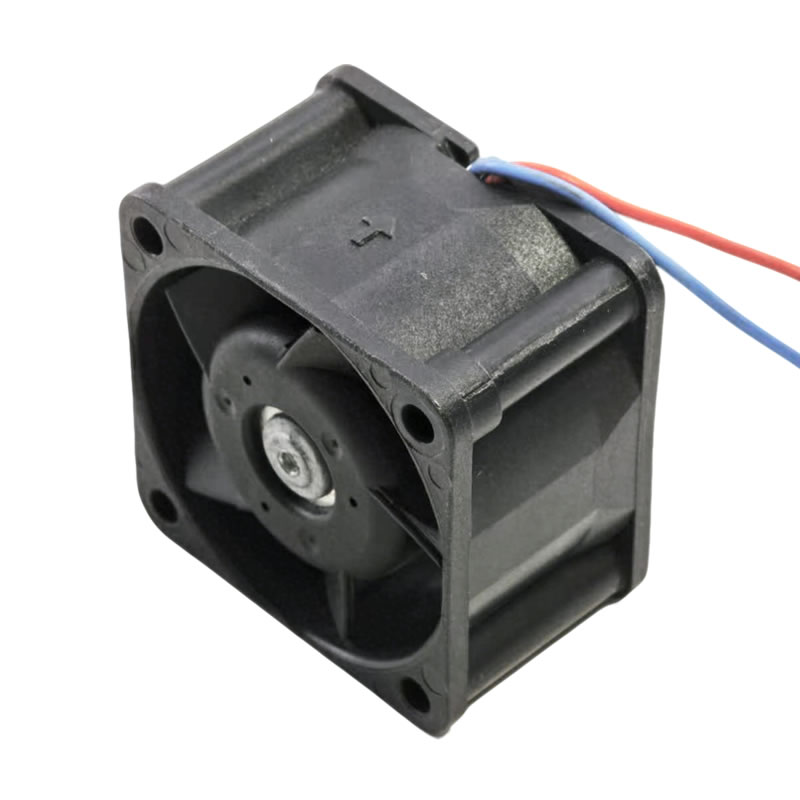

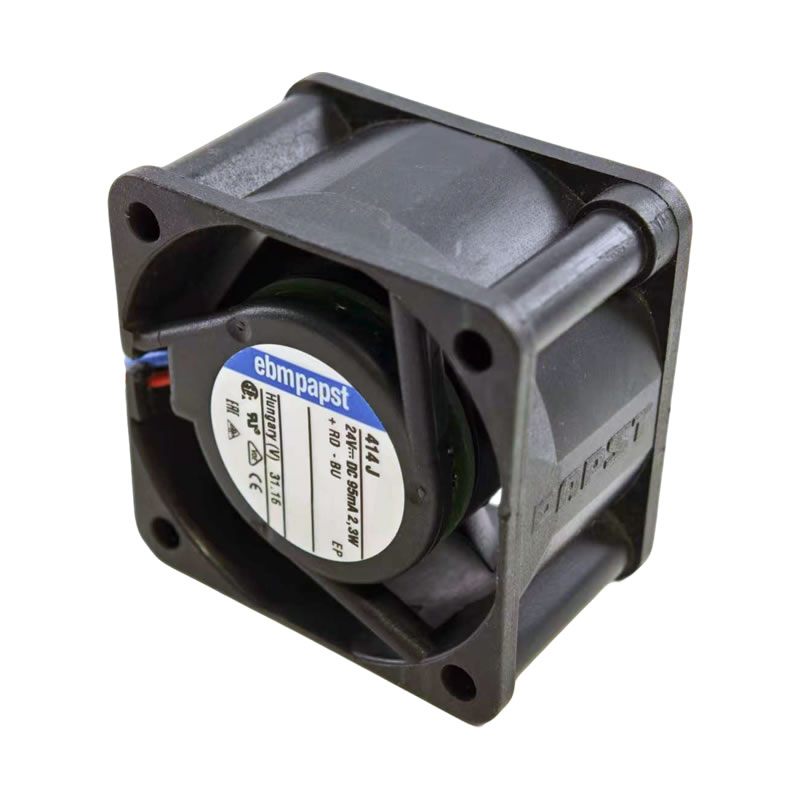

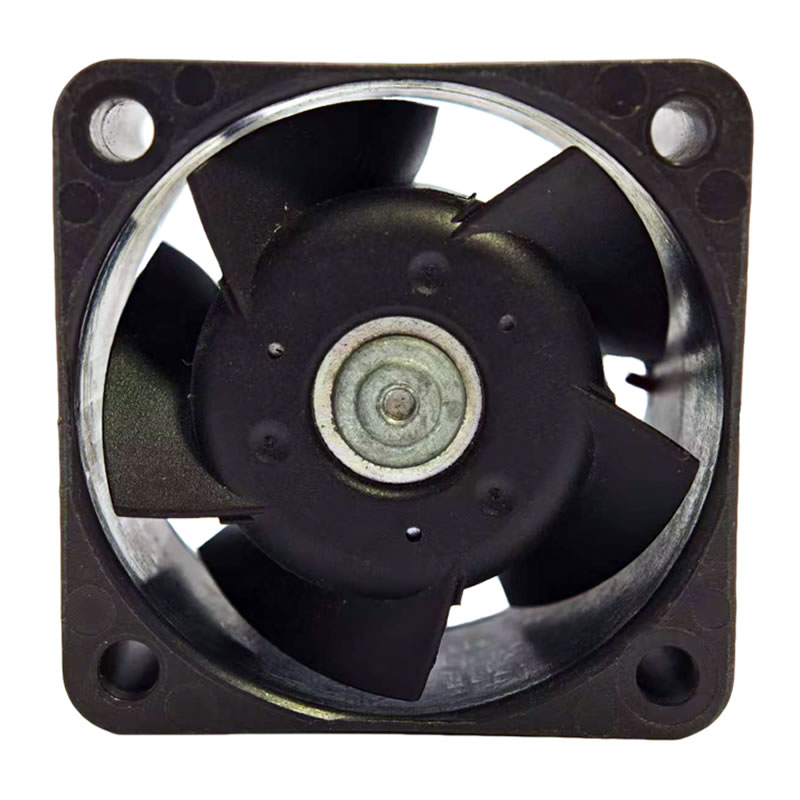

The ebmpapst 414J is a high-performance 24VDC axial compact fan from the 400J series, measuring 40x40x25mm. It is designed to provide substantial airflow even at high back pressure, making it suitable for applications with restricted air paths. This fan operates at a high speed of 10300RPM, moving 11.2CFM (19m³/h) of air, while consuming 2.3W of power. It utilizes ball bearings for enhanced durability and a long lifespan. The fan is constructed with a fiberglass-reinforced PBT plastic housing and a fiberglass-reinforced PA plastic impeller. It is commonly used for cooling components in servers, inverters, power supplies, and other compact electronic equipment.
414J Fan Parameters
Manufacturer: ebmpapst
Model: 414J
Fan Type: DC Axial Fan
Dimensions: 40 x 40 x 25 mm
Rated Voltage: 24 VDC
Nominal Voltage Range: 18 ~ 27 VDC
Power Consumption: 2.3 W
Current：0.095A
Airflow: 11.2 CFM (19 m³/h)
Speed: 10300 RPM
Noise Level: 39 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Housing Material: Fiberglass-reinforced PBT Plastic
Impeller Material: Fiberglass-reinforced PA Plastic
Operating Temperature: -20 °C ~ 70 °C
Lifetime @ Temp: 60,000 Hours @ 40 °C
Weight: 50 g
Approval Agency: CSA, UL, VDE
Application: This ebmpapst DC axial fan is suitable for cooling servers, inverters, and power supplies.
