Description

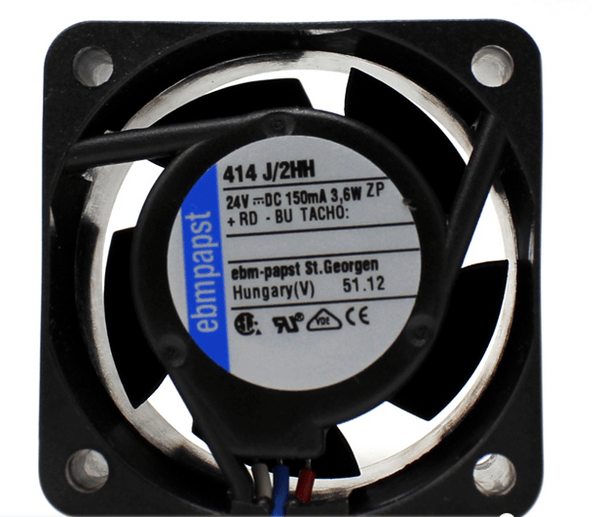

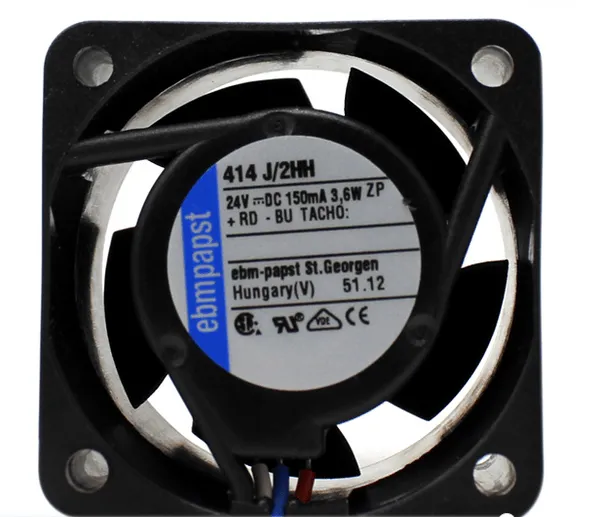

The ebmpapst 414J /2HH is a compact, high-speed DC axial fan with measuring dimensions of 40 x 40 x 25 mm. It operates on a 24V DC power supply and features a ball bearing system, providing a robust rotational speed of 13000 RPM. This fan delivers a high airflow of 25 CFM and has a noise level of 46 dBA.
414J/2HH Parameters
Model: 414J /2HH
Manufacturer: ebmpapst
Type: DC Axial Fan
Operating Voltage: 24V DC
Current: 150 mA
Power: 3.6W
Airflow: 25 CFM (42.5 m³/h)
Rotational Speed: 13000 RPM
Noise: 46 dBA
Dimensions: 40 x 40 x 25 mm
Bearing: Ball Bearing
Operating Temperature: -20 to +60 °C
Termination: 3-wire leads, with tachometer output
Application
The ebmpapst 414J /2HH is ideal for applications that require powerful, concentrated airflow in a small form factor, such as cooling inverters, power supplies, and other electronic equipment.
