Description

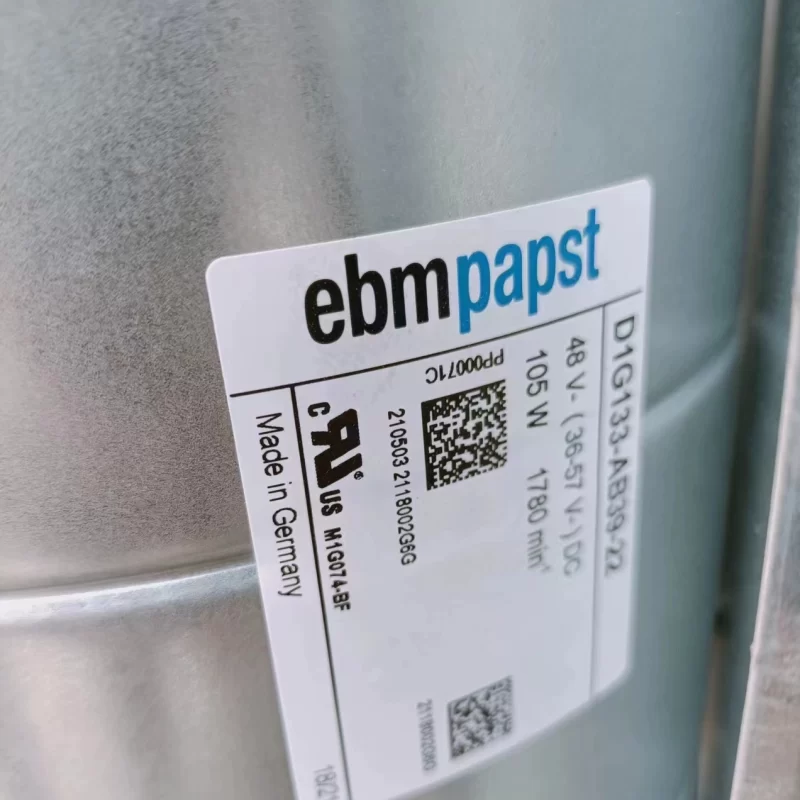

Model: D1G133-AB39-22
Manufacturer:ebmpapst
Motor: M1G074-BF
Nominal Voltage: 48VDC
Voltage Range: 36-57VDC
Rated Power: 105W
Rated Current: 2.8 A
Rated Speed: 1780 min⁻¹ (RPM)
Airflow: Approximately 26.4 CFM
Size: 133 mm
Bearing Type: Ball bearing
Protection Class: IP42
Insulation Class: “B”
Humidity Class: F0
Min. Ambient Temperature: -40 °C
Max. Ambient Temperature: +80 °C
Operating Mode: S1
Standard Compliance: EN 60950-1
Approvals: UL 1004-1, CSA C22.2 No. 77, CCC, EAC
Type: DC Centrifugal Fan, backward-curved, single-inlet
Item No. D1G133-AB39-22
Type centrifugal fan inverter cooling fan
