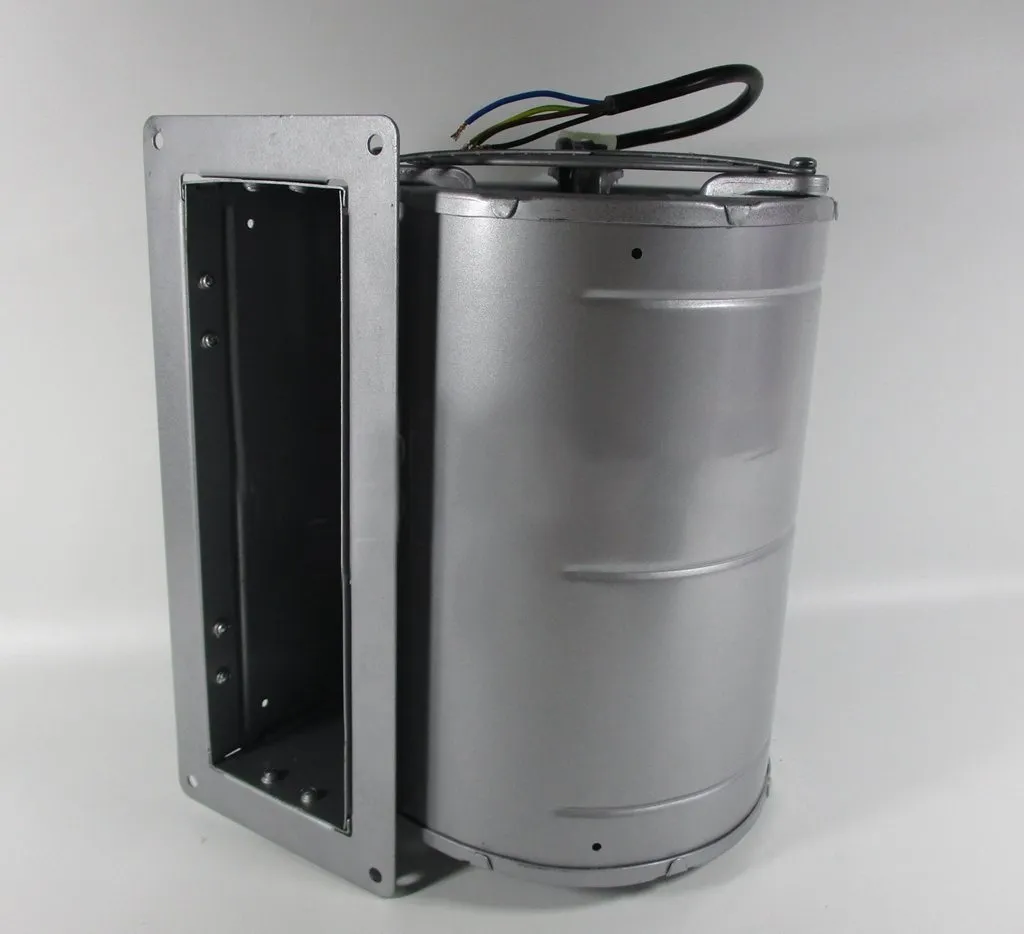

ebmpapst D2E133-AM35-B4 230V 165W Frequency converter centrifugal fan

$404.70

998 in stock

SKU: 2E133-AM35-B4 Category: Tag: Brand:

Description

Supply Voltage 230 V
Blower Type Centrifugal
AC or DC Operation AC
Air Flow 700m³/h
Series D2E 133
Height 180mm
Width 254mm
Depth 171.5mm
Dimensions 180 x 254 x 171.5mm
Fan Speed 2100rpm
Noise Level 59dB
Bearing Type Ball
Mounting Hole Spacing 92 x 238mm
Commutation Type Electronic
Vertical Hole Spacing 92mm
Horizontal Hole Spacing 238mm
Mounting Hole Diameter 5.5mm
Direction of Curve Backward/Forward
Sensor Output Type Voltage Output

Additional information

Weight 1 kg
Brand Name

ebmpapst

Application

Processor

Lines

4 Lines

Model Number

D2E133-AM35-B4

Type

Fan

Heatsink Material

Copper & Aluminum

Package

No

Fan Life

100000 hrs
