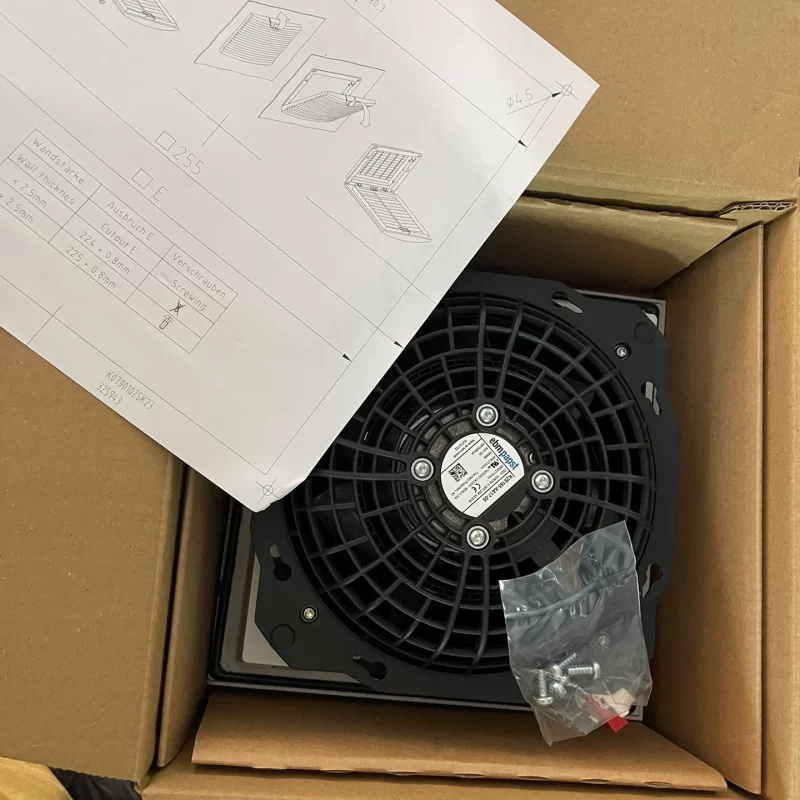

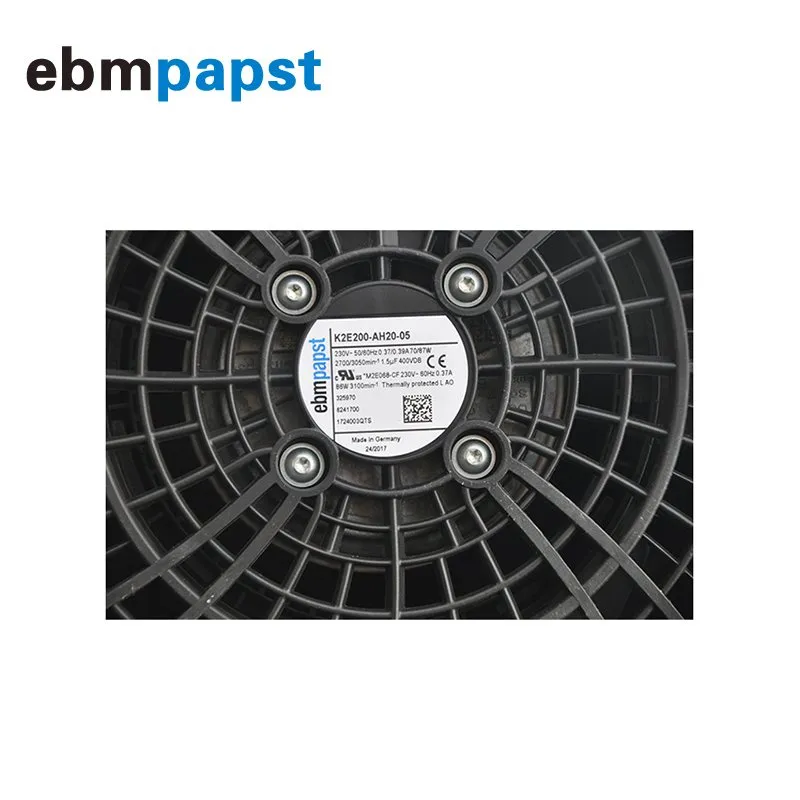

Description
Model: K2E200-AH20-05
Manufacturer: ebm-papst
Motor Type: M2E068-CF
Product Type: AC Axial Fan
Nominal Voltage: 230 VAC
Frequency: 50/60 Hz (Supports dual frequency)
Power Consumption:
70 W (at 50 Hz)
87 W (at 60 Hz)
Rated Current:
0.37 A (at 50 Hz)
0.39 A (at 60 Hz)
Capacitor: 1.5 µF
Capacitor Voltage: 400 VDB
Starting Current: Approx. 0.87 A (at 50 Hz)
Speed:
2700 min⁻¹ (RPM) (at 50 Hz)
3050 min⁻¹ (RPM) (at 60 Hz)
Airflow: Some sources mention approximately 600 m³/h (Note that accurate airflow typically requires referencing performance curves; this value might be a reference value under specific operating conditions).
Minimum Back Pressure: 0 Pa
Size: 200 mm (Fan size)
Form Factor: Typically an axial fan with a square mounting frame.
Bearing Type: Ball Bearing.
Degree of Protection: IP44 (Dependent on installation method and position).
Insulation Class: B (Inferred from information on related models; please refer to official documentation for exact class).
Material: Some sources indicate the housing or impeller may be made of metal or plastic; please refer to the official datasheet for specific details.
Operating Temperature Range: -30 °C to 55 °C (Some sources show a slightly different range, e.g., -40°C to +75°C, but -30°C to 55°C is mentioned in multiple sources; it is recommended to check the official datasheet for confirmation).
Noise Level: Data varies significantly across different sources, with values like 32 dB, 38 dB, and 65 dB mentioned. Actual noise level depends on operating conditions and installation environment; for precise values, please refer to official performance curves and noise data.
Installation Position: Flexible; please refer to the official installation guide for specific restrictions.
Other Information:
This fan model is commonly used for ventilation and cooling in electrical cabinets, control panels, and industrial equipment.
CE certified.

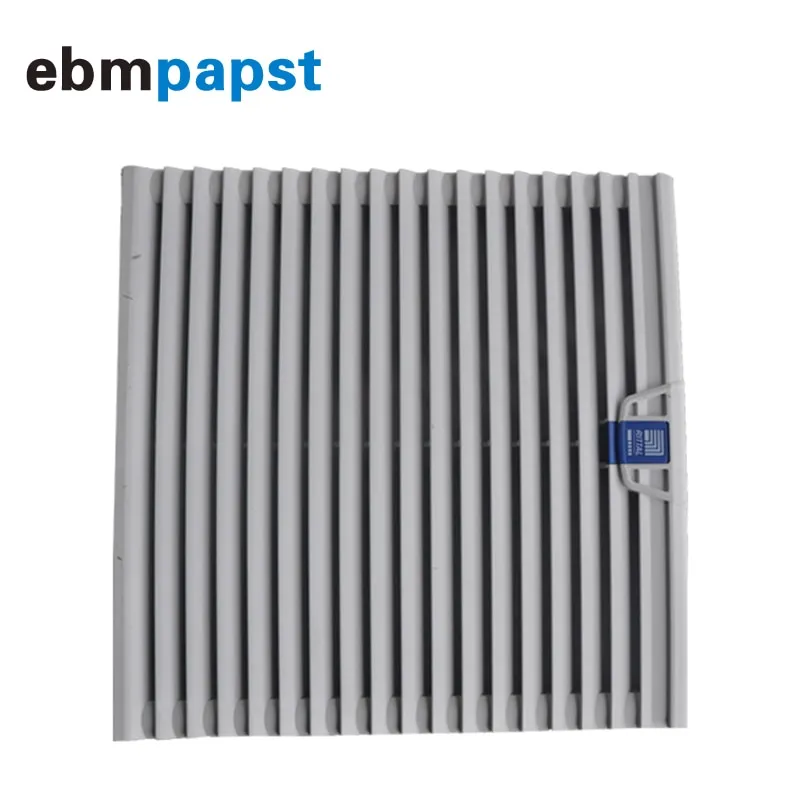

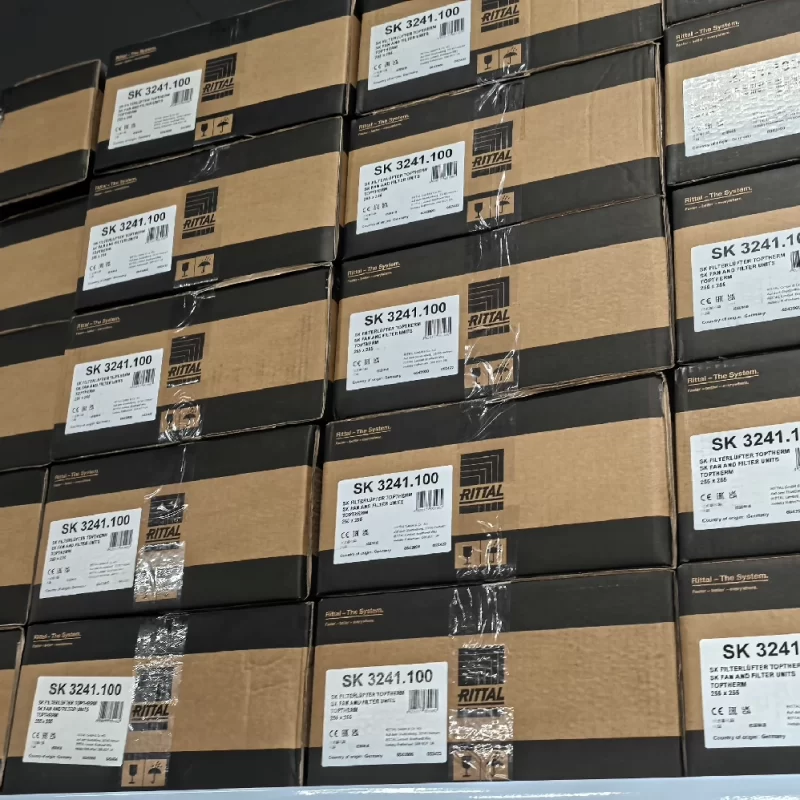

SK3243.100 Rittal
