Description

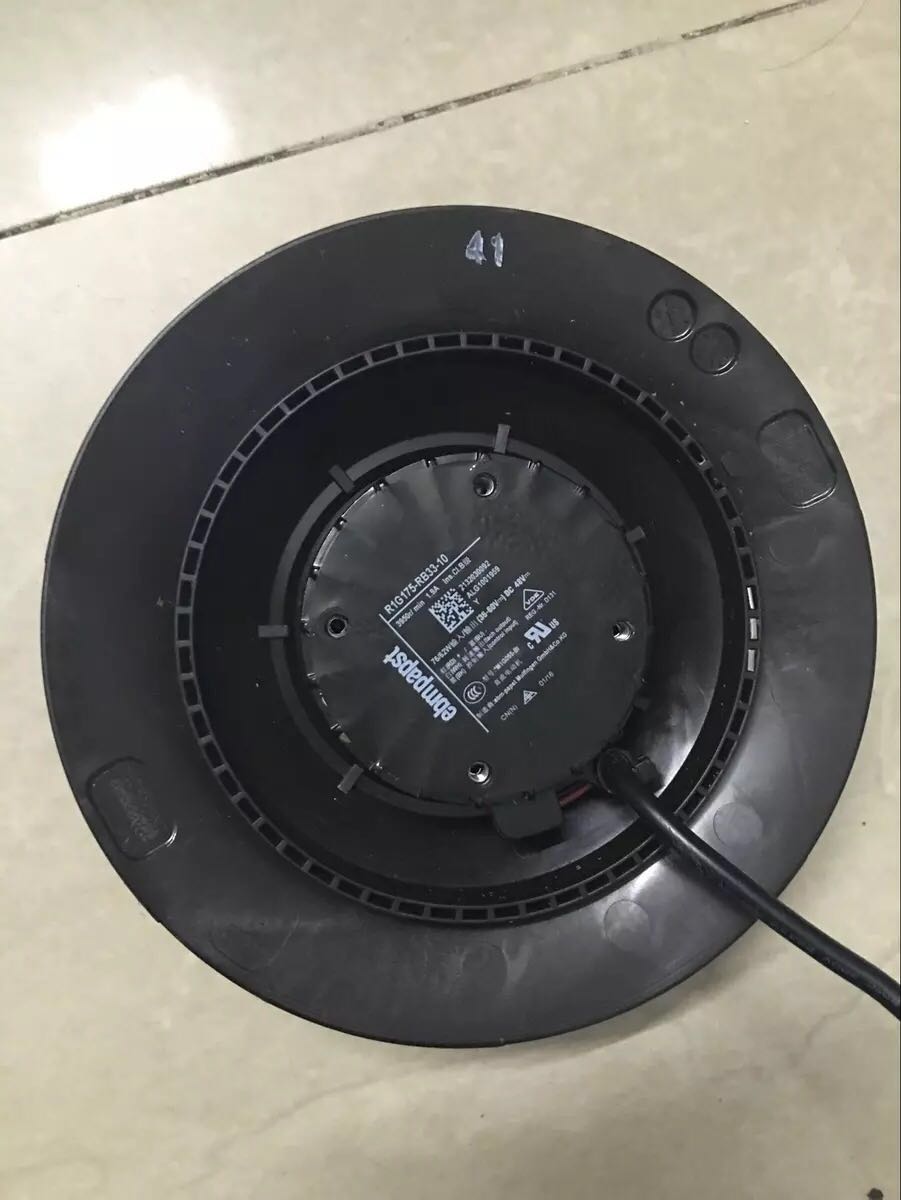

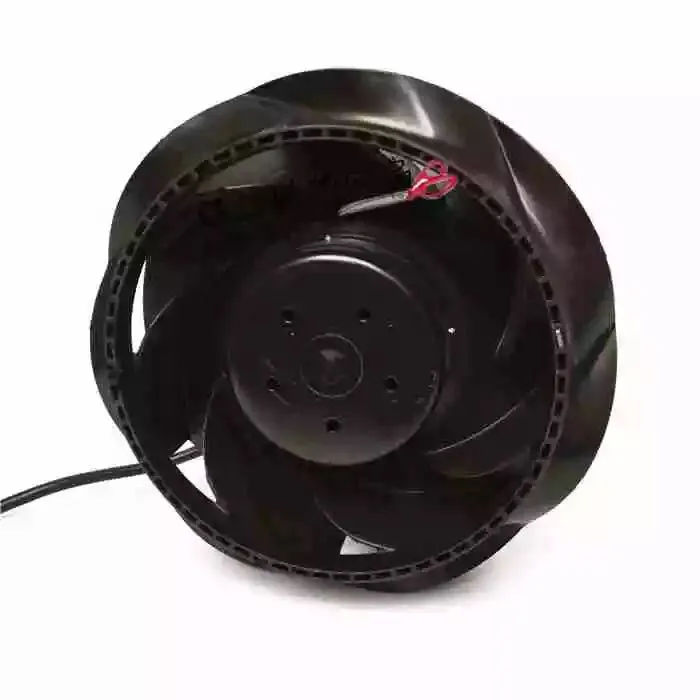

The ebmpapst R1G175-RB33-10 is a high-power DC Centrifugal Fan with an impeller size of 175 mm and dimensions of 175 x 68 mm. Driven by the high-performance M1G055-BI external rotor motor, this backward-curved fan is a key model in the aerodynamically optimized RadiCal series. Operating on a nominal 48 VDC with a wide input range of 36-60 VDC, it features a robust power input of 76 W and an output of 62 W. At its maximum speed of 3950 RPM, it delivers a massive airflow of 341.4 CFM (580 m³/h). Specifically engineered as an energy-saving ventilation solution for high-density Fan Filter Units (FFU) and telecommunications infrastructure, it features a glass-fiber reinforced PA plastic impeller designed to maximize static pressure efficiency. With integrated 0-10V or PWM speed control, IP54 protection, and a four-wire termination system, it provides superior reliability and precise airflow management for mission-critical industrial and medical cooling applications.

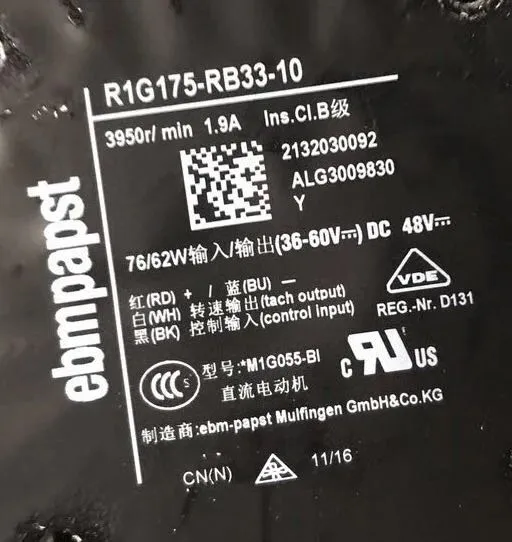

R1G175-RB33-10 Fan Parameters
Manufacturer: ebmpapst
Model Number: R1G175-RB33-10
Motor Model: M1G055-BI
Type: DC Centrifugal Fan (Backward-curved, RadiCal)
Dimensions: 175 x 68 mm
Impeller Size: 175 mm
Nominal Voltage: 48 VDC
Operating Voltage Range: 36 to 60 VDC
Speed: 3950 RPM
Power Input/Output: 76 / 62 W
Rated Current: 1.9 A
Max. Airflow: 341.4 CFM (580 m³/h)
Max. Static Pressure: 580 Pa (2.33 inAq)
Noise Level: 68 dB(A)
Weight: 0.85 kg
Termination: 4 Wire Leads
Bearing Type: Ball Bearing
Housing Material: Not applicable (Rotor surface passivated)
Impeller Material: PA plastic, glass-fiber reinforced
Number of Blades: 7
Direction of Rotation: Clockwise (viewed toward rotor)
Degree of Protection: IP54
Insulation Class: B
Operating Temp. Range: -25 °C to +60 °C
Control Input: 0-10 VDC / PWM
Signal Output: Tacho signal
Safety Protections: Locked-rotor protection, Reverse polarity protection, Soft start, Over-temperature protection
Approvals: VDE, CE, UL, CSA, CCC, EAC
Application
This high-performance EC centrifugal fan is primarily utilized in compact Fan Filter Units (FFU), biological safety cabinets, and pharmaceutical mini-environments where precise 48V DC power control is required. It is also an ideal solution for telecommunications outdoor cabinets, high-density server rack cooling, medical diagnostic equipment, and energy storage systems (ESS) that demand robust static pressure to overcome HEPA filtration or dense electronic component resistance.
