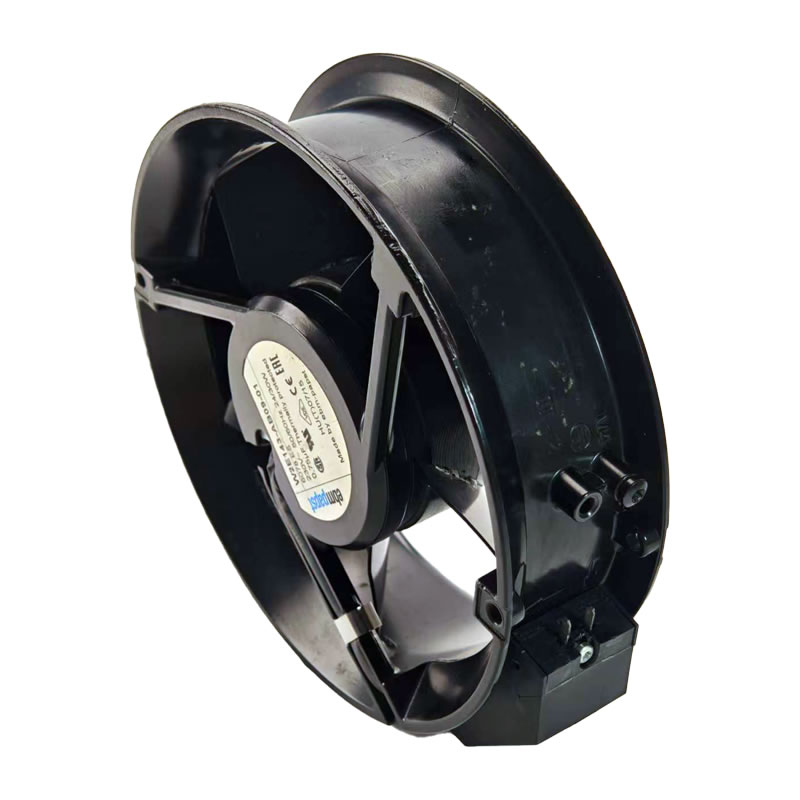

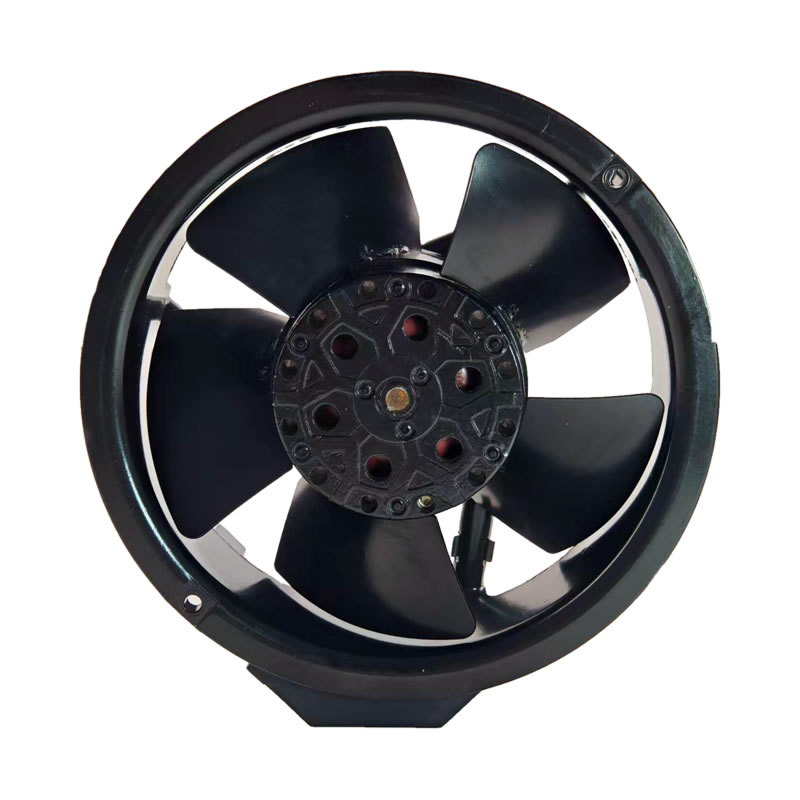

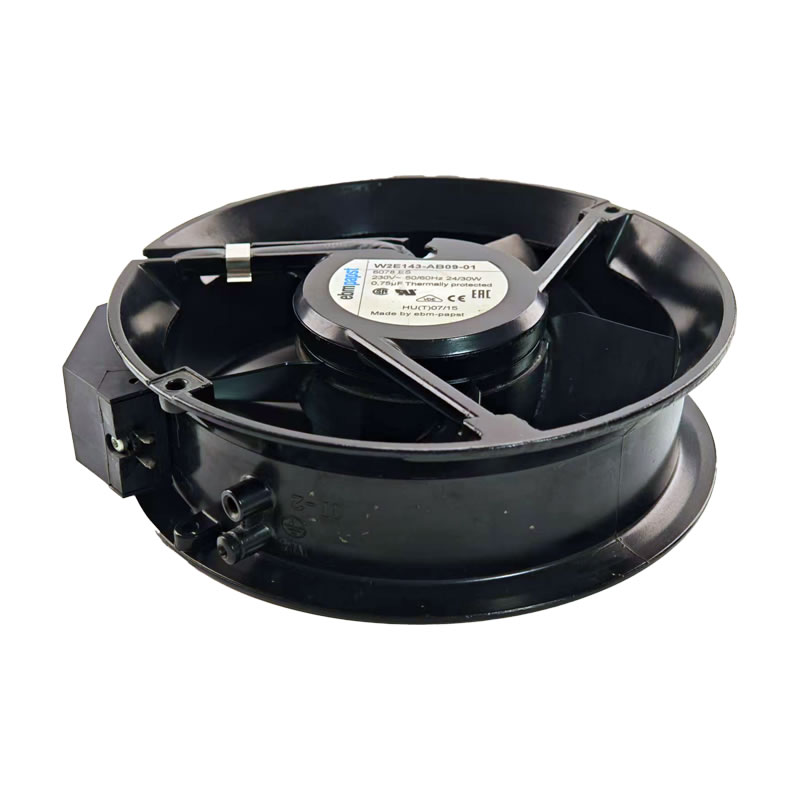

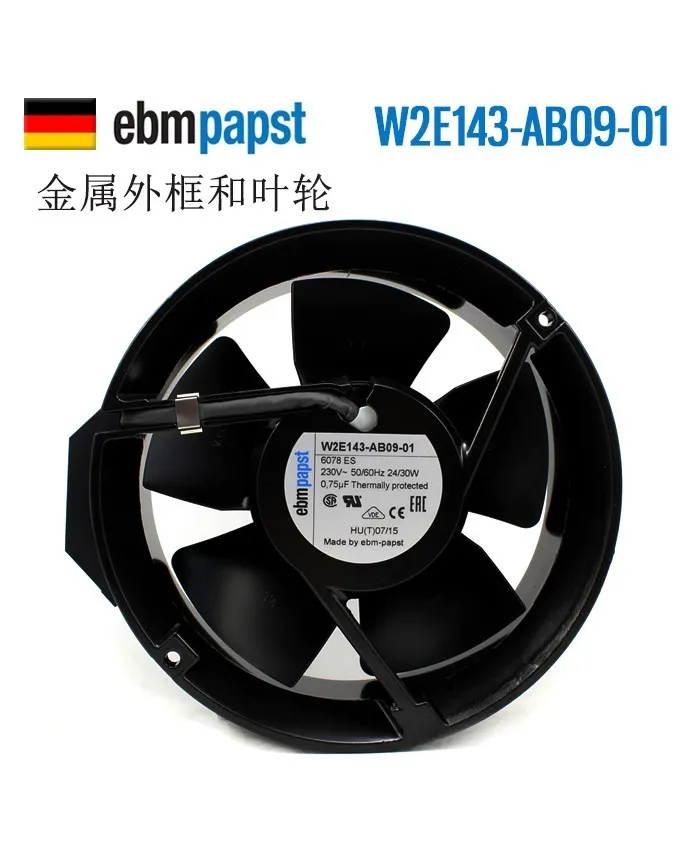

ebmpapst W2E143-AB09-01 172*51 230V cooling fan

$69.99

1000 in stock

SKU: W2E143-AB09-01 Category: Tag: Brand:

Description

Model: W2E143-AB09-01
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 172x51mm
Rated Voltage: 230 VAC
Frequency: 50 Hz / 60 Hz
Rated Current (50Hz / 60Hz): 0.12A / 0.13A
Power Consumption (50Hz / 60Hz): 24 W / 29 W
Speed (50Hz / 60Hz): 2800 RPM / 3300 RPM
Airflow (50Hz / 60Hz): 245 CFM / 290 CFM (420 m³/h / 490 m³/h)
Static Pressure (50Hz / 60Hz): 0.26 inch H2O (65 Pa) / 0.34 inch H2O (85 Pa)
Noise Level (50Hz / 60Hz): 54 dB(A) / 58 dB(A)
Bearing Type: Ball Bearing
Frame Material: Die-cast Aluminum
Impeller Material: Sheet Steel (painted black)
Termination: 2-Wire Leads (with plug)
Operating Temperature: -25°C to +60°C (at 50Hz) / -25°C to +75°C (at 60Hz)
Protection Class: IP20
Motor Protection: Thermal Overload Protector (TOP) internally connected
Weight: 0.91 kg
Application: Control cabinets, heat pumps, air conditioners, refrigerated display cases, cold storage evaporators, general industrial cooling.

The ebmpapst W2E143-AB09-01 is a high-quality AC axial fan with a circular design, measuring 172mm in diameter and 51mm in depth. It operates on 230 VAC and is typically used in applications requiring robust air movement. At 50 Hz, it draws 0.12A of current and consumes 24W of power, delivering an airflow of 420 m³/h (245 CFM) with a noise level of 54 dB(A). At 60 Hz, its performance increases to 0.13A current, 29W power, 490 m³/h (290 CFM) airflow, and a noise level of 58 dB(A). This fan features a durable die-cast aluminum housing and a steel impeller, combined with reliable ball bearings for long-term operation. It is frequently found in control cabinets, heat pumps, and other systems requiring effective heat dissipation.

Additional information

Weight 1 kg
