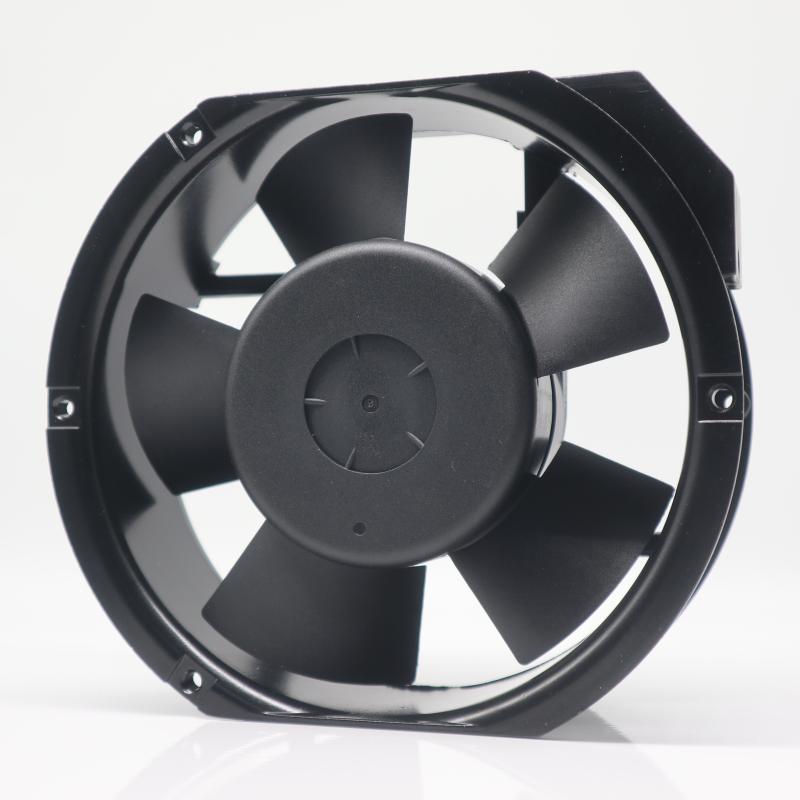

F2E-150B-230 AC220-240V 0.22A 38W 17CM 2600RPM Axial Cooling Fan


SKU: F2E-150B-230 Category: Tags: ,


Brand: Shanghai Yingmu
Model number: F2E-150B-230

Bearing structure: SLEVEE (ball bearing)

Voltage: AC220V

Power: 38 (W)

Frequency: 50/60 (Hz)

Speed: 2700-3100 (R / min)

Air volume: 5.37 / 6.88 (M3 / min)

Noise: 55/60 (dB-A)

Weight: 840 (g)

Packing: 24 pcs / 1 full carton;

Frame: Black-painted aluminum alloy die-casting anti-corrosion and moisture-proof structure;

Wind blade: one-shot injection molding, PBT + 30% glass line + VO flame retardant;

Bearing: Imported high-precision, long-life and low-noise imported ball bearings;

Insulation: The enameled wire adopts Class B insulation and has a temperature resistance of 120 degrees Celsius;

Wiring method: lead type (line length 25CM)

Insulation resistance: above 500 megohms;

Withstand voltage: leakage current 0.5mA. Withstand voltage 1500V / 1 minute;

Operating voltage: 220V (voltage range: 185V ~ 245V)

Fan rotation direction: counterclockwise when viewed from the direction of fan blades;

Life: Working ambient temperature 40 ° C B: (ball bearing) 30000 (hours)
