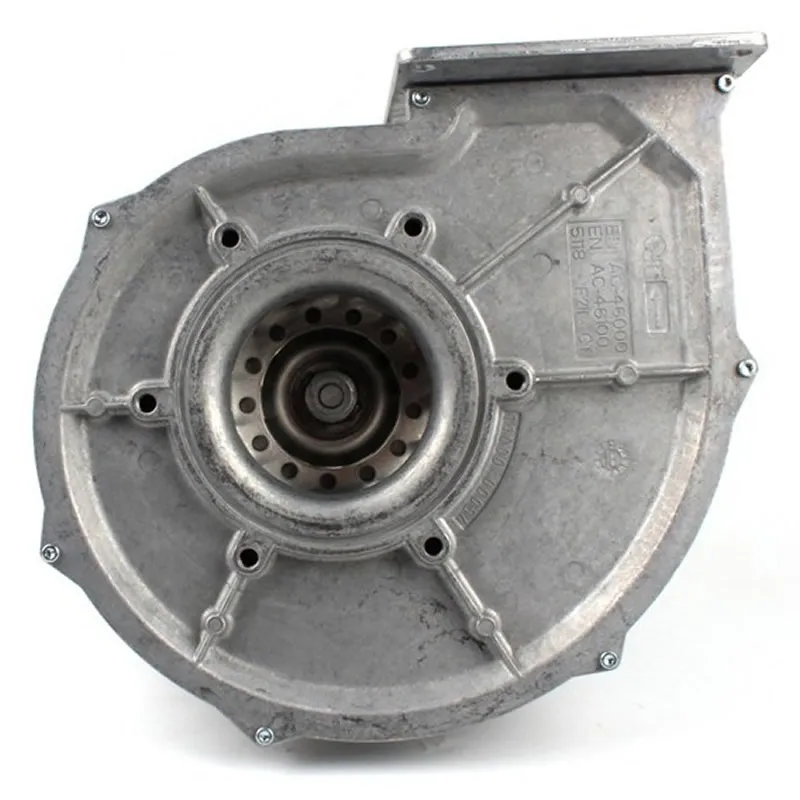

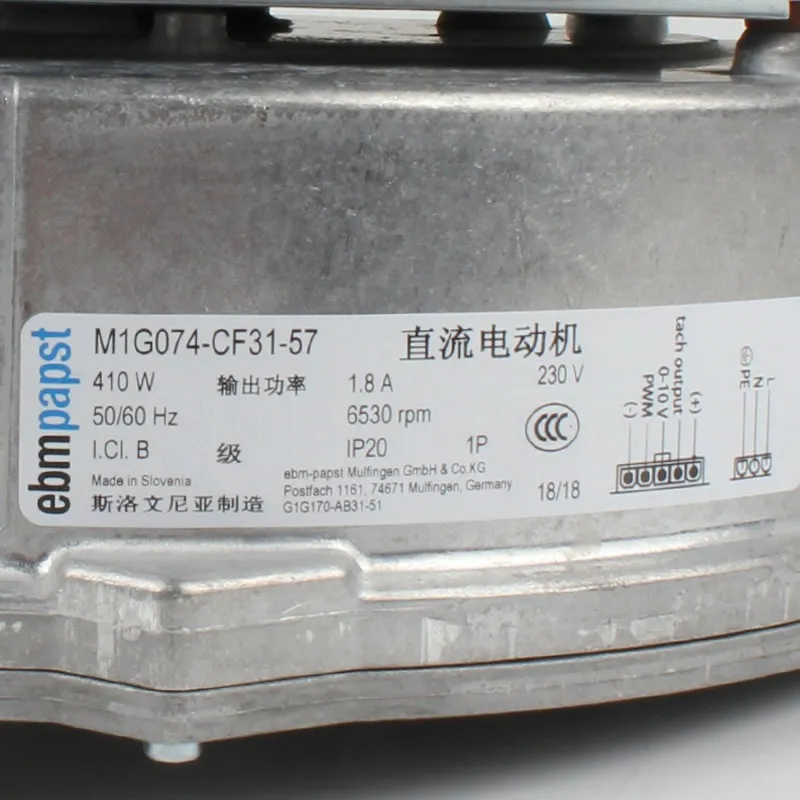

G1G170-AB31-51 M1G074-CF31-57 ebmpapst EC centrifugal fan

Description

G1G170-AB31-51 M1G074-CF31-57, EC centrifugal fan,backward curved, single inlet,with housing (flange), Gas blower for gas-condensing heating
Type:G1G170-AB31-51 M1G074-CF31-57
Manufacturer:ebmpapst
Motor: M1G074-CF
Phase:1~
Nominal voltage: 230VAC
Frequency: 50/60Hz
Speed:6530min-1
Power input:410W
Current draw:1.8A
Min. back pressure:2000Pa
Min. ambient temperature:- 25°C
Max. ambient temperature: +55°C
Min. temp. of flow medium: -25°C
Max. temp. of flow medium: +80°C
Mass:4.7 kg
Size:170 mm
Type of protection: IP 20
Motor bearing Ball bearing
