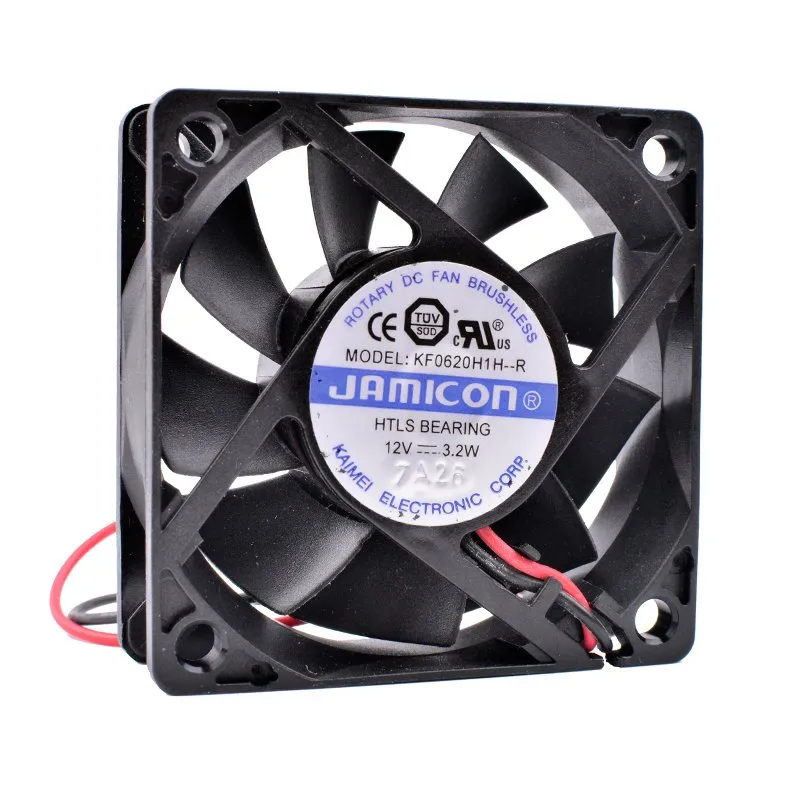

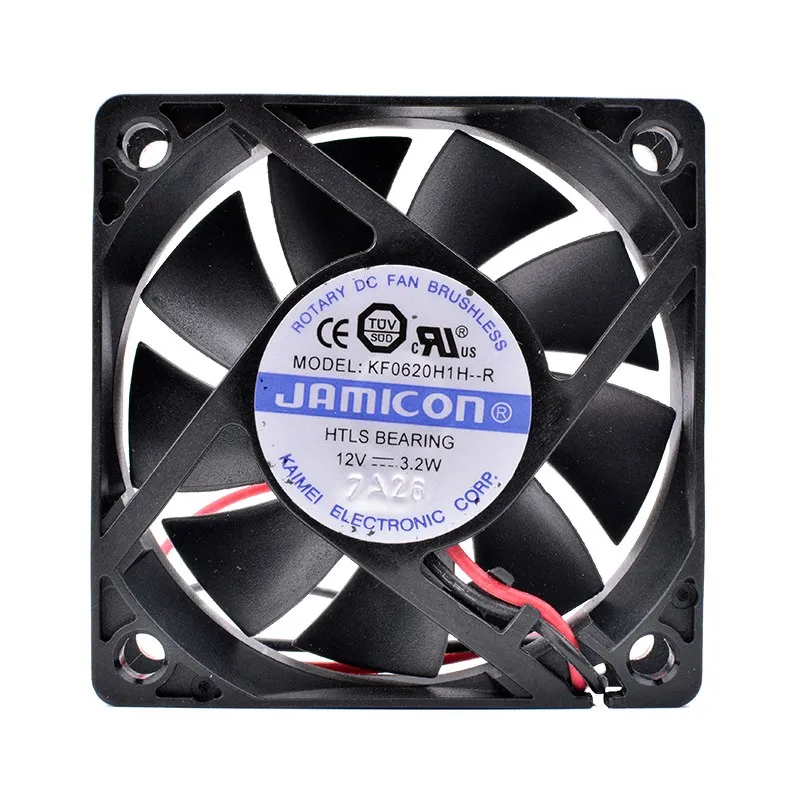

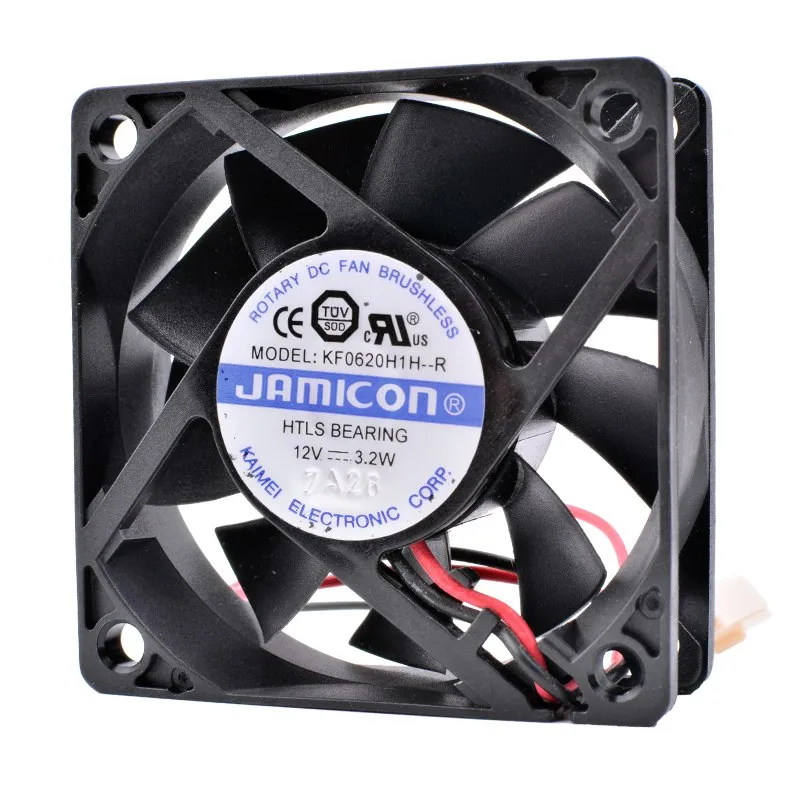

JAMICON KF0620H1H 12V 3.2W Large amount of air cooling fan

Description

The JAMICON KF0620H1H is a high-performance DC axial fan engineered for thermal regulation in space-constrained industrial electronics. This specific model utilizes a high-wattage 3.2W motor design to deliver superior airflow volume and static pressure relative to its 60mm form factor, distinguishing it from standard low-speed variants. The unit is constructed with a reinforced thermoplastic frame and precision bearing system to withstand continuous operation in elevated temperature environments.

Manufacturer: JAMICON (Kaimei Electronic Corp)
Model Reference: KF0620H1H
Product Category: DC Brushless Cooling Fan
Rated Voltage: 12V DC
Power Rating: 3.2 W
Nominal Current: 0.27 A
Frame Dimensions: 60 mm x 60 mm x 20 mm
Bearing Type: Ball Bearing System

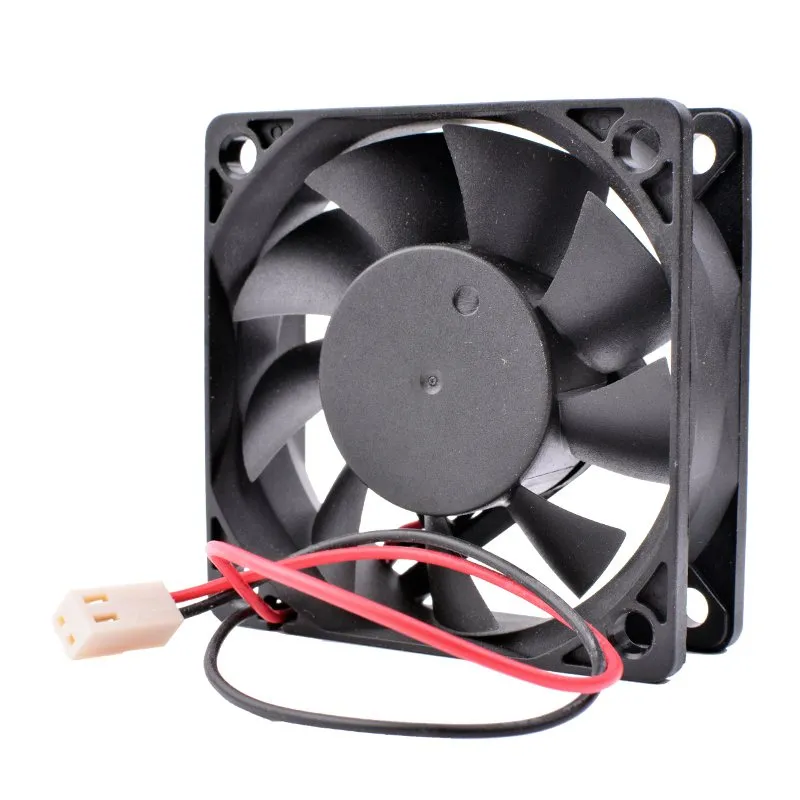

Electrical Connection: 2-Wire Lead (Red +, Black -)
Wire Gauge: 24 AWG – 26 AWG
Housing Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Operating Temperature Range: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Insulation Resistance: >10M Ohms at 500VDC
Dielectric Strength: 500VAC / 1 Minute
Safety Certifications: UL, CE, TUV

Industrial Application:
This high-power 3.2W fan is specifically calibrated for equipment with high thermal density and significant airflow resistance, such as 1U server power supplies, compact variable frequency drives (VFDs), and network switching gear. Its high torque motor overcomes back-pressure created by dense heatsink fin arrays, ensuring critical components remain within safe operating thermal limits.

Procurement Notes:
Sourcing Original Engineering components ensures adherence to the specific P-Q (Pressure-Quantity) curve required by the OEM design. Verify Technical Compatibility regarding the 2-wire interface and physical mounting depth prior to ordering. Please request a quote for current Lead Time and volume availability.
