Description

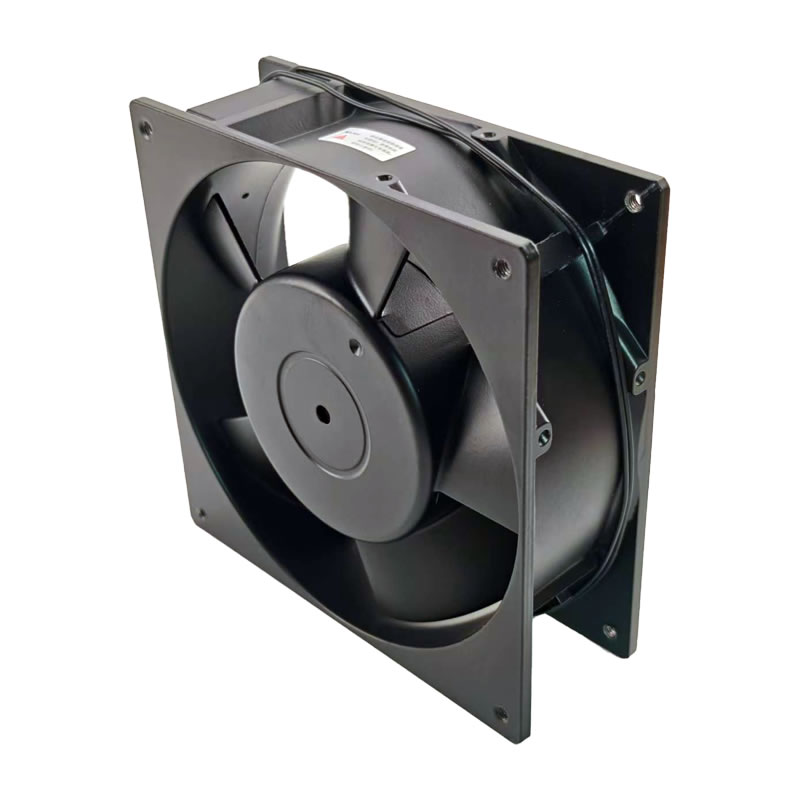

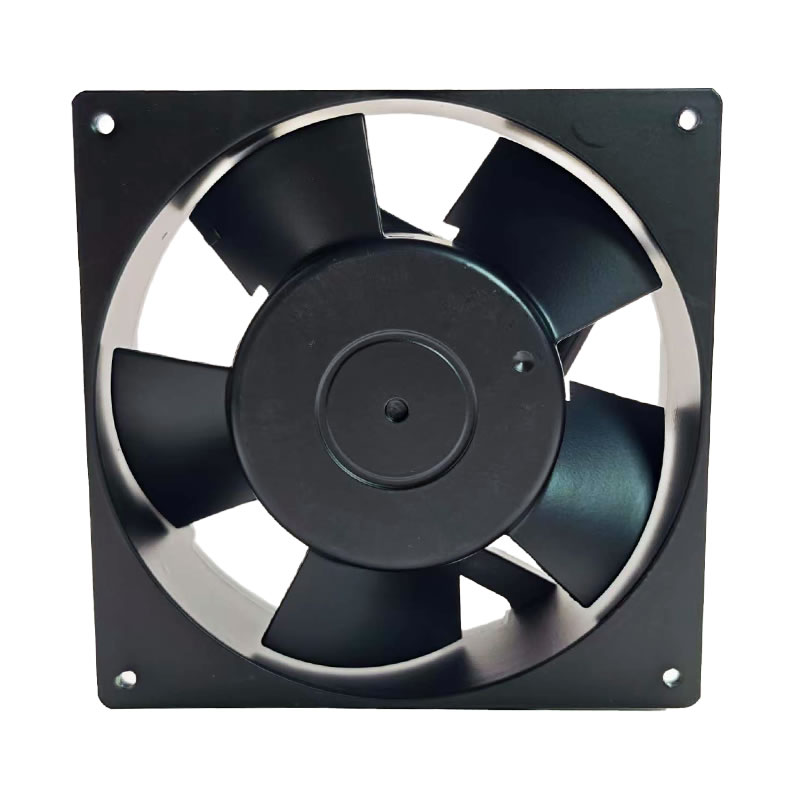

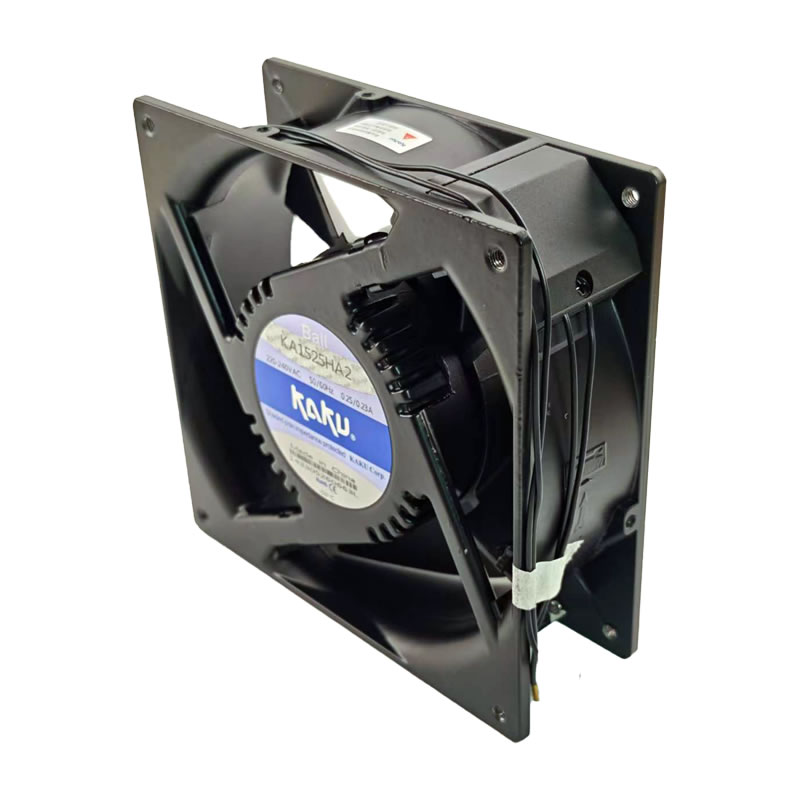

The KAKU KA1525HA2 is an AC axial fan measuring 150x150x51mm. It operates on 220-240 VAC at both 50 Hz and 60 Hz frequencies, drawing 0.25 A of current at 50 Hz and 0.23 A at 60 Hz. Power consumption is 57.5 W at 50 Hz and 52.9 W at 60 Hz. This fan achieves a speed of 2700 RPM at 50 Hz and 3100 RPM at 60 Hz, providing an airflow of 180 CFM at 50 Hz and 210 CFM at 60 Hz. The noise level is 56 dB(A) at 50 Hz and 58 dB(A) at 60 Hz. It is equipped with ball bearings for durable operation and features 2-wire leads. Constructed with an aluminum frame and plastic blade material, it is suitable for various industrial cooling and refrigeration applications.
KA1525HA2 Fan Parameters
Model: KA1525HA2
Manufacturer: KAKU
Type: AC Axial Fan
Dimensions: 150x150x51 mm
Rated Voltage: 220-240 VAC
Frequency: 50 Hz / 60 Hz
Rated Current (50Hz / 60Hz): 0.25 A / 0.23 A
Power Consumption (50Hz / 60Hz): 57.5 W / 52.9 W
Speed (50Hz / 60Hz): 2700 RPM / 3100 RPM
Airflow (50Hz / 60Hz): 180 CFM / 210 CFM
Noise Level (50Hz / 60Hz): 56 dB(A) / 58 dB(A)
Bearing Type: Ball Bearing
Termination: 2-wire leads
Weight: 0.89 kg
Frame Material: Aluminum
Impeller Material: Plastic
Operating Temperature: -10°C to +70°C
Life Expectancy: 50,000 hours
Approval Agency: CE
Application: Industrial applications, refrigeration, electrical cabinets.
