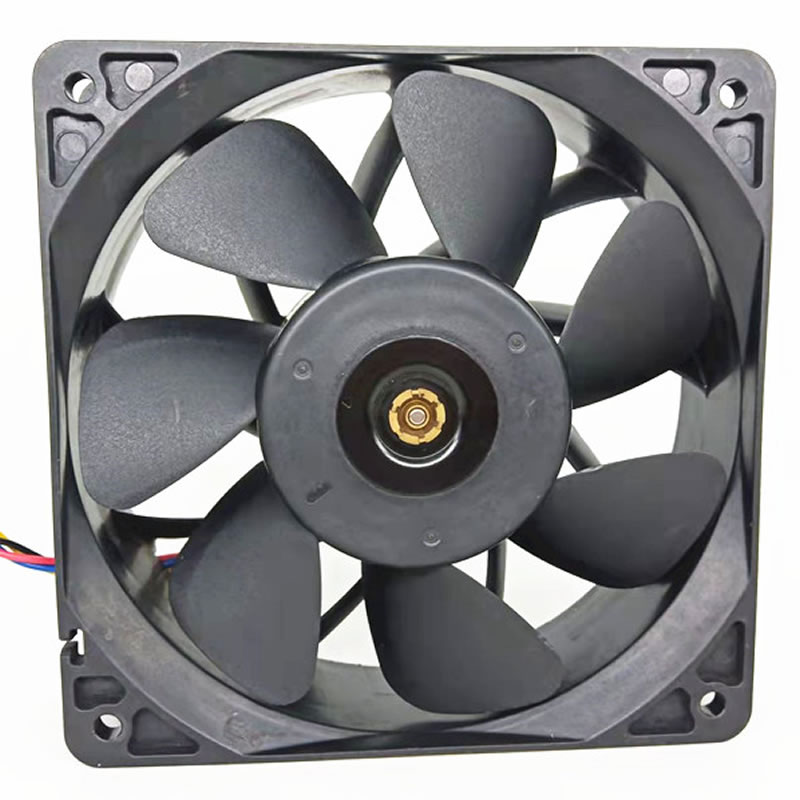

KZ12038B012X K DC12V 2.8A 4-Wires Cooling Fan

$11.99

SKU: KZ12038B012X Category:

Description

Model: KZ12038B012X
Connector: 4wires
Size: 120*120*38mm
Voltage: DC 12V
Current: 2.8A
Speed: 6000RPM
Air volume: 210.38CFM
Wind pressure: 21.60mmH2O
Noise: 64dB-A
Bearing: high precision double ball bearing
Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant
Wind blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant.
Fan rotation: counterclockwise from the direction of the fan blade
Operating temperature: -10 degrees Celsius to +70 degrees Celsius
Storage temperature: -40 degrees Celsius to +70 degrees Celsius
Power range: plus or minus 15% of rated power
Insulation resistance: greater than 500 megohms
Withstand voltage: sink current 0.5mA 500V / 1 minute
Working life: 80000 hours when the ambient temperature is 25 degrees
Scope of application: workstation cooling / server CPU cooling

Additional information

Weight1 kg
Brand

K

Part number

KZ12038B012X

Connector

4 wires

Size

120x120x38mm

Voltage

DC12V

Current

2.80A

Speed

6000RPM

Air volume

210.38CFM

Noise

64dBA

Bearing Type

Double ball bearing

Wind pressure

21.60mmH2O
