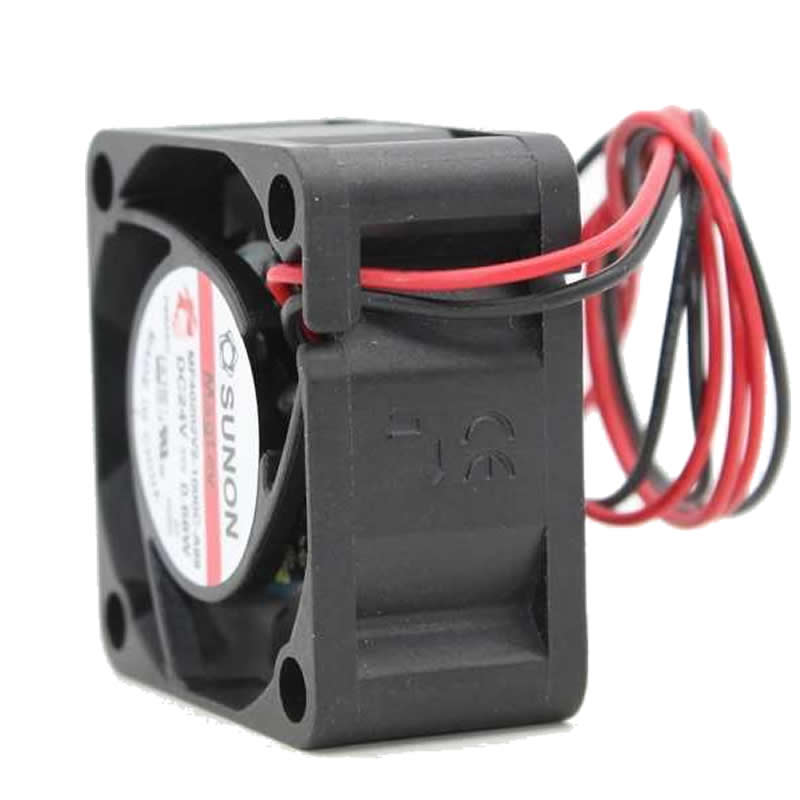

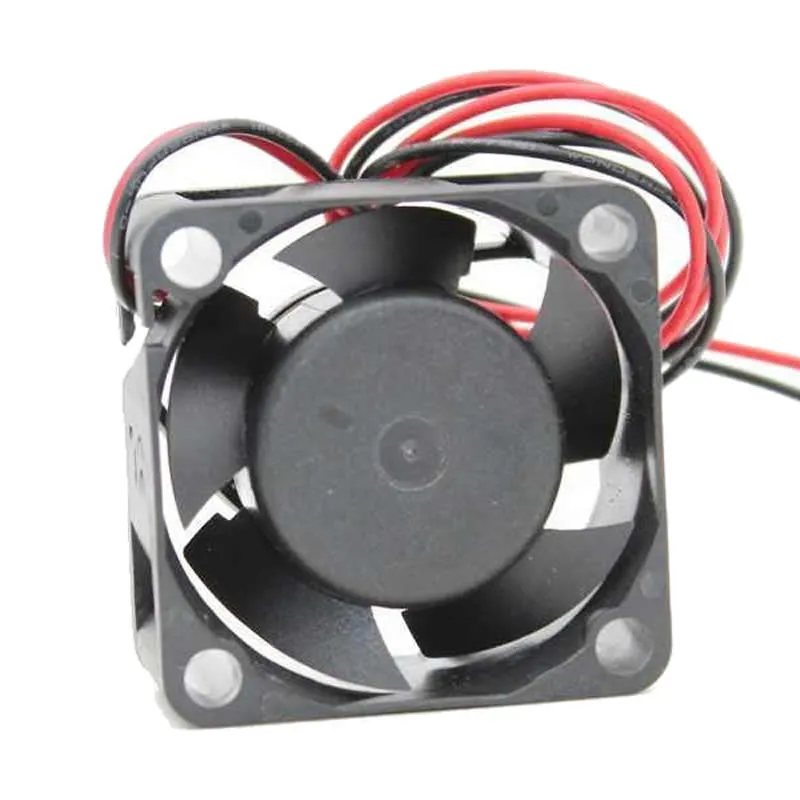

MF40202V2-1000C-A99 SUNON DC24V 4cm cooling fan

(1 customer review)

$9.99

SKU: MF40202V2-1000C-A99 Category: Brand:

Description

Model: MF40202V2-1000C-A99
Brand: SUNON Maglev
Voltage: DC24V
Power: 0.68W
Power Connector:2-wires
Fan Size:40x40x12mm

Additional information

Weight0.2 kg
Model

MF40202V2-1000C-A99

Brand

SUNON

Size

40*20*20mm

MOTOR DESIGN

Single phase, 4-poles Brushless DC motor

BEARING SYSTEM Vapo

Vapo bearing system

RATED VOLTAGE

24VDC

RATED CURRENT

25mA / Max. 30 mA

RATED POWER CONSUMPTION

0.60 WATTS / Max. 0.72 WATTS

SAFETY POWER CONSUMPTION

0.68 WATTS

OPERATING VOLTAGE RANGE

8~27.6 VDC

STARTING VOLTAGE

8 VDC (25 deg. C POWER ON/OFF)

RATED SPEED

6000 RPM ± 15% at rated voltage

AIR FLOW

7.7 CFM

STATIC PRESSURE

0.17 Inch-H2O

ACOUSTIC NOISE

21.0 dB(A)

INSULATION CLASS

UL Class A

INSULATION RESISTANCE PLASTIC HOUSING

10M ohm at 500 VDC between internal stator and Lead wire (+)

DIELECTRIC STRENGTH

Applied AC 500 V for one minute or AC 600 V for 2
Seconds between housing and lead wire (+)

LIFE EXPECTANC

60,000 hours at 40 deg. C, 65% humidity, 90% CL.
