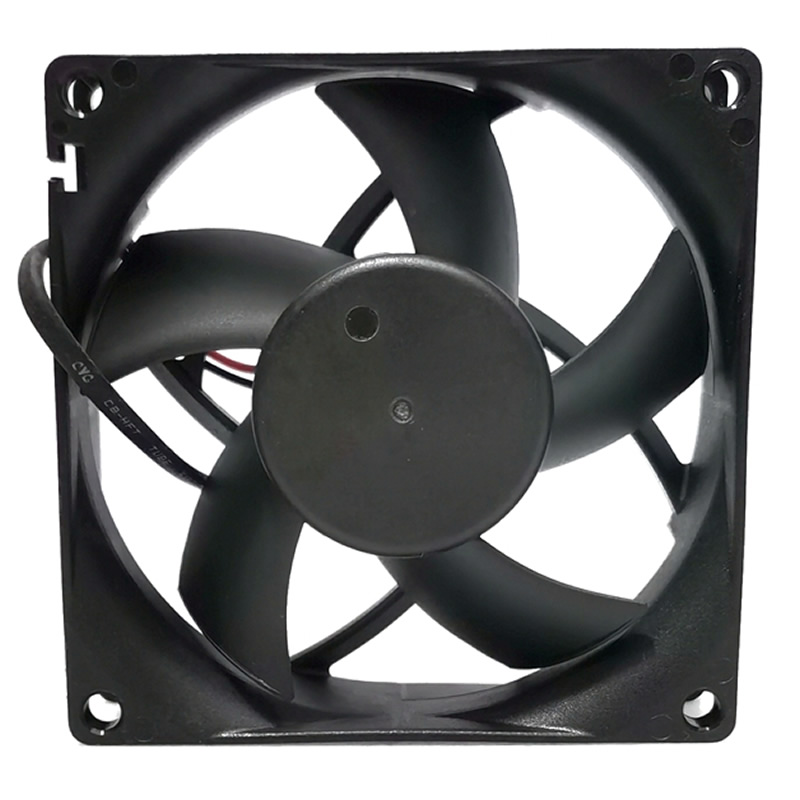

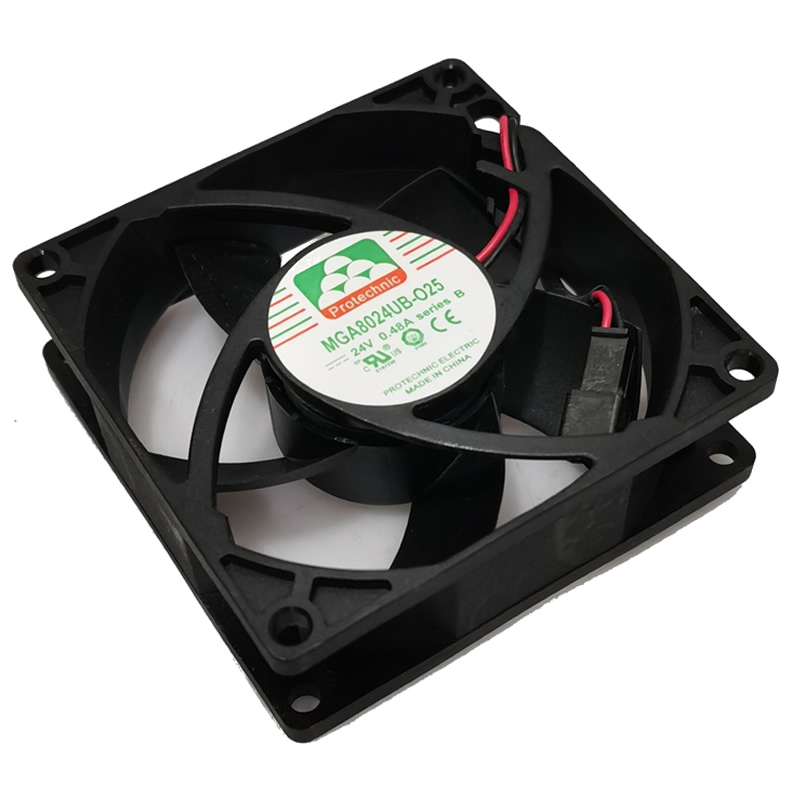

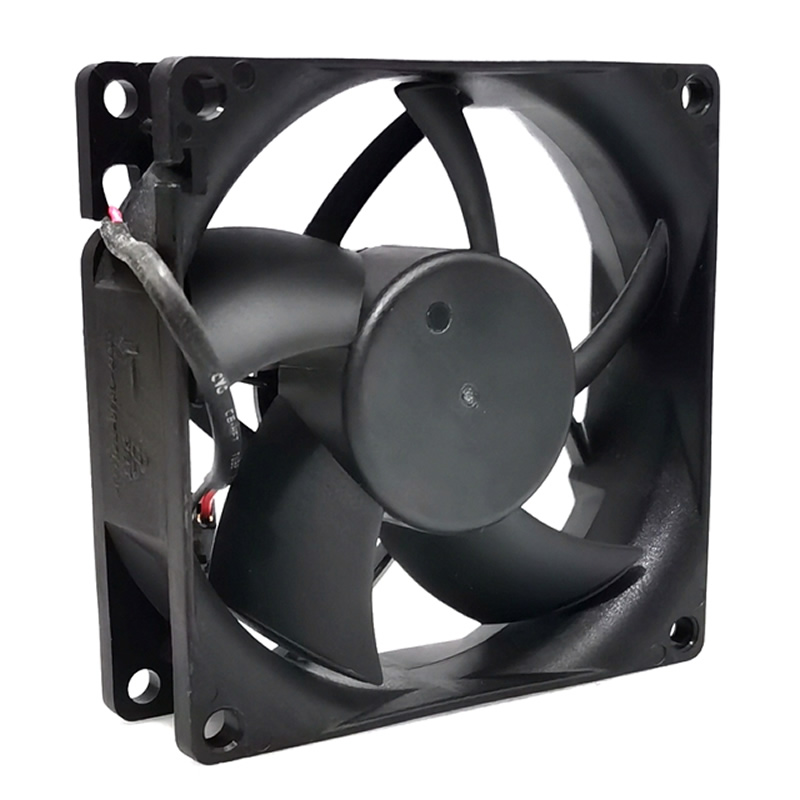

MGA8024UB-O25 Protechnic DC24V 0.48A axial fan

$7.09

SKU: MGA8024UB-O25 Category: Brand:

Description

Model:MGA8024UB-O25 025
Brand:Protechnic
Type:DC Axial Fan
Size:80x80x25mm
Voltage Range DC 14.0V ~ 27.6V
Rated Voltage:DC 24V
Nominal Current:0.48A
Rated Current: 0.48A
Input Power:11.52W
Rated Speed:4800 RPM
Air Volume: 68.88 CFM (Cubic Feet/Minute) = 1.951 CMM (Cubic Meters/Minute)
Wind Pressure: 9.17 mmAq (Millimeter Water Column) = 0.361 inchAq (Inch Water Column)
Noise:45.2 dB-A (Minutes)
Weight: 90 g
Wire Terminal:Standard 2 pin positive and negative wires, no terminal plug, wire length about 30cm. If you need to process a specified plug, please contact customer service
Function support: (0) Automatic restart and lock current protection
Protection function: Stall protection, reverse connection protection
Safety certification: UL certification, TUV certification, CE certification
Motor bearing type: Double ball bearing
Frame and fan blade material: Plastic material
Use environment and life: -10 °C to 70 °C, it can operate continuously for about 50,000 hours in normal environment
Applicable fields: Applicable to a variety of fields

The Protechnic Electric MGA8024UB-O25 is an axial fan belonging to the 80x80x25mm series, designed for efficient cooling solutions. Operating at 24 VDC with a rated current of 0.48 A (actual current: 0.2 A), it delivers a power rating of 11.52 W and actual power consumption of 4.8 W, ensuring energy-efficient operation. With a fan speed of 4800 RPM, it generates an air flow of 1.763 m³/min (62.23 CFM) and a static pressure of 96.24 Pa (9.81 mmAq / 0.386 in H2O), balancing airflow and pressure for optimal ventilation. Weighing 74 g and measuring 80x80x25 mm, this compact DC fan features a ball bearing and plastic blade/frame construction, combining durability with lightweight design. It operates at a noise level of 48.2 dB(A), suitable for environments where moderate noise is acceptable.

Engineered for reliability, the MGA8024UB-O25 offers a lifespan of 40,000 hours at 60°C, thriving in its wide operating temperature range of -10 to 70°C (14 to 158°F) and storage temperature of -40 to 70°C with 5%–95% RH. It complies with CE, TUV, and UL certifications, meeting international safety and quality standards. The fan includes essential protective features: automatic restart and locked current protection, safeguarding against operational failures. Terminated with 2-wire leads, it ensures easy integration into various systems. Ideal for applications requiring consistent airflow in compact spaces, this axial fan balances performance, durability, and safety, making it a practical choice for industrial, electronic, and thermal management setups

Additional information

Weight 0.25 kg
