Description

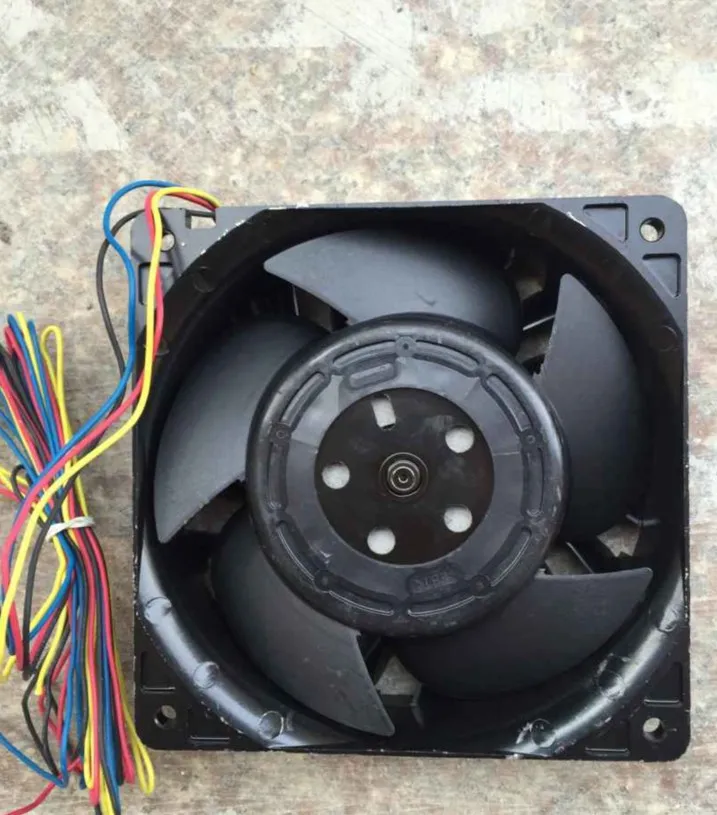

The NMB 12038MA-48R-GK is a high-performance DC Axial Fan with dimensions of 120 x 120 x 38 mm. Operating at 48 VDC, it provides a powerful airflow suitable for a variety of demanding applications. This fan features a durable ball bearing system and is terminated with 4 wire leads, ensuring long-lasting reliability and performance.

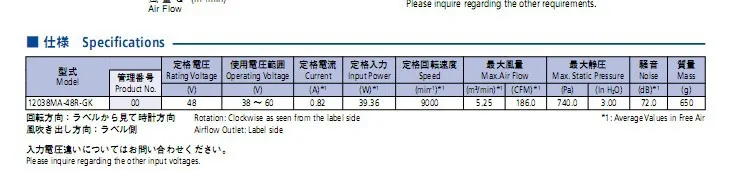

12038MA-48R-GK Fan Parameters
Model: 12038MA-48R-GK
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 48 VDC
Rated Current: 1.1 A
Airflow: 185 CFM
Static Pressure: 2.97 in H₂O
Noise Level: 72 dBA
Bearing Type: Ball Bearing
Termination: 4 Wire Leads
Weight: 650 g
Features: Tachometer, PWM
IP Rating: IP68
Life Expectancy: 40000 Hours
Application
The 12038MA-48R-GK is ideal for applications requiring high-volume air circulation and static pressure to overcome system impedance. It is commonly used in server cabinets, industrial control systems, and other high-density electronic equipment.
