Description

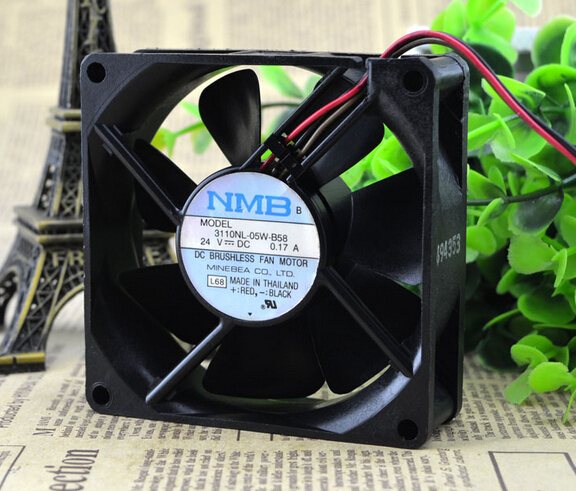

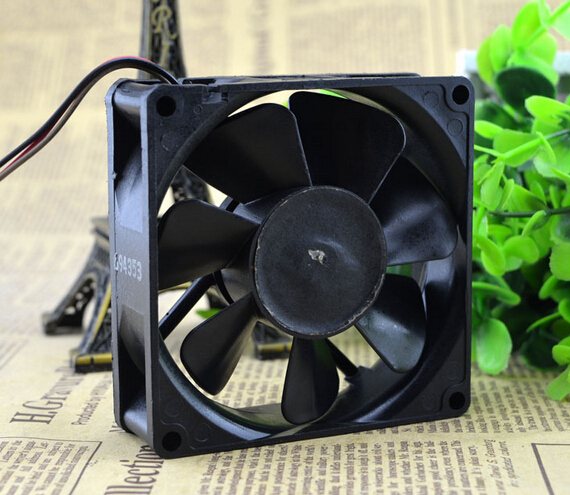

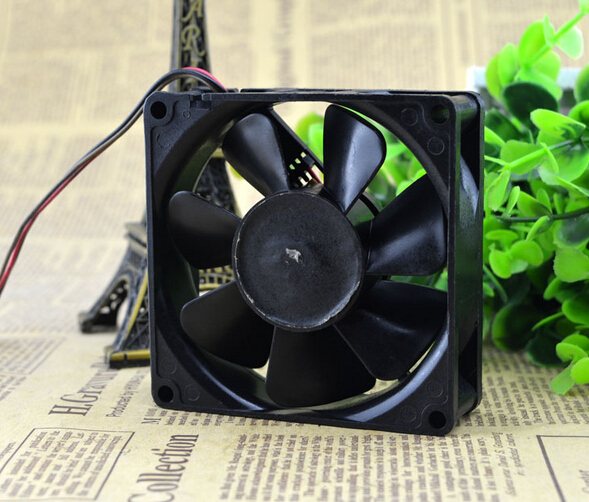

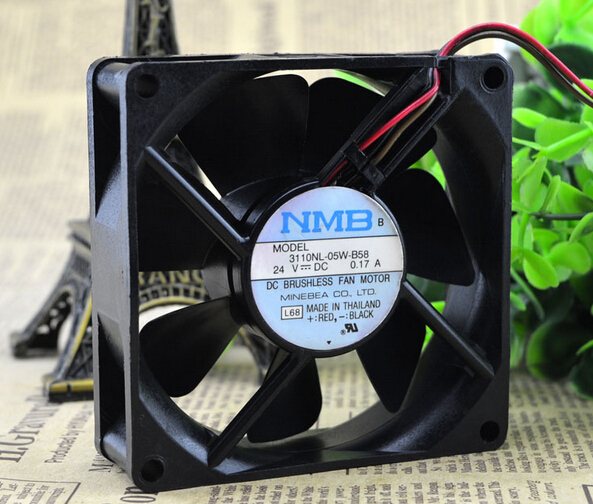

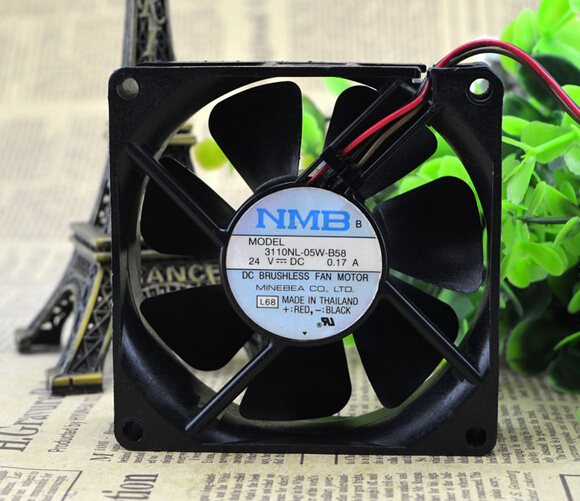

The NMB 3110NL-05W-B58 is a high-performance DC axial cooling fan engineered by MinebeaMitsumi specifically for thermal regulation in industrial power electronics and inverter systems. This unit utilizes a precision Dual Ball Bearing architecture, which provides superior longevity and stability compared to sleeve bearing alternatives, making it suitable for continuous operation in vertical or horizontal orientations. The 80mm form factor is optimized to deliver high static pressure, essential for forcing airflow through the dense fin structures of heatsinks in Variable Frequency Drives (VFDs) and power supply units. The housing and impeller are constructed from reinforced PBT plastic, offering resistance to environmental stress and flammability.
Technical Specifications:
Manufacturer: NMB Technologies (MinebeaMitsumi)
Model Number: 3110NL-05W-B58
Nominal Voltage: 24V DC
Operating Voltage Range: 12V DC – 27.6V DC
Rated Current: 0.17 A
Input Power: 4.08 W
Dimensions: 80mm x 80mm x 25mm
Bearing Type: Dual Ball Bearing
Airflow: Approx. 40-45 CFM (Estimated based on Speed Class 5)
Static Pressure: High Static Pressure Profile
Housing Material: Polybutylene Terephthalate (PBT) UL94V-0
Impeller Material: Polybutylene Terephthalate (PBT) UL94V-0
Operating Temperature Range: -10°C to +70°C
Life Expectancy: 100,000 Hours at 25°C
Termination: Lead Wires
Application: Inverter Cooling, Server Cabinets, Power Supplies
This component is critical for maintaining the thermal equilibrium of IGBT modules and thyristors within industrial inverters. Failure to maintain adequate airflow in these applications can lead to thermal runaway and catastrophic system failure. The NMB 3110NL-05W-B58 ensures Original Engineering performance standards are met, guaranteeing Technical Compatibility with existing mounting interfaces and fan control logic. We prioritize availability to minimize Lead Time for critical maintenance and repair operations.
