Description

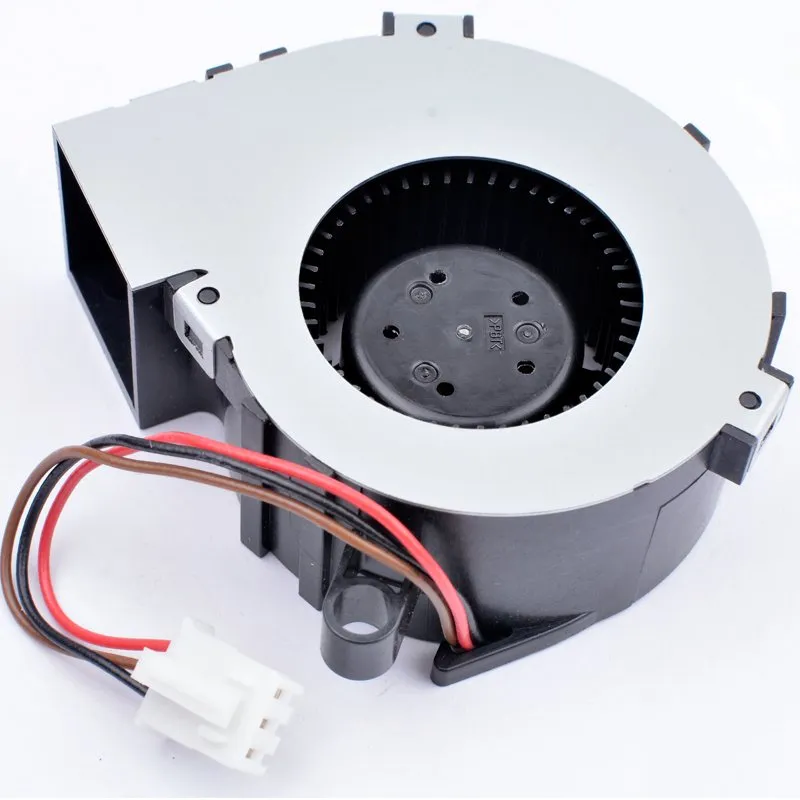

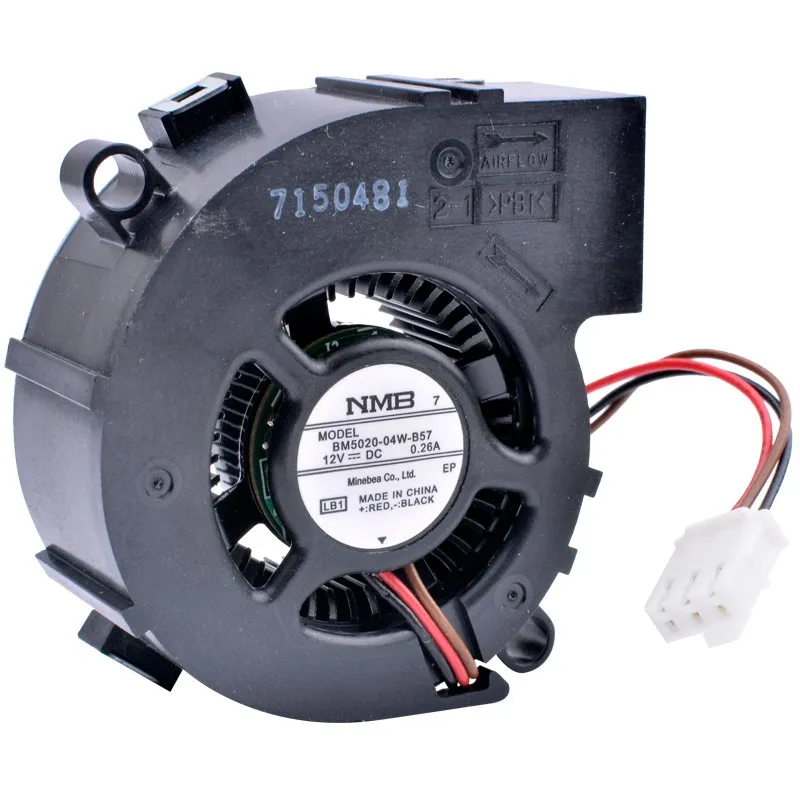

The Nidec BM5020-04W-B57 is a reliable DC blower with dimensions of 50x50x20mm. Operating on 12V DC, it provides a rated speed of 4800RPM, a powerful airflow of 3.5CFM, and a noise level of 43dBA. Featuring a ball bearing system, this blower is designed for efficient cooling in compact electronic devices.
BM5020-04W-B57 Fan Parameters
Model: BM5020-04W-B57
Manufacturer: Nidec
Type: DC Blower
dimensions: 50 x 50 x 20 mm
Rated Voltage: 12 V DC
Rated Current: 0.26 A
Rated Speed: 4800 RPM
Airflow: 3.5 CFM
Air Pressure: 20.4 mmH2O
Noise: 43 dBA
Bearing Type: Ball Bearing
Lifetime: 50000 hrs at 25°C
Weight: 30 grams
Frame Material: Plastic
Blade Material: Plastic
Termination Style: 3-wire leads
Application
The Nidec BM5020-04W-B57 is commonly used in various electronic devices and equipment for heat dissipation. Its applications include cooling projectors, compact enclosures, and other systems where a small but powerful blower is required.
Additional information
| Weight | 1 kg |
|---|---|
| Brand Name | nmb |
| Application | Computer Case |
| Noise | 26dBA |
| Bearing | Two Ball Bearing |
| Package | Yes |
| Fan Life | 100000 hrs |
| Fan Speed Control | No RPM |
| Power | 2.5W |
| Air Volume | 20CFM |
| Lines | 3 Lines |
| Type | Fan |
| Fan Size | 50x50x20mm |
| Power Interface | 3pin |
| Model Number | BM5020-04W-B57 |
