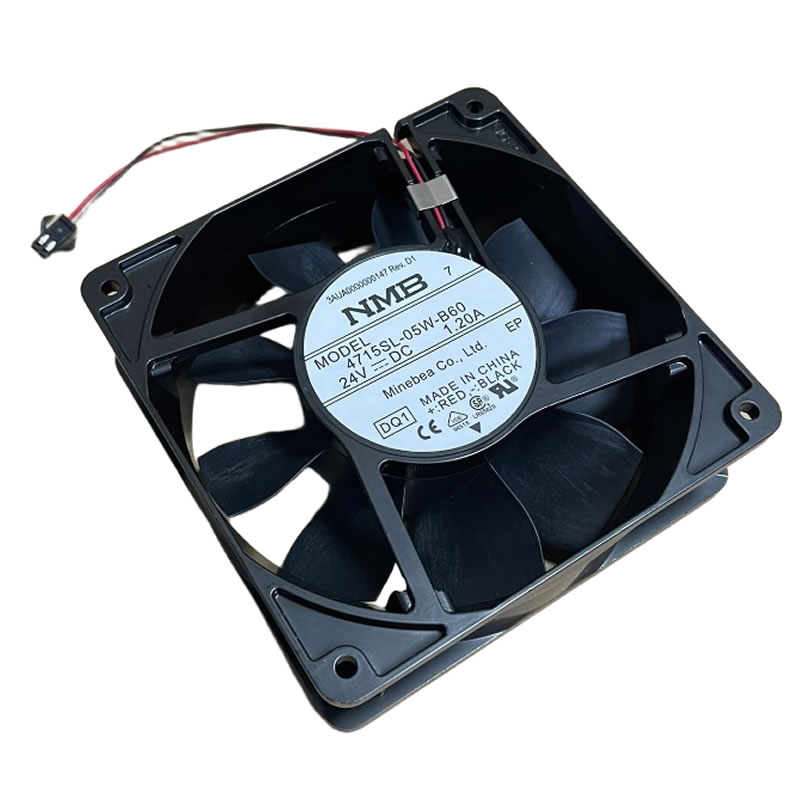

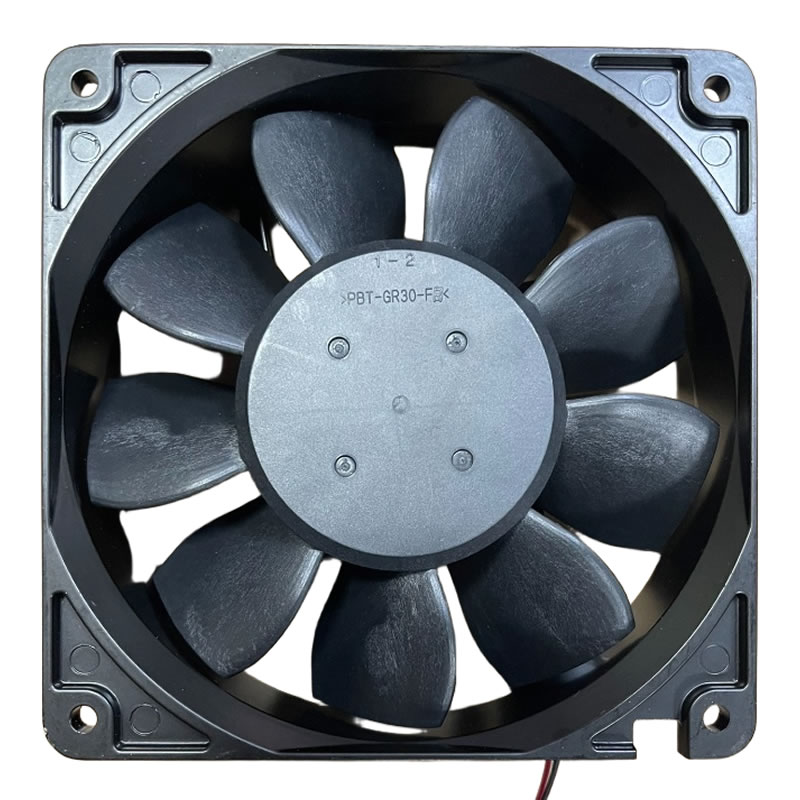

NMB-MAT 4715SL-05W-B60 DC24V 1.2A cooling fan

$29.99

1000 in stock

SKU: 4715SL-05W-B60 Category: Tag: Brand:

Description

Brand:NMB-MAT
Model Number:4715SL-05W-B60
Voltage:24V
Current:1.2A
Operating voltage range: 15.0V ~ 26.4V
Power consumption: 22.40W
Speed: 4700 RPM
Air volume: 181.0 CFM (5.13 m³/min)
Static pressure: 0.85 in H₂O (213.0 Pa)
Noise level: 59.5 dB
Weight: 400g
Size:120*120*38mm
Bearing type: Ball bearing
Protection function: Automatic restart, polarity protection
Operating temperature range: -10°C to +60°C
Storage temperature range: -40°C to +70°C
Casing material: Aluminum (black)
Impeller material: Plastic (black)
Lead wire: UL1007, AWG24, +Red -Black
Direction of rotation: Clockwise

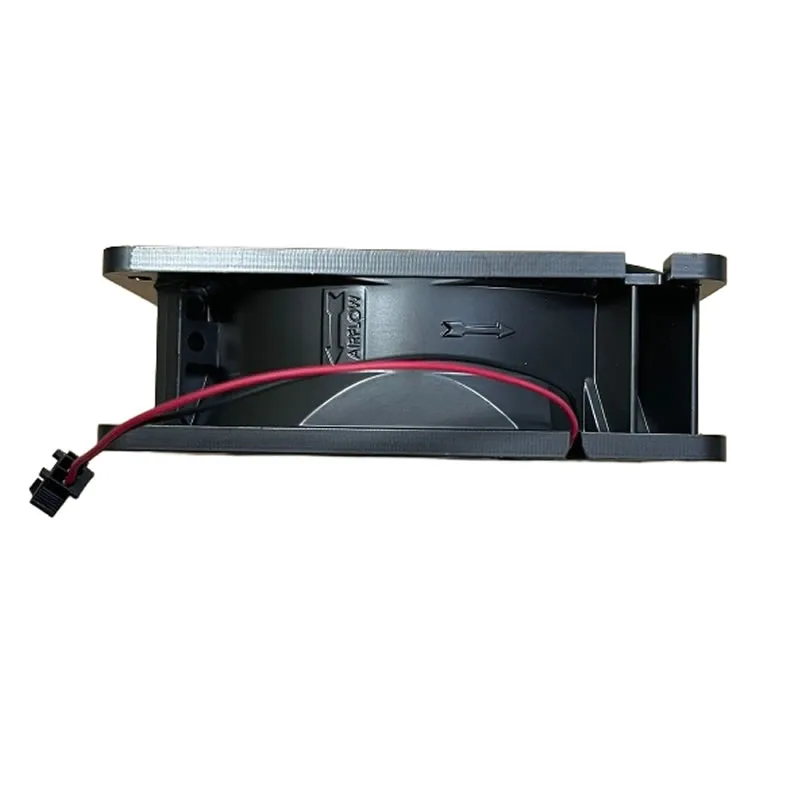

Airflow direction: Air is exhausted from the outside of the bracket
Failure rate: 10⁻⁶ at 25°C, life 100,000 hours
Insulation resistance: Use DC500V Megohmmeter measurement, 10M Ω or above
Withstand voltage test: AC 700V 1 second

MB-MAT 4715SL-05W-B60 fan is a high-performance DC axial fan suitable for PC and industrial cooling applications

Additional information

Weight 0.8 kg
