Description

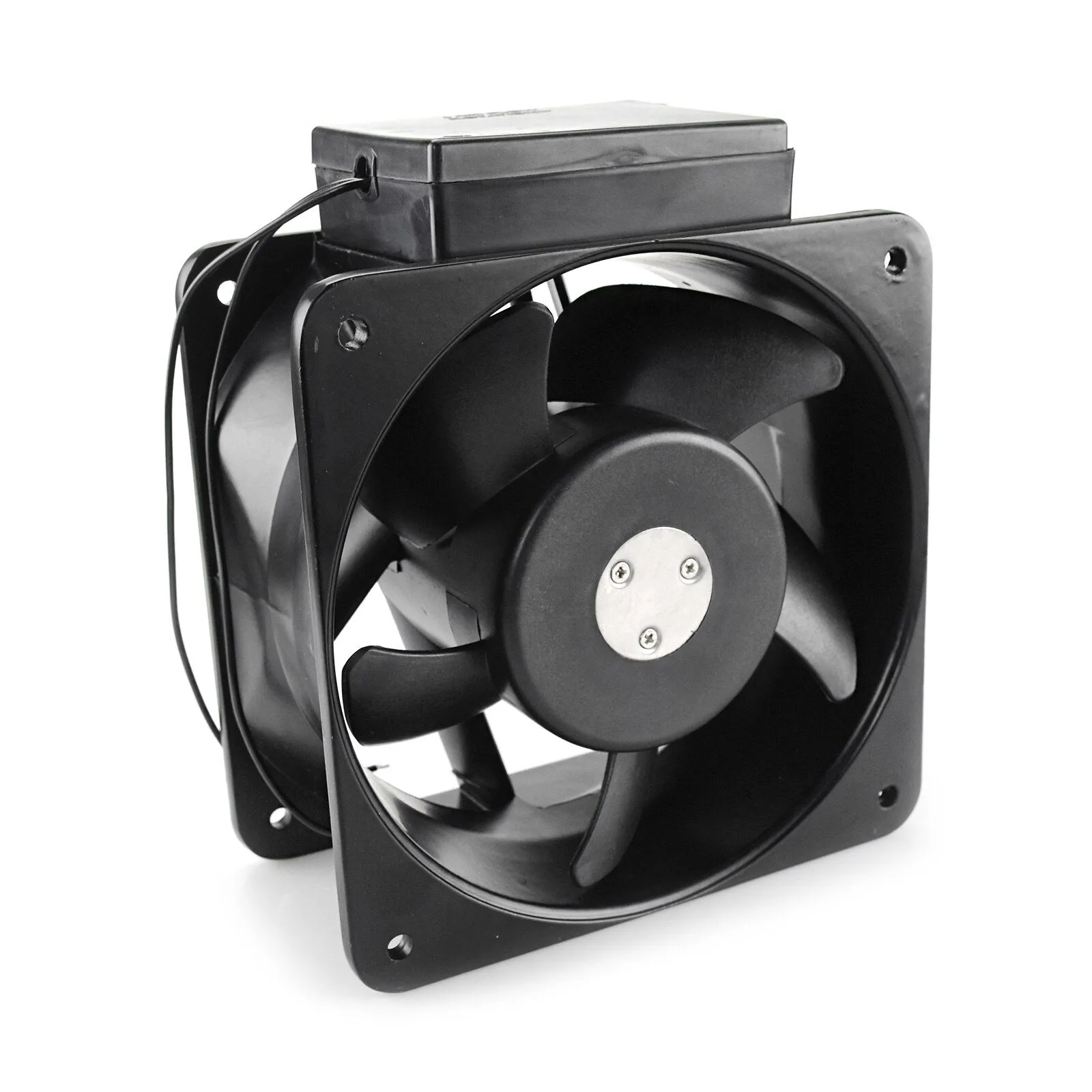

The ORIX MRS18-DUL is a high-performance AC axial fan measuring 180 x 180 x 90 mm. Operating on 220/230V AC with 50/60 Hz frequencies, it delivers a high airflow of up to 768 m³/h and a static pressure up to 245 Pa. This fan is an effective solution for applications requiring strong and reliable air circulation. It features a built-in thermal protector for enhanced safety and is terminated with a terminal box for easy installation.
MRS18-DUL Fan Parameters
Model: MRS18-DUL
Manufacturer: ORIX
Type: AC Axial Fan

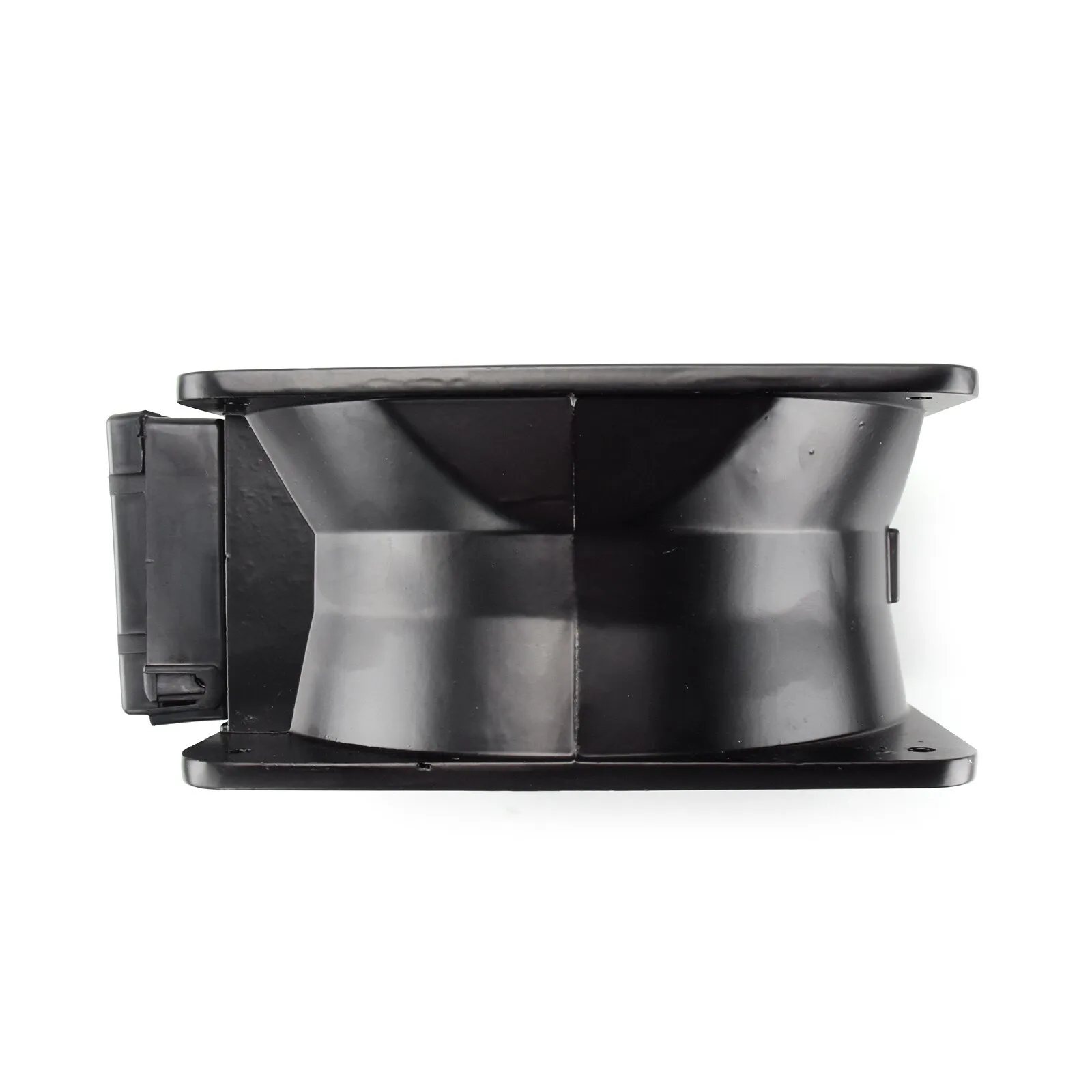

Dimensions: 180 x 180 x 90 mm
Rated Voltage: 220/230V AC
Frequency: 50/60 Hz

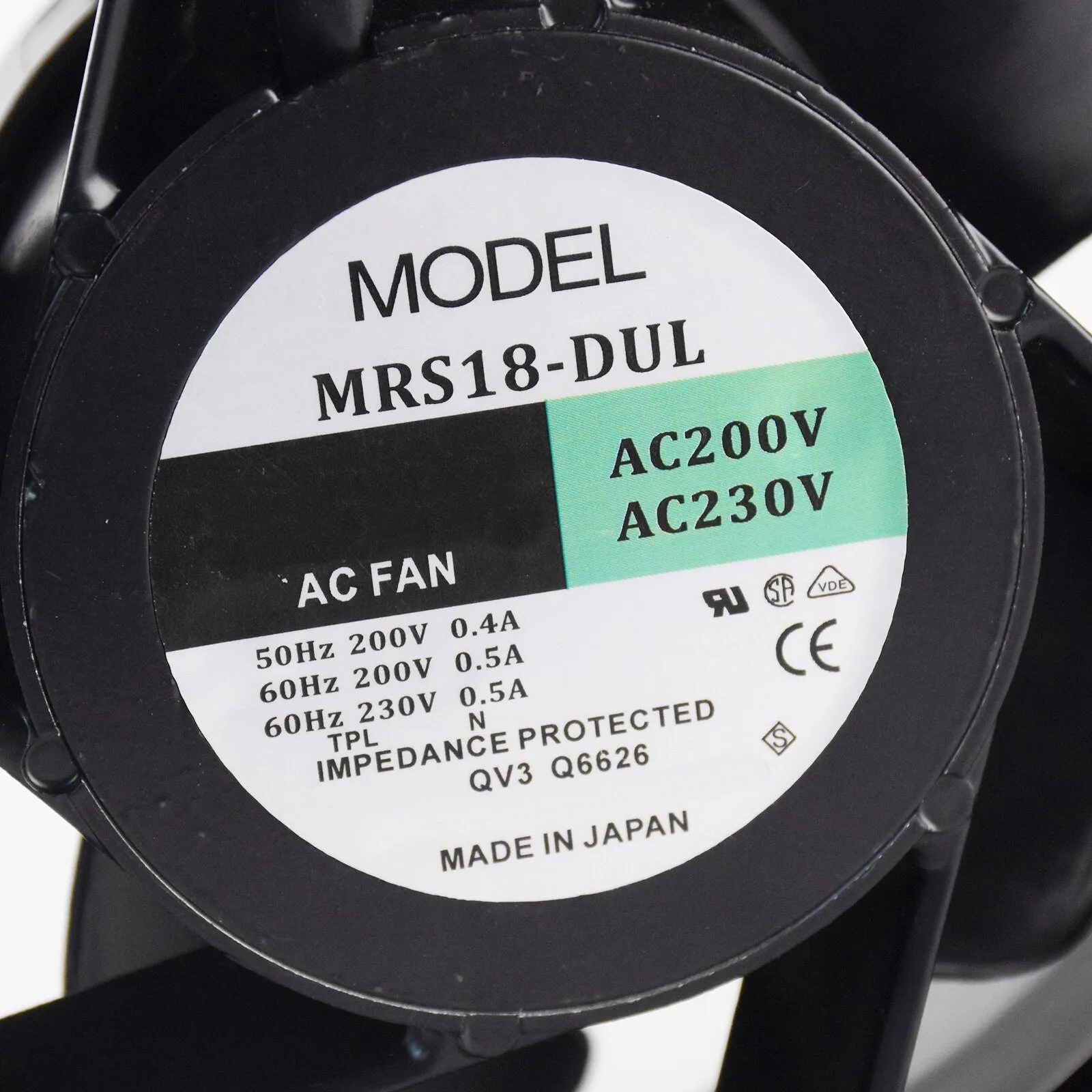

Rated Current: 0.4A (200V, 50Hz), 0.5A (200/230V, 60Hz)
Rated Input Power: 80W (200V, 50Hz), 115W (230V, 60Hz)
Rated Speed: 2850 RPM (50 Hz), 3350 RPM (60 Hz)
Airflow: 660 m³/h (50 Hz), 768 m³/h (60 Hz)
Static Pressure: 196 Pa (50 Hz), 245 Pa (60 Hz)
Noise Level: 56 dBA (50 Hz), 61 dBA (60 Hz)
Bearing Type: Not specified

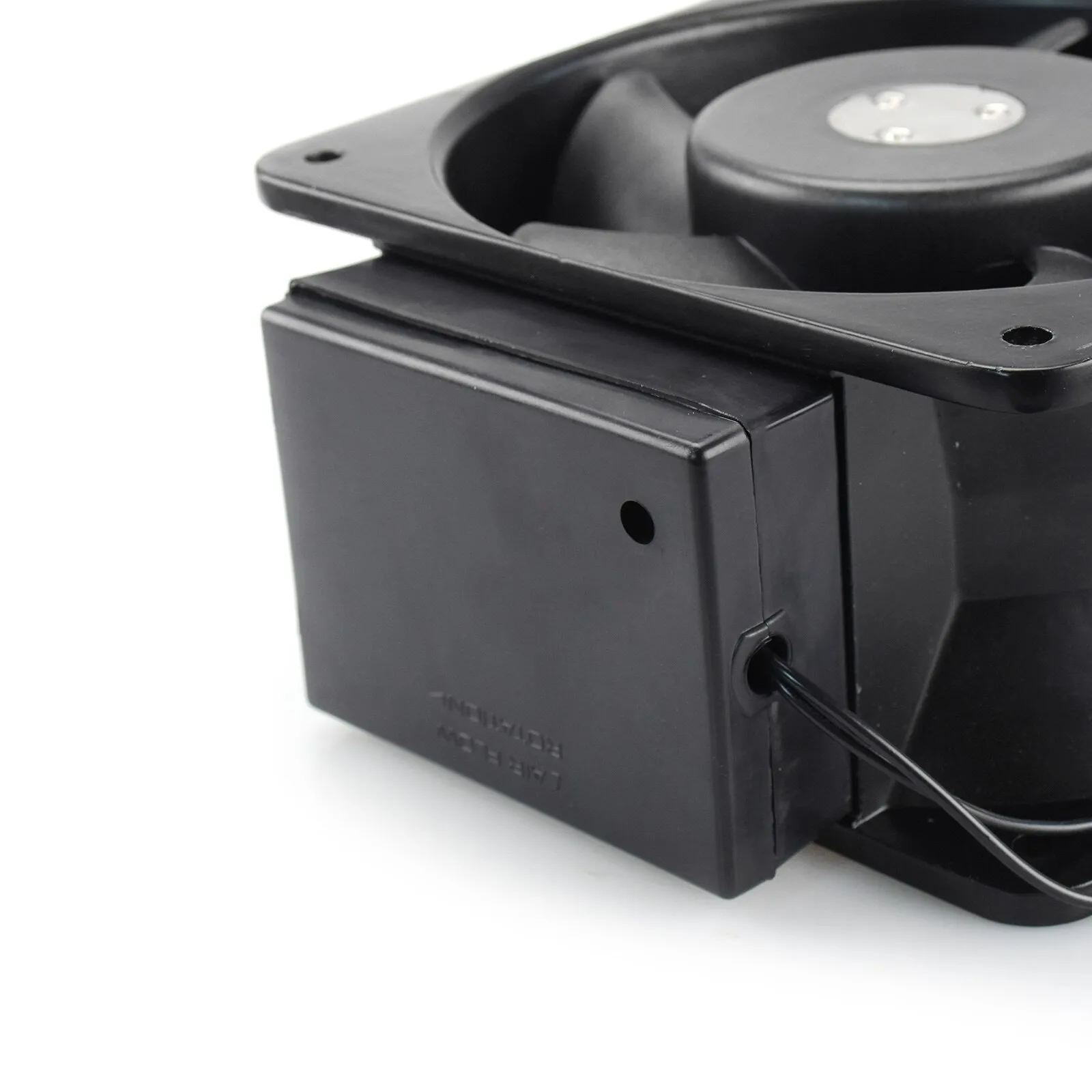

Termination: Terminal box
Life Expectancy: Not specified
Operating Temperature: -10 to 60°C
Application
The MRS18-DUL is suitable for a wide range of industrial cooling and ventilation applications. It is frequently used in machinery, control panels, and other electronic systems where maintaining a stable operating temperature is critical. Its robust design and high-performance metrics make it ideal for demanding environments where reliable air movement is a priority.
