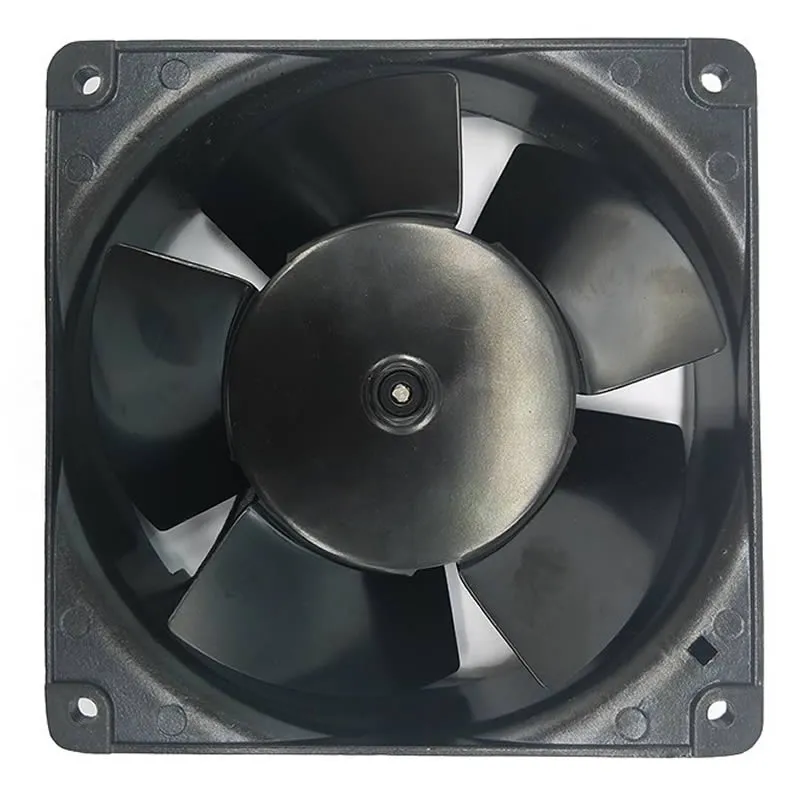

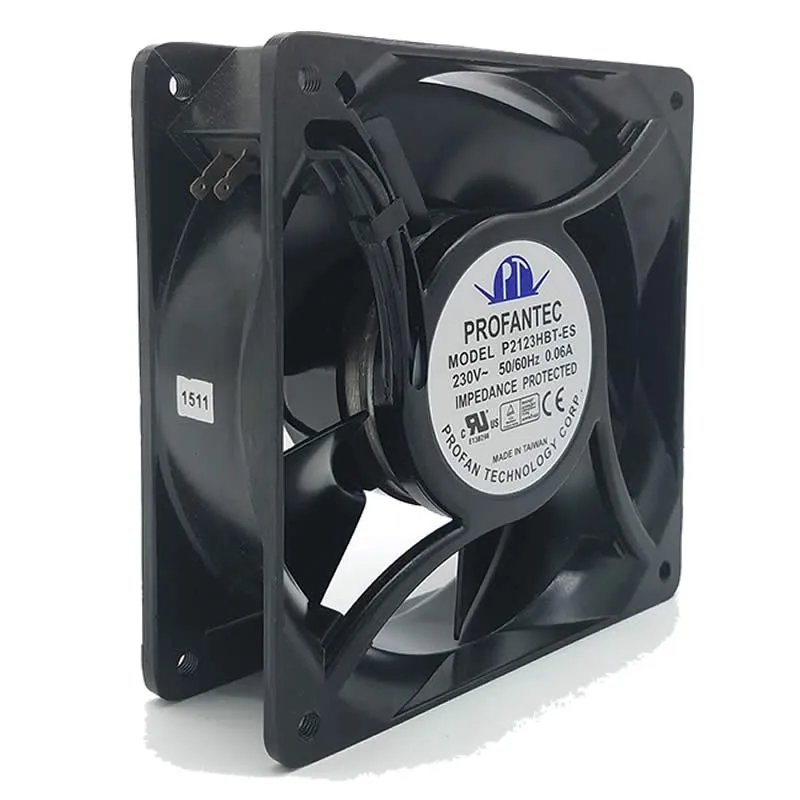

P2123HBT/P2123HBL/P2123HSL/P2123HST-ES PROFANTEC AC230V axial fan

Description

Model: P2123HBT-ES
P2123HBL-ES
P2123HSL-ES
P2123HST-ES

Frequency: 50/60HZ 230V plus or minus 10%
Power: 14/16W
Current: 0.065/0.06A
Speed: 2600/3100RPW
Air volume: 100/118CFM
Static pressure: 0.32/0.4
Noise: 45/47dB
Noise: 45/48DB
Installation size: center hole distance 104.8mm hole diameter: 4.3MM
Fan size: 120*120*38MM
Sash frame: aluminum frame
Fan blade: iron blade
Applicable ambient temperature: -10~70 degrees Celsius
Rated voltage: plus or minus 10%
Bearing: Ball bearing
Motor structure: external rotation AC motor
Motor Protection: Impedance Protection
Connection method: terminal or connecting line
Packing: 478g/Pcs, 40pcs/carton
