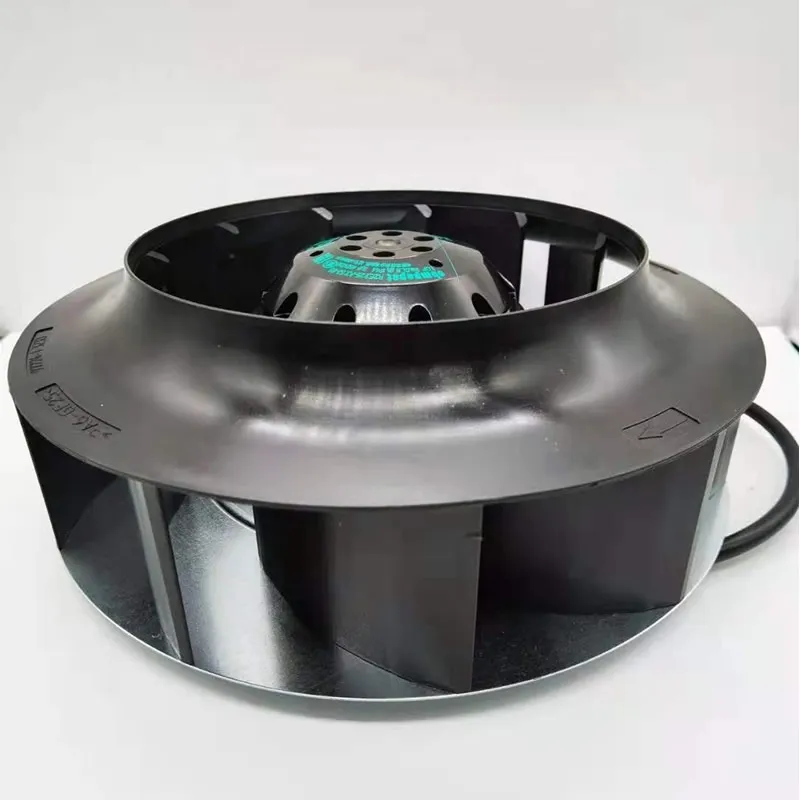

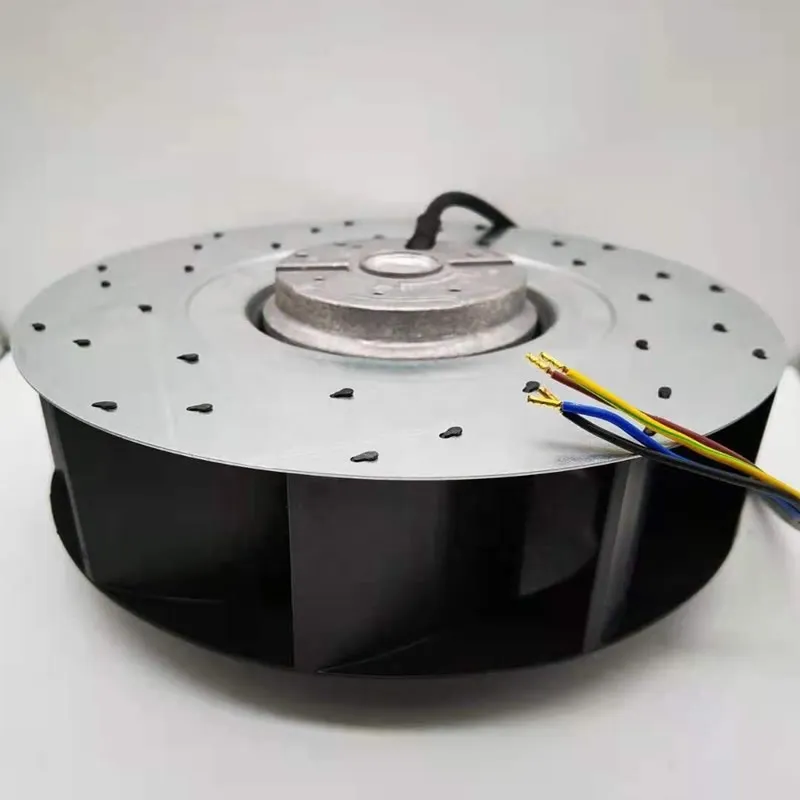

R2E225-AX52-05 ebmpapst AC centrifugal fan

Description

R2E225-AX52-05 AC centrifugal fan,backward-curved, single-intake,230VAC, 225x85mm, 660 CFM, 165W, 3000RPM, Ball, IP44
Type:R2E225-AX52-05
Motor: M2E068-DF
Manufacturer:ebmpapst
Category: Blowers & Centrifugal Fans
Current Type:AC
Operating Supply Voltage:230 VAC
Height:225 mm
Depth:225 mm
Series:R2E225
IP Rating:IP44
Nominal voltage: 230VAC
Frequency:50~60Hz
Speed: 2700~3000min-1
Power consumption:115~165W
Current draw: 0.51~0.72A
Capacitor:3µF
Capacitor voltage:450VDB
Weight：2.33 kg
Fan size：225 mm
Rotor surface： Painted black
Impeller material PA： plastic
