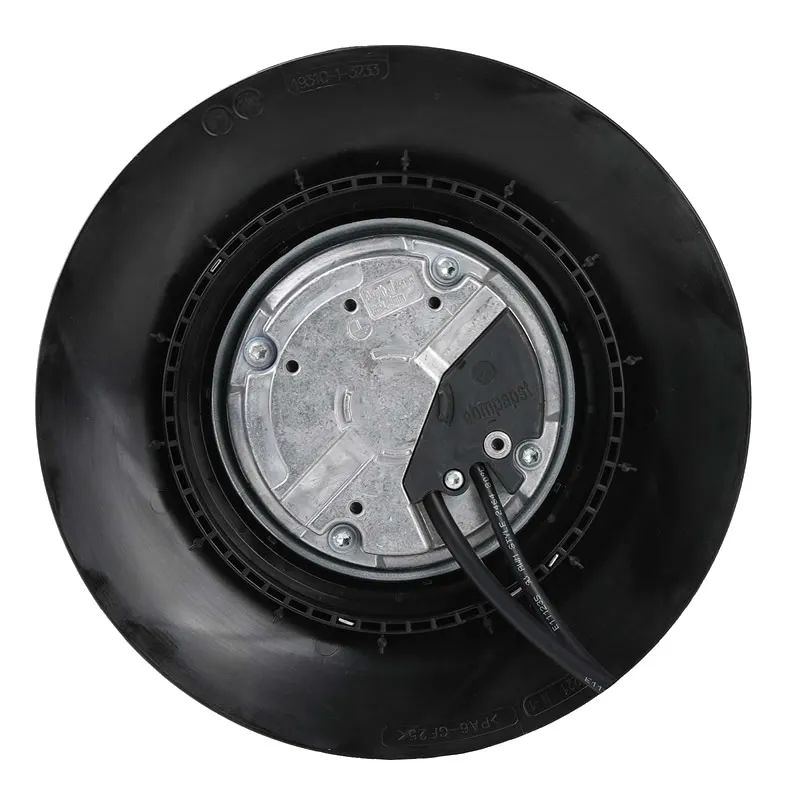

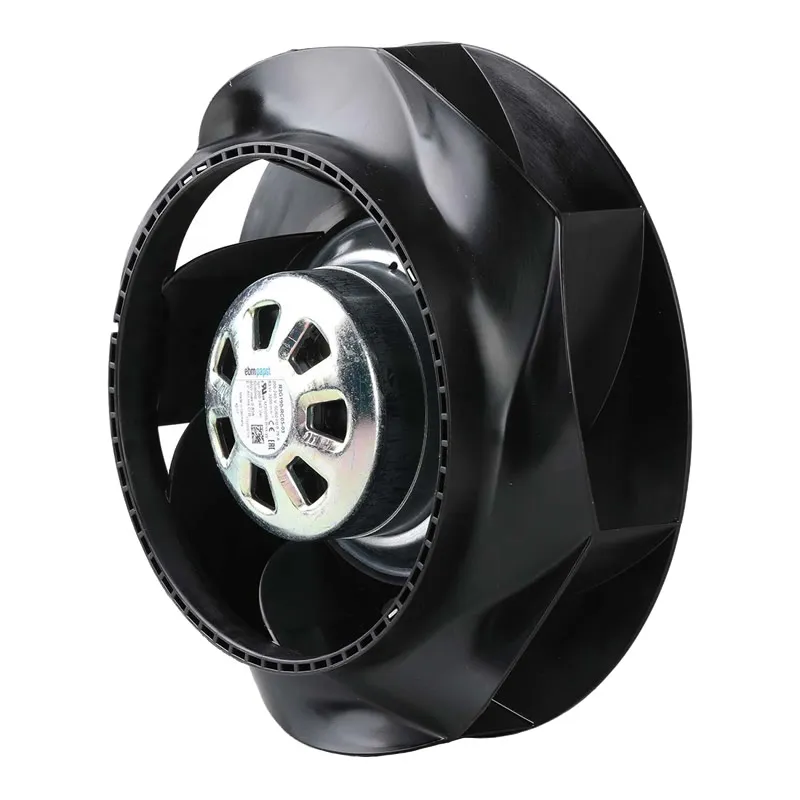

R3G190-RC05-03 ebmpapst EC centrifugal fan

$269.99

SKU: R3G190-RC05-03 Category: Brand:

Description

Model:R3G190-RC05-03
Brand:EBM PAPST
Air Flow:433 CFM
Bearing Type:Ball
Configuration:Round
Current Rating:0.75 A
Family Name:RadiCal Centrifugal Family
Fan Size:190 x 71.4mm
Frequency:50/60 Hz
Material:Aluminum
Maximum Operating Temperature:60 °C
Minimum Operating Temperature:-25 °C
Power Rating:83W
Rotation:CW
Series:R3G190 Series
Speed:3200 RPM
Termination:Wire Leads
Type:Round
Voltage Rating:230 VAC
Weight:1.1 kg

Additional information

Weight 1.5 kg
Type

R3G190-RC05-03

Motor

M3G055-BI

Nominal voltage

230VAC

Frequency

50/60Hz

Speed

3200min-1

Power input

83W

Current draw

0.75A

Min. ambient temperature

-25°C

Max. ambient temperature

60 °C

Size

190mm

Surface of rotor

Thick layer passivated

Material of electronics housing

Die-cast aluminium

Material of impeller

PA plastic

Number of bladeS

7

Type of protection

IP54

Mounting position

Any

Motor bearing

Ball bearing
