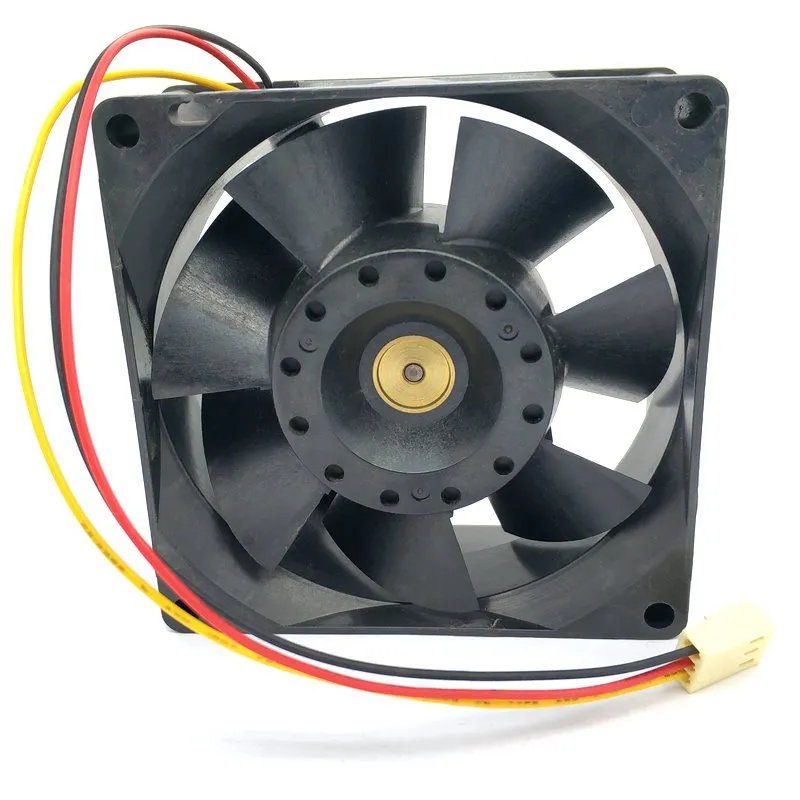

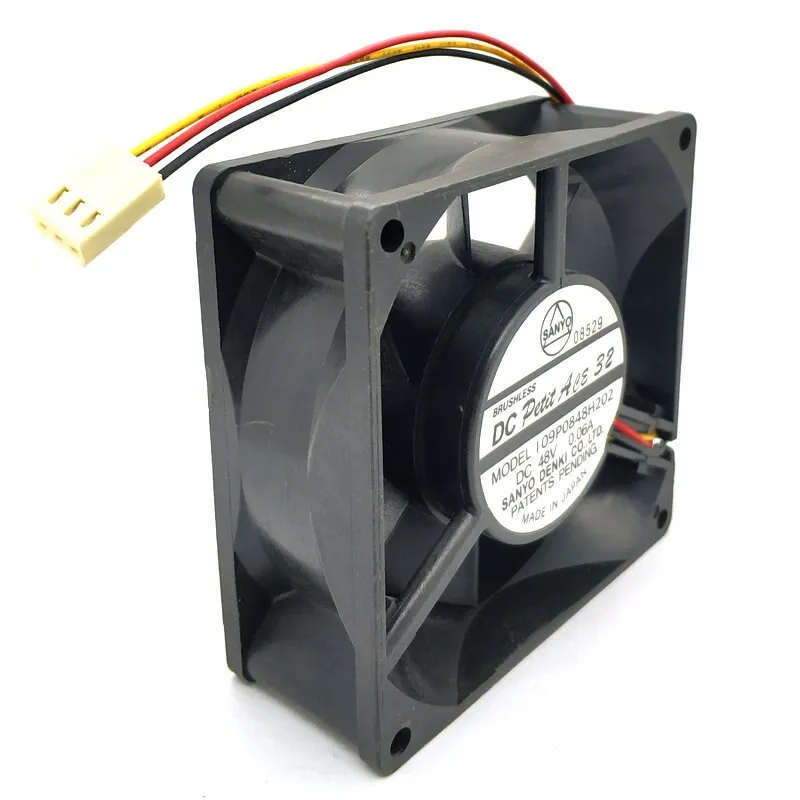

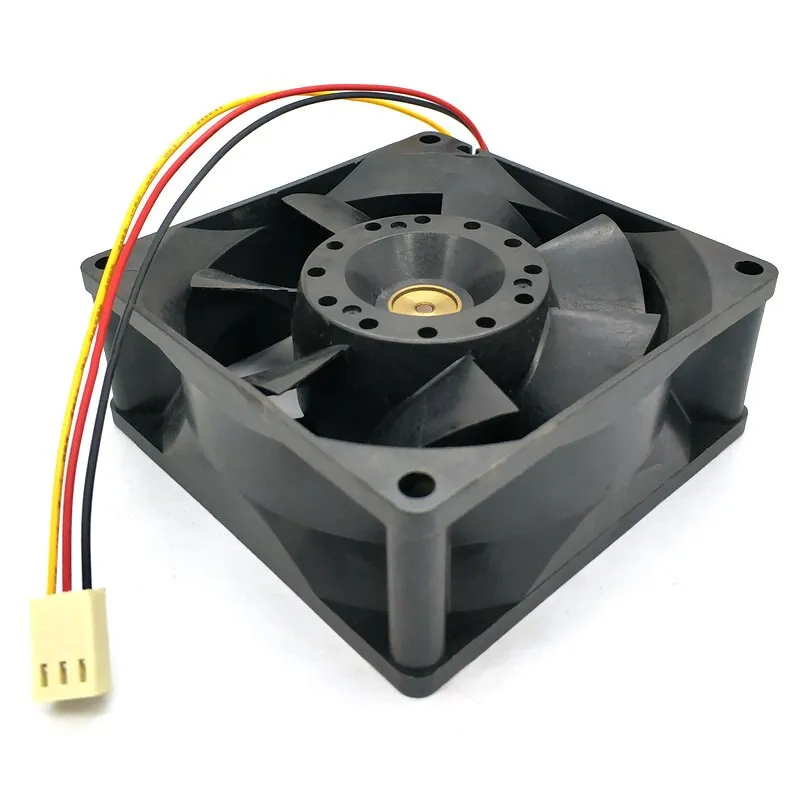

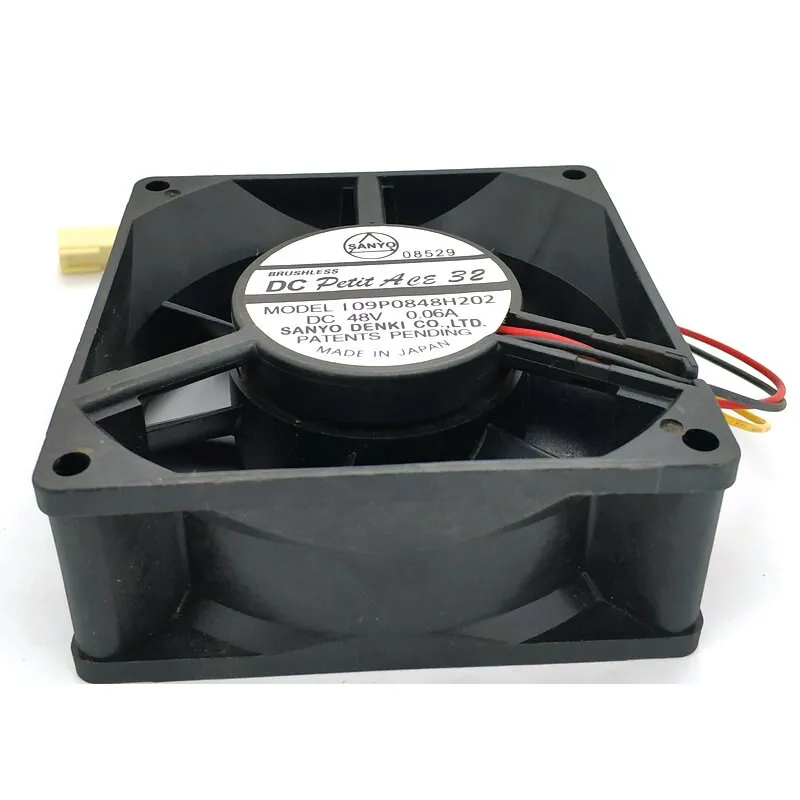

Sanyo 109P0848H202 48V 0.06A 8CM cooling Fan

Description

The SANYO DENKI 109P0848H202 is a high-performance DC fan measuring 80 x 80 x 32 mm, part of the San Ace 80 series. It operates at a rated voltage of 48 VDC, providing a strong airflow of 38.9 CFM and a static pressure of 29.4 Pa. Its design includes a plastic frame and impeller with a dual ball bearing system for long-term reliability.

109P0848H202 Fan Parameters
Model: 109P0848H202
Manufacturer: SANYO DENKI
Type: DC Fan
Dimensions: 80 x 80 x 32 mm
Rated Voltage: 48 VDC
Operating Voltage Range: 40.8 to 57.6 VDC
Rated Current: 0.06 A
Rated Input: 2.88 W
Rated Speed: 2900 RPM
Airflow: 38.9 CFM
Static Pressure: 29.4 Pa
Noise: 40 dB(A)
Bearing Type: Dual Ball Bearing
Termination: 3-wire lead
Life Expectancy: 60,000 h at 40°C
Mass: 150 g

Application
This fan is ideal for cooling a variety of applications including high-density electronic equipment, servers, and other devices where high performance and long-term reliability are critical.
