Description

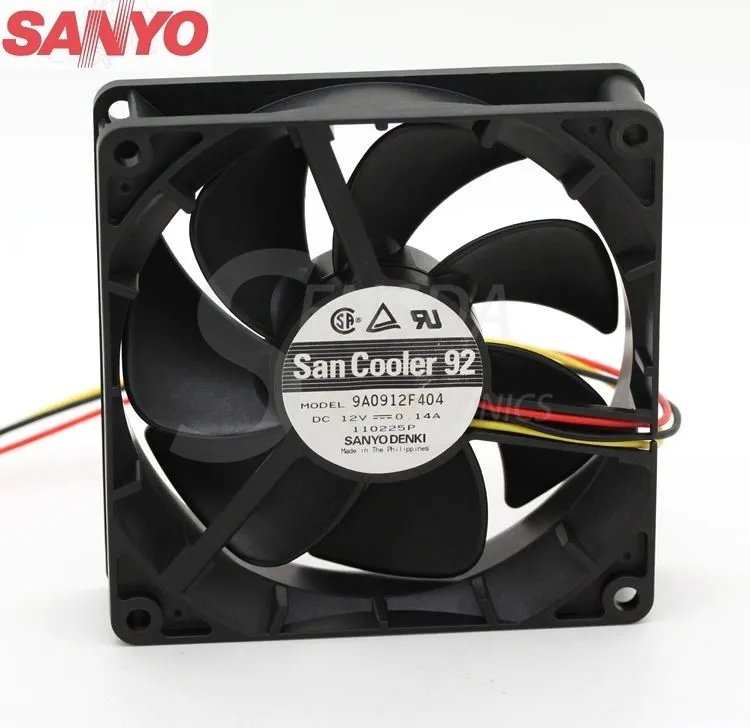

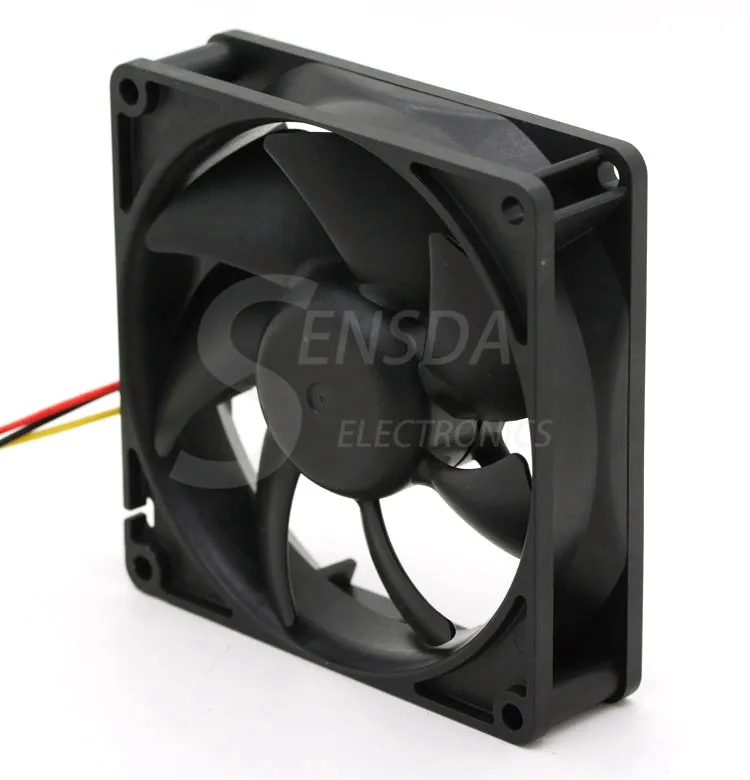

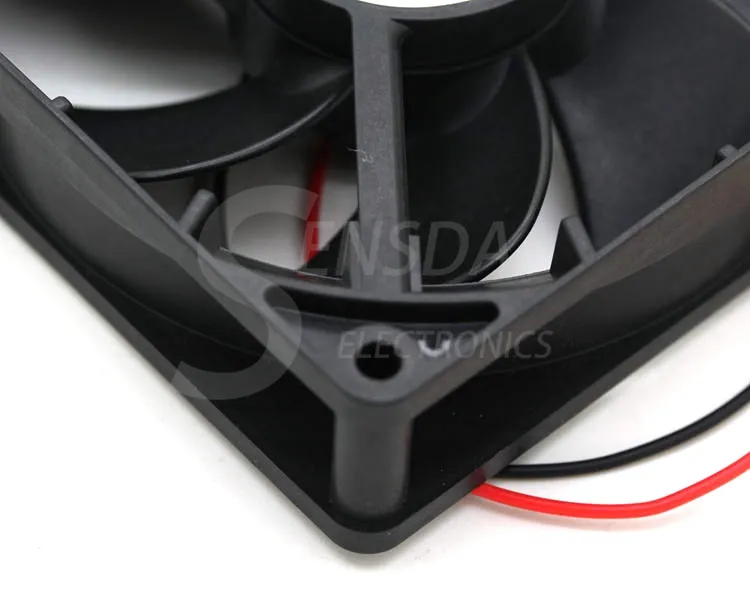

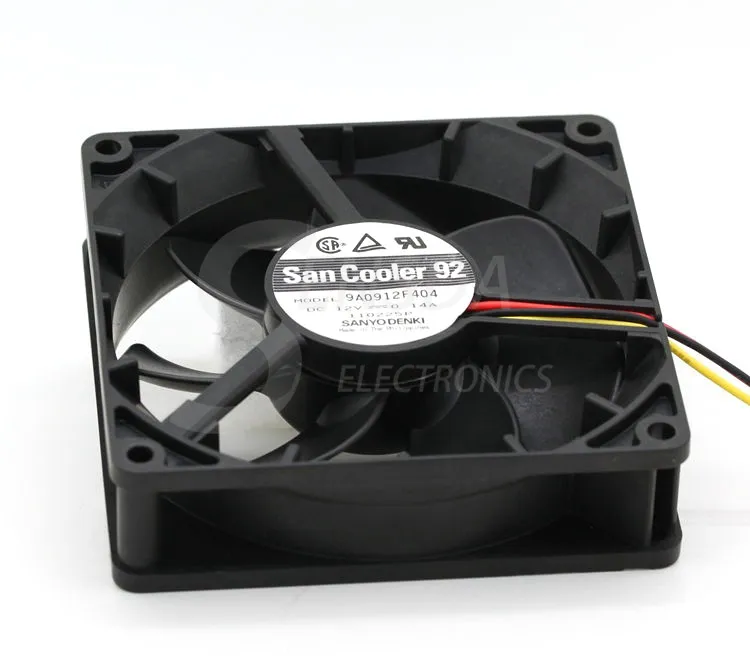

The Sanyo Denki 9A0912F404 is a high-performance DC Axial Fan measuring 92 x 92 x 25 mm, designed to provide exceptional cooling. This compact fan operates on 12V power, delivering a powerful airflow of 43.8 CFM (1.23 m³/min) and a static pressure of 0.129 in H2O. Featuring a durable Ball bearing system, it’s an ideal and reliable solution for a wide range of electronic and industrial applications that require efficient air circulation and a long operational life.
9A0912F404 Fan Parameters
Model: 9A0912F404
Manufacturer: Sanyo Denki
Type: DC Axial Fan
Dimensions: measuring 92 x 92 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 6 VDC to 13.8 VDC
Rated Current: 0.140 A
Rated Input Power: 1.68 W
Rated Speed: 2650 RPM
Airflow: 43.8 CFM (1.23 m³/min)
Static Pressure: 0.129 in H2O (32.1 Pa)
Noise Level: 34.0 dB(A)
Bearing Type: Ball
Features: Locked Rotor Sensor
Termination: 3 Wire Leads
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-1)
Operating Temperature: -20 to 70 °C
Storage Temperature: -30 to 70 °C (Non-condensing)
Expected Life: 40000 Hrs @ 60 °C
L10 Life Definition: 90% survival rate for continuous operation in free air at 60 °C, rated voltage.
Weight: 120 g
Noise Measurement: Tested at a distance of 1 m from the air inlet.
Application
The 9A0912F404 axial fan is typically used for general cooling, making it suitable for a wide range of electronic and industrial applications such as computers, power supplies, and control cabinets, where balanced airflow and pressure are essential.
