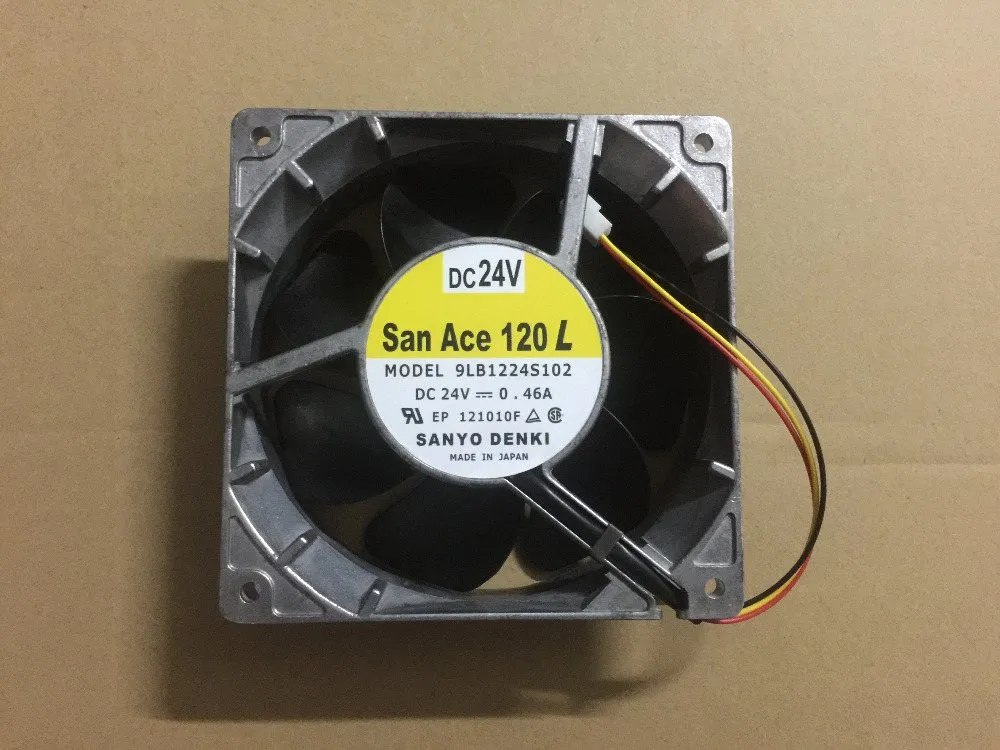

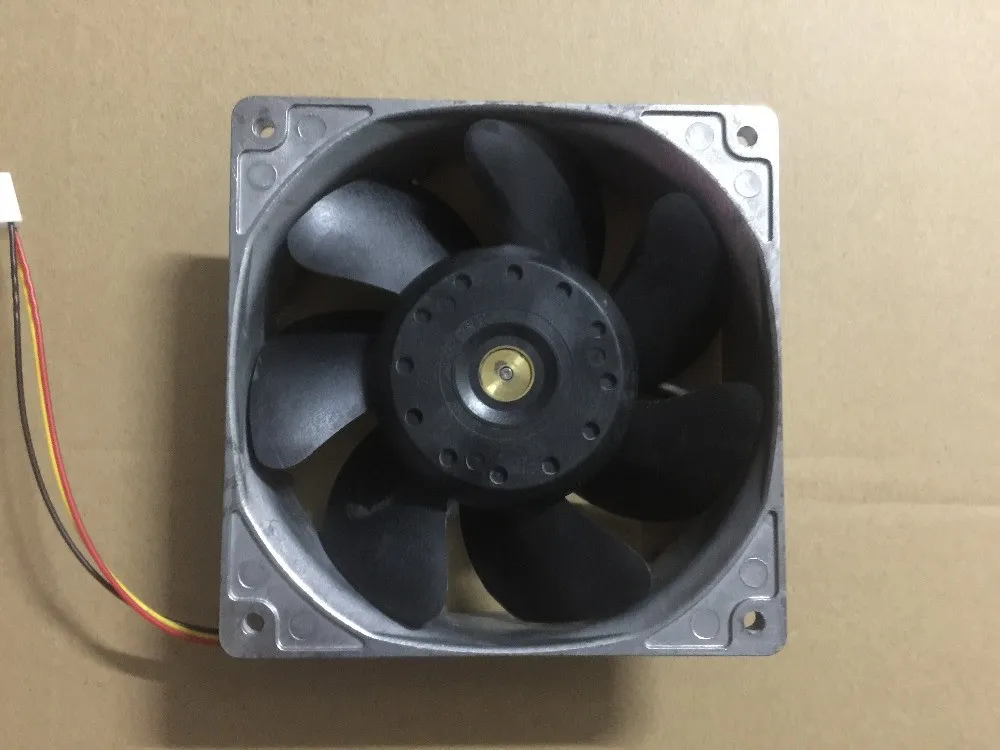

Sanyo 9LB1224S102 DC24V 0.46A 12cm inverter fan

Description

The Sanyo Denki San Ace 9LB1224S102 is a high-specification DC axial fan engineered specifically for applications requiring extended operational lifecycles and superior reliability. Belonging to the San Ace 120L 9LB series, this unit features Original Engineering designed to minimize maintenance intervals in critical industrial infrastructure. The fan utilizes a robust dual ball bearing system and a high-rigidity aluminum frame to ensure structural integrity under continuous thermal stress. With a rated life expectancy significantly exceeding standard models, it ensures Technical Compatibility with high-availability servers, communications equipment, and industrial inverters. The 120mm form factor delivers optimized airflow-to-noise ratios, making it suitable for cooling dense electronic enclosures. Procurement managers concerned with Lead Time for replacement parts in 24/7 operational environments rely on the 9LB series for its proven durability.

TECHNICAL SPECIFICATIONS:
Manufacturer: Sanyo Denki
Series: San Ace 120L (9LB Type)
Model Number: 9LB1224S102
Component Type: Long Life DC Axial Fan
Rated Voltage: 24V DC
Operating Voltage Range: 20.4V to 27.6V DC
Rated Current: 0.46 A
Rated Input Power: 11.04 W
Dimensions: 120mm x 120mm x 38mm
Max Airflow: 3.0 m³/min (106 CFM)
Max Static Pressure: 84 Pa (0.34 inchH2O)
Rated Speed: 2600 min⁻¹
Expected Life: 180,000 hours (L10 at 40°C)
Bearing System: Dual Ball Bearing
Frame Material: Aluminum
Impeller Material: Plastic (Flammability: UL94V-0)
Sensor Type: Pulse Sensor (Tachometer Output)
Operating Temperature Range: -10°C to +70°C
Sound Pressure Level: 42 dB(A)
Weight: 370 g

INDUSTRIAL APPLICATION:
This specific model is critical for thermal management in industrial inverters and uninterruptible power supplies (UPS) where fan failure results in immediate system shutdown. The extended service life of the 9LB1224S102 makes it the primary cooling solution for remote telecommunications base stations and medical instrumentation, effectively eliminating the need for frequent maintenance cycles in hard-to-access locations.
