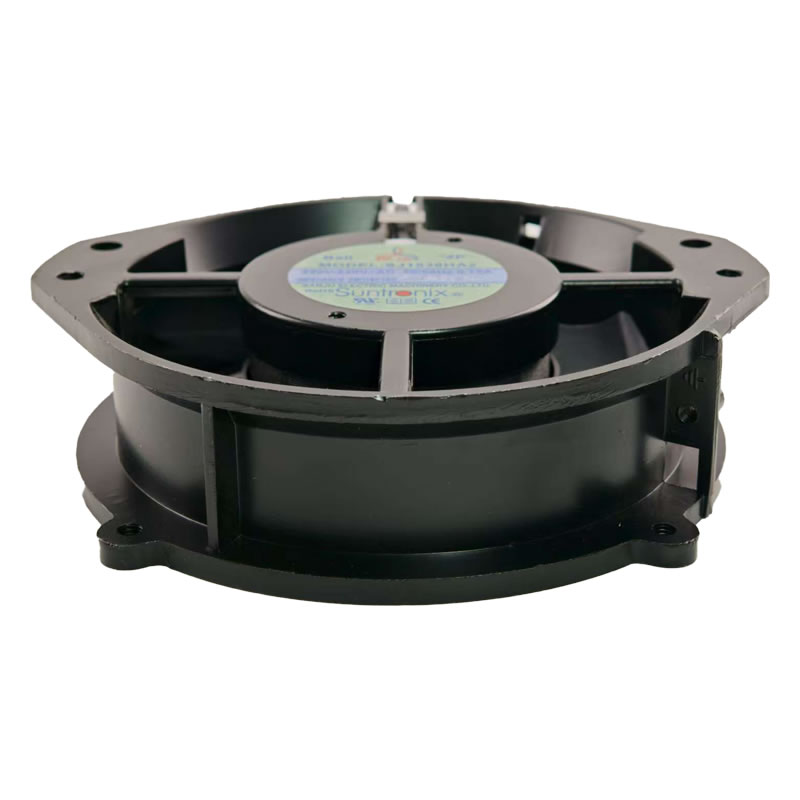

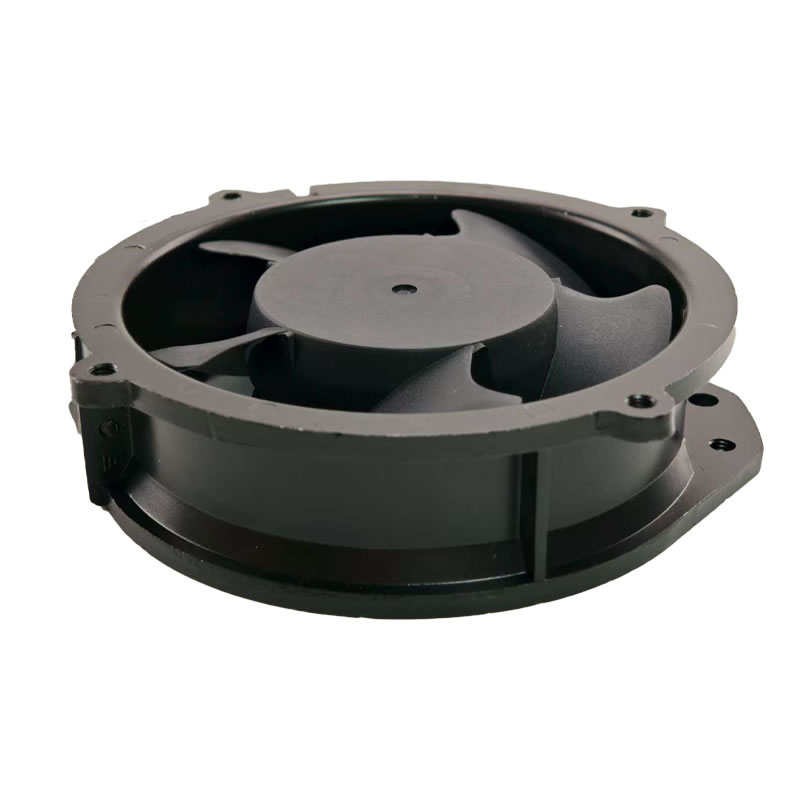

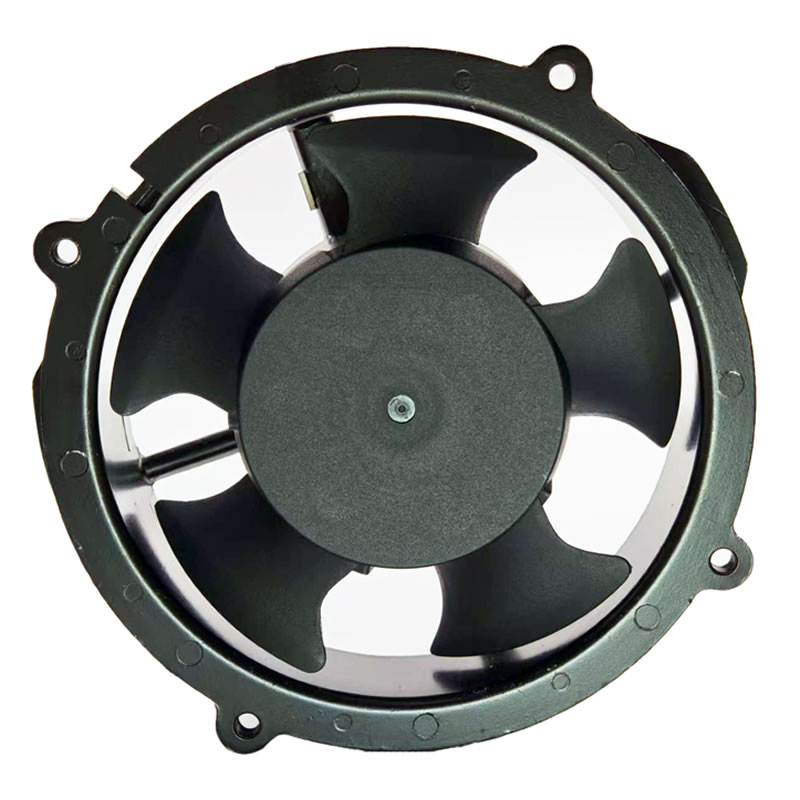

SJ1538HA2 SANJUN 220-240V AC axial fan

Description

The SANJUN SJ1538HA2 is an AC Axial Fan measuring 150x150x38mm. It operates on 220-240VAC at both 50Hz and 60Hz. At 50Hz, it draws 0.13A and consumes 22W, achieving 2600 RPM with an airflow of 84 CFM and a noise level of 45 d-BA. At 60Hz, the current draw is 0.09A, power consumption is 15W, speed is 3000 RPM, airflow is 100 CFM, and noise level is 51 d-BA. This fan uses a ball bearing system and connects via 2 wires, making it a reliable solution for various AC cooling applications.

SJ1538HA2 Fan Parameters
Model: SJ1538HA2
Manufacturer: SANJUN
Type: AC Axial Fan
Dimensions: 150 x 150 x 38 mm
Rated Voltage: 220-240 VAC
Power Connector: 2 wires

At 220-240V/50Hz:
Current Draw: 0.13 A
Power: 22 W
Fan Speed: 2600 RPM
Airflow: 84 CFM
Noise Level: 45 d-BA

At 220-240V/60Hz:
Current Draw: 0.09 A
Power: 15 W
Fan Speed: 3000 RPM
Airflow: 100 CFM
Noise Level: 51 d-BA

Bearing Type: Ball Bearing
Application: AC cooling.
