Description

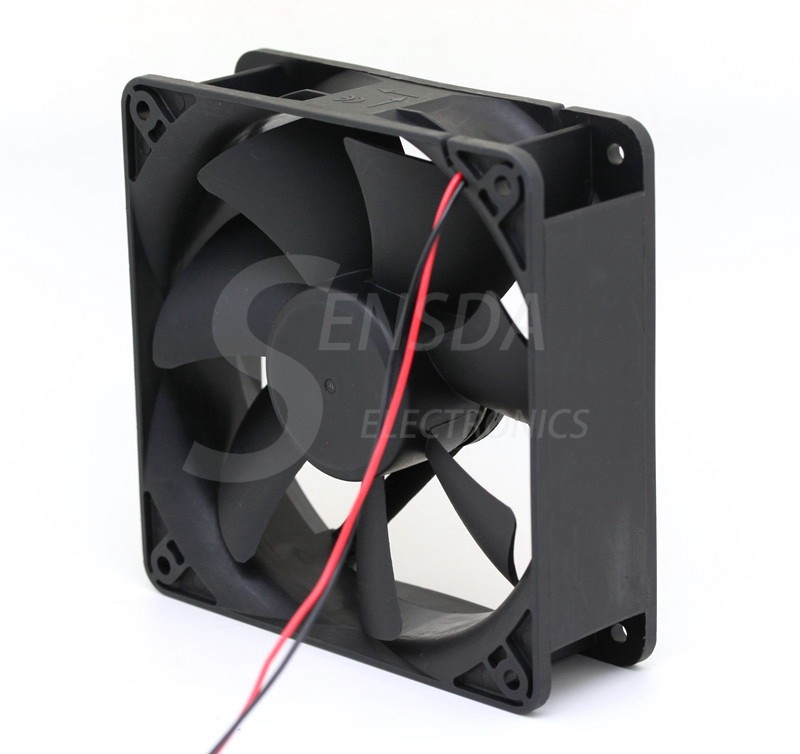

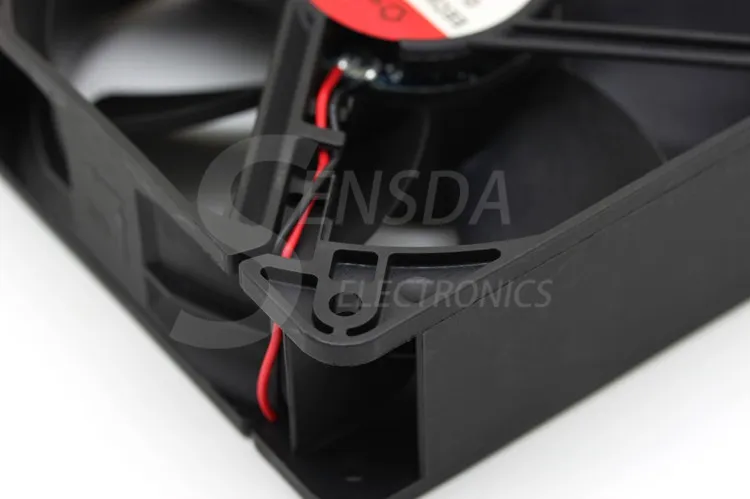

The Sunon EEC0382B3-0000-A99 is a high-performance DC axial fan measuring 120 x 120 x 38 mm. It operates on 24V DC, delivering an airflow of 93 CFM and a static pressure of 0.18 inch-H₂O at a rated speed of 2100 RPM. This fan features a durable ball bearing system and a low noise level of 37 dBA, making it a reliable and quiet cooling solution for various electronic applications. With a long life expectancy of 70,000 hours at 40°C, it is designed for continuous, reliable operation.
EEC0382B3-0000-A99 Parameters
Model: EEC0382B3-0000-A99
Manufacturer: Sunon
Type: DC Axial Fan
Operating Voltage: 24V DC
Current: 0.13A
Power: 3.1W
Airflow: 93 CFM (157.97 m³/h)
Static Pressure: 0.18 inch-H₂O (44.8 Pa)
Rotational Speed: 2100 RPM
Noise: 37 dBA
Dimensions: 120 x 120 x 38 mm
Weight: 214 g
Bearing: Ball Bearing
Life Expectancy: 70,000 hours at 40°C
Operating Temperature: -10 to 70°C

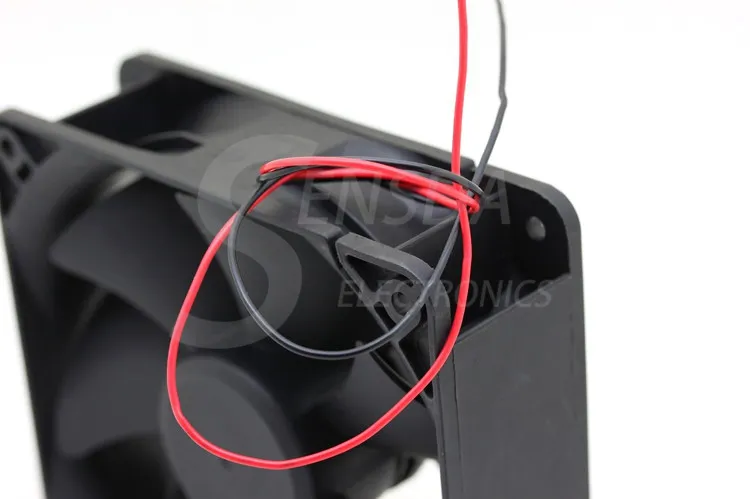

Termination: 2-wire leads
Application
The Sunon EEC0382B3-0000-A99 is suitable for cooling a variety of electronic equipment, power supplies, and inverters. Its low noise level and reliable performance make it a good choice for applications where both efficient cooling and quiet operation are important. The fan is also well-suited for server cabinets and other environments where dependable and long-lasting air circulation is required.
