Description

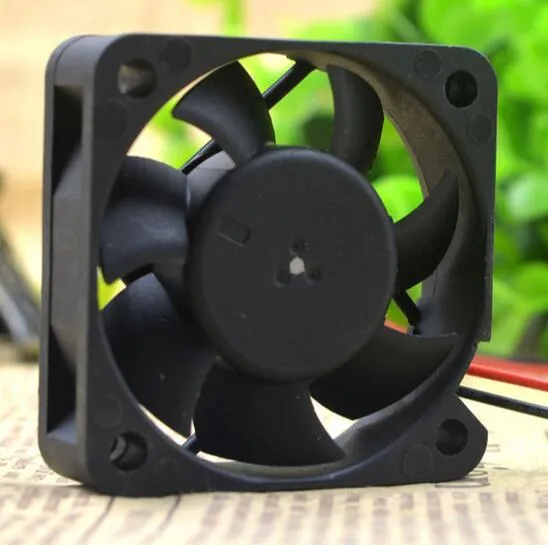

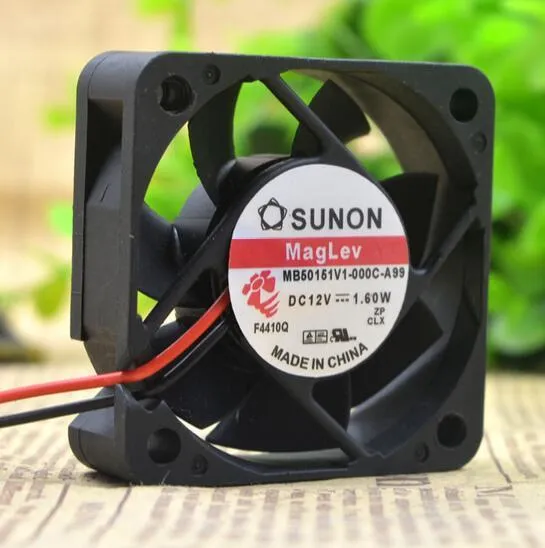

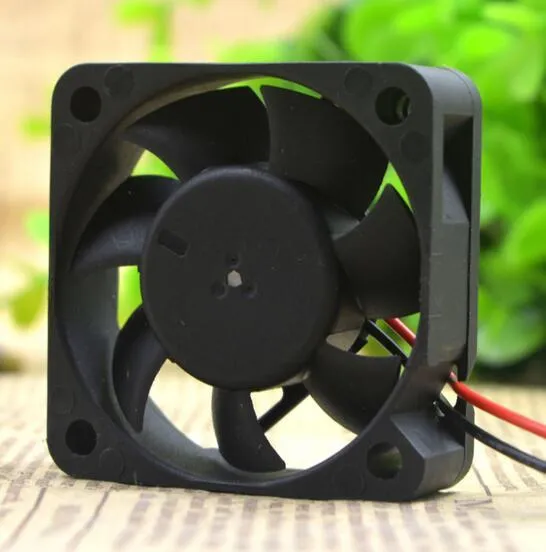

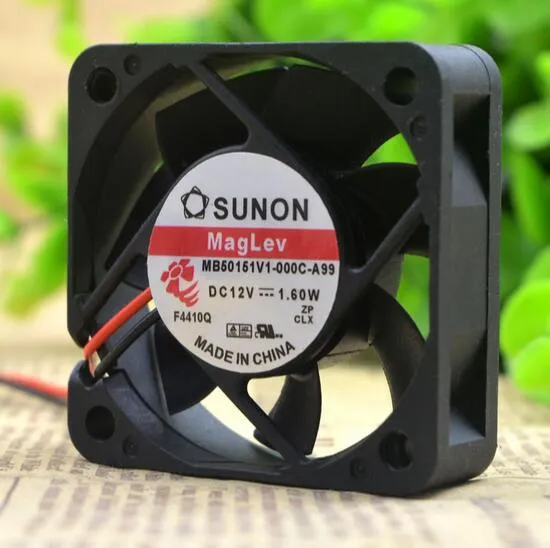

The SUNON MB50151V1-000C-A99 is a high-performance thermal management component utilizing Sunon’s proprietary MagLev (Magnetic Levitation) Vapo bearing technology. This 50mm DC axial fan is engineered to eliminate friction and vibration inherent in traditional motor designs, resulting in extended service life and superior acoustic performance. With a power density of 1.60W, this unit provides a high airflow-to-static pressure ratio, making it critical for compact industrial electronics requiring aggressive heat dissipation. The Vapo bearing system creates a magnetic flux that levitates the impeller, ensuring zero friction contact and exceptional resistance to dust ingress, guaranteeing Original Engineering reliability in harsh environments.
Technical Specifications:
Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
Model Number: MB50151V1-000C-A99
Product Type: DC Brushless Fan (MagLev)
Dimensions: 50 mm x 50 mm x 15 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 4.5 VDC to 13.8 VDC
Power Consumption: 1.60 W
Rated Current: 0.133 A
Speed: 5800 RPM ± 15%
Airflow: 17.0 CFM (Cubic Feet per Minute)
Static Pressure: 0.23 Inch-H2O
Noise Level: 37.0 dBA
Bearing System: Vapo Bearing (MagLev)
Termination: 2-Wire Lead (26 AWG)
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 60,000 Hours at 40°C
Insulation Class: Class A
Safety Certifications: UL, CUR, TUV, CE
Weight: 33 g
Industrial Application:
This fan is specifically calibrated for high-density electronic enclosures such as 1U server power supplies, projector cooling systems, and industrial automation control modules. The 15mm slim profile allows for integration into space-constrained chassis while the high RPM motor overcomes system impedance to prevent thermal throttling. The MagLev architecture ensures Technical Compatibility with equipment mounted in any orientation (vertical or horizontal) without bearing degradation. Please verify specific pin configurations for your maintenance requirements. Contact us for current Lead Time and bulk procurement options.
